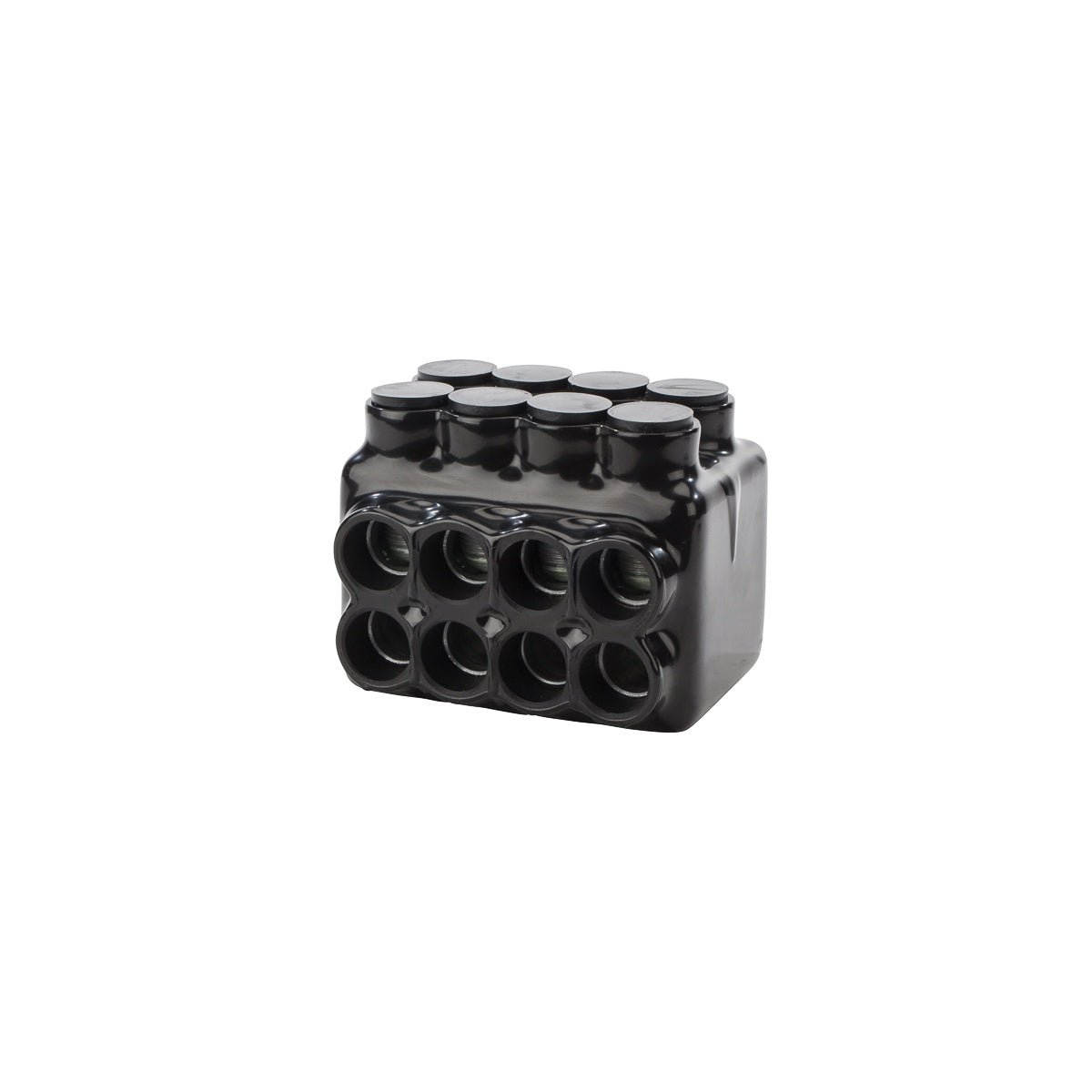

Polaris™ Stack Ins Multi-Tap 350 8 Port - Insulated Multi-Cable Connector

The Polaris™ Stack Ins Multi-Tap 350 8 Port is an insulated multi-cable connector designed for wire termination applications. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, dual-rated connectors for copper and aluminum conductors. This product supports Class B & C wire types and provides a versatile solution for wiring configurations in lighting solutions and wire and cable assemblies.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLDS350-8
• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum (6061-T6 Alloy)
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 4.65 in x 3.91 in x 3.52 in
• Product Weight: 2.64 lbs
• Environmental Conditions: Rated for 90°C operating temperature, cold temperature rated to -45°C
• Voltage Rating: 600V (UL Listed per UL486A/B)
• Wire Range: 350 MCM - 6 AWG

Features

• UL 486B Listed for Copper or Aluminum Class B and C conductors
• Pre-insulated with high dielectric strength plastisol providing abrasion, chemical, and UV resistance
• Dual side wire entry ports with removable caps for flexible installation
• Stacked multi-tap design for multiple wiring configurations
• Eliminates the need for taping or additional insulation materials
• Tough plastisol insulation suitable for harsh vibration-prone environments
• UV resistant black plastisol that will not support combustion
• Can be customized for direct burial and submersible applications (UL Listed Custom Special)
• Pre-filled with oxide inhibitor to ensure reliable electrical connections
