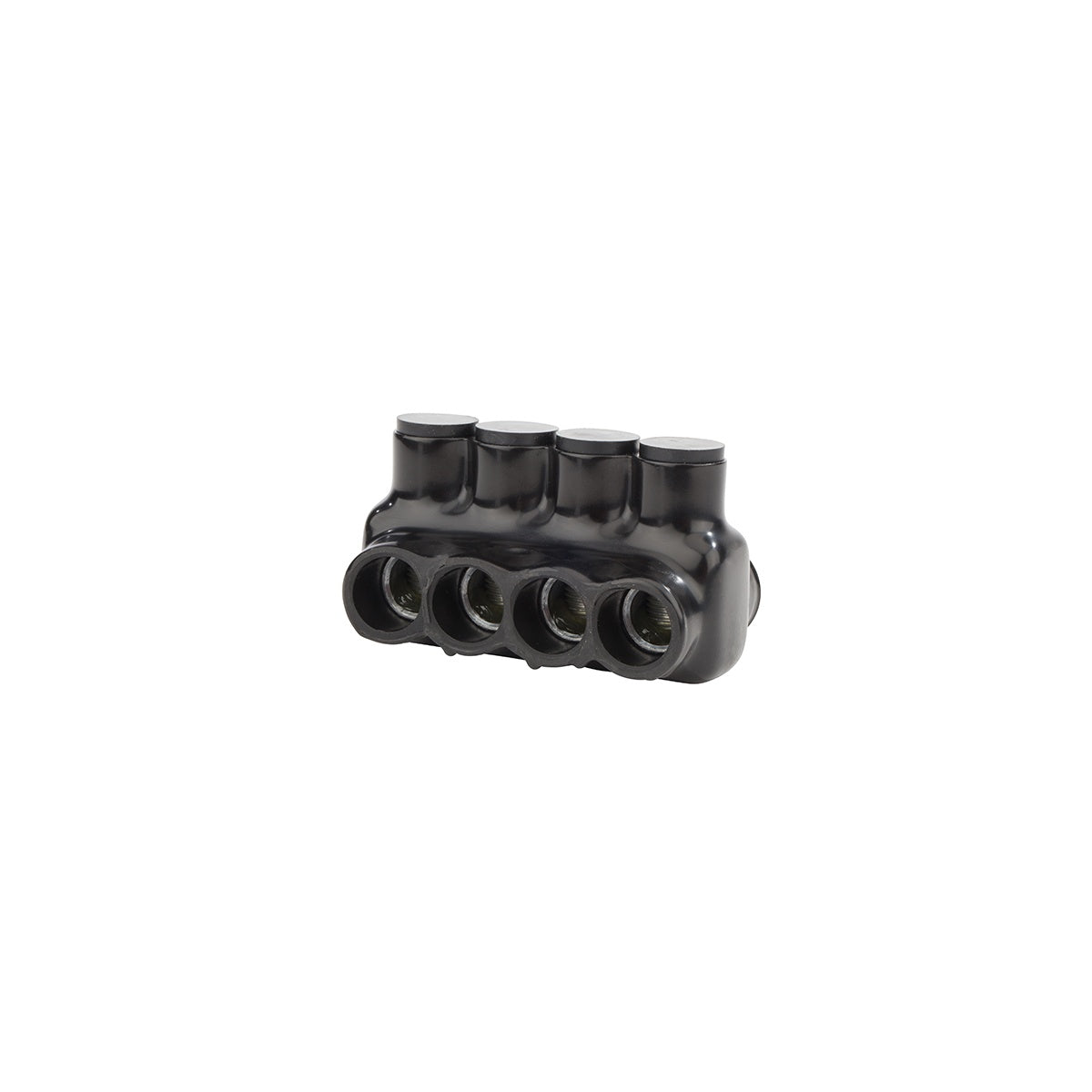

Polaris‚Ñ¢ Ins Multi-Tap 250 4 Port DSE - Wire Termination Connector

The Polaris™ Insulated Multi-Tap 250 4 Port Dual Sided Entry connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector is suitable for use by electrical distributors and switchgear suppliers requiring insulated, multi-port wire connectors that support Class B & C wire types. It is UL listed for 600V per UL486A/B specifications and dual rated for 90°C copper and aluminum conductors.

Specifications

• Manufacturer Part #: IPLD250-4
• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90¬∞C
• Dimensions (L x W x H): 3.8 in x 2.28 in x 2.18 in
• Product Weight: 0.4700 lb
• UL Listed: UL486A/B for 600V
• Cold Temperature Rated to -45¬∞C
• UPC: 662381923028

Features

• Dual sided entry with removable caps for ease of installation and maintenance
• Pre-filled with oxide inhibitor to ensure long-term reliable conductivity
• 5/16 internal hex pressure screw for secure wire clamping
• High dielectric strength insulation that is abrasion, chemical, and UV resistant
• Suitable for both copper and aluminum conductors
• Compact design optimized for multi-port wire termination in electrical distribution and lighting solutions
