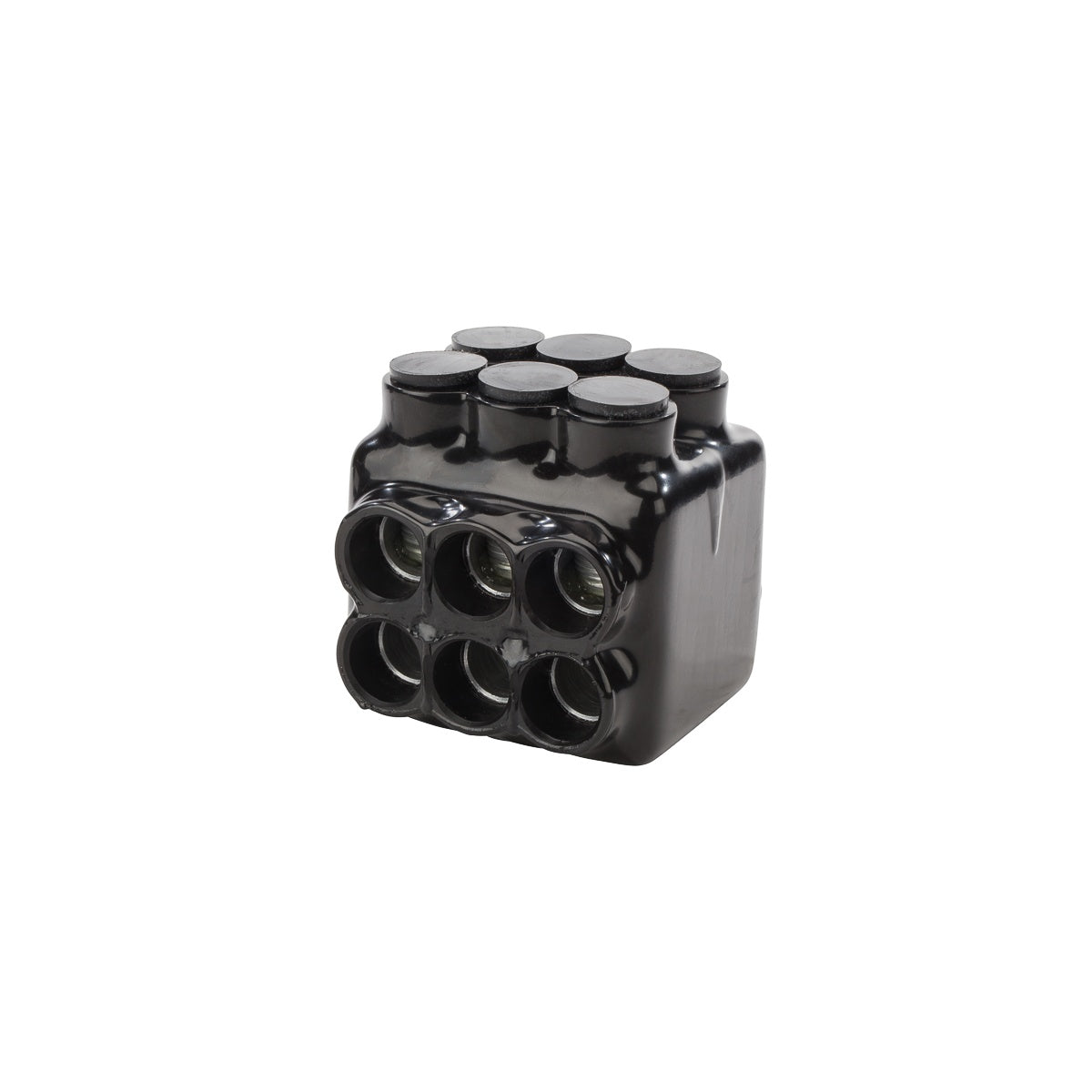

Polaris‚Ñ¢ Stack Ins Multi-Tap 750 6 Port Wire Termination Connector

The Polaris‚Ñ¢ Stack Insulated Multi-Tap 750 6 Port connector is designed for wire termination applications, suitable for electrical distributors and switchgear suppliers requiring reliable multi-cable connections. This insulated connector accommodates wire sizes from 750 to 250 MCM and is dual rated for both copper and aluminum Class B and C conductors, making it a versatile choice for lighting solutions and wire and cable installations.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLDS750-6
• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Rating: 90¬∞C
• Dimensions (L x W x H): 4.95 in x 4.97 in x 4.92 in
• Product Weight: 3.93 lbs
• Wire Range: 750 KCMIL - 250 KCMIL

Features

• Pre-filled with oxide inhibitor for improved conductivity and corrosion resistance
• Dual side entry with removable caps allows wire access from either side
• High dielectric strength plastisol insulation provides abrasion, chemical, and UV resistance
• Cold temperature rated to -45¬∞C for harsh environment applications
• UL 486B listed for copper and aluminum conductors
• Eliminates the need for taping or additional insulation
• Tough impervious plastisol withstands vibration-prone conditions
• Customizable UL listed direct burial and submersible options available
