Polaris™ HD Ins Multi-Tap 750 6 Port DSE
SKU: #304877
Part: #IPLDH750-6
UPC: 662381926531
Polaris™ HD Ins Multi-Tap 750 6 Port DSE
SKU: #304877
Part: #IPLDH750-6
UPC: 662381926531
Total Price: $411.79 per each Sold in increments of 1 each
Description

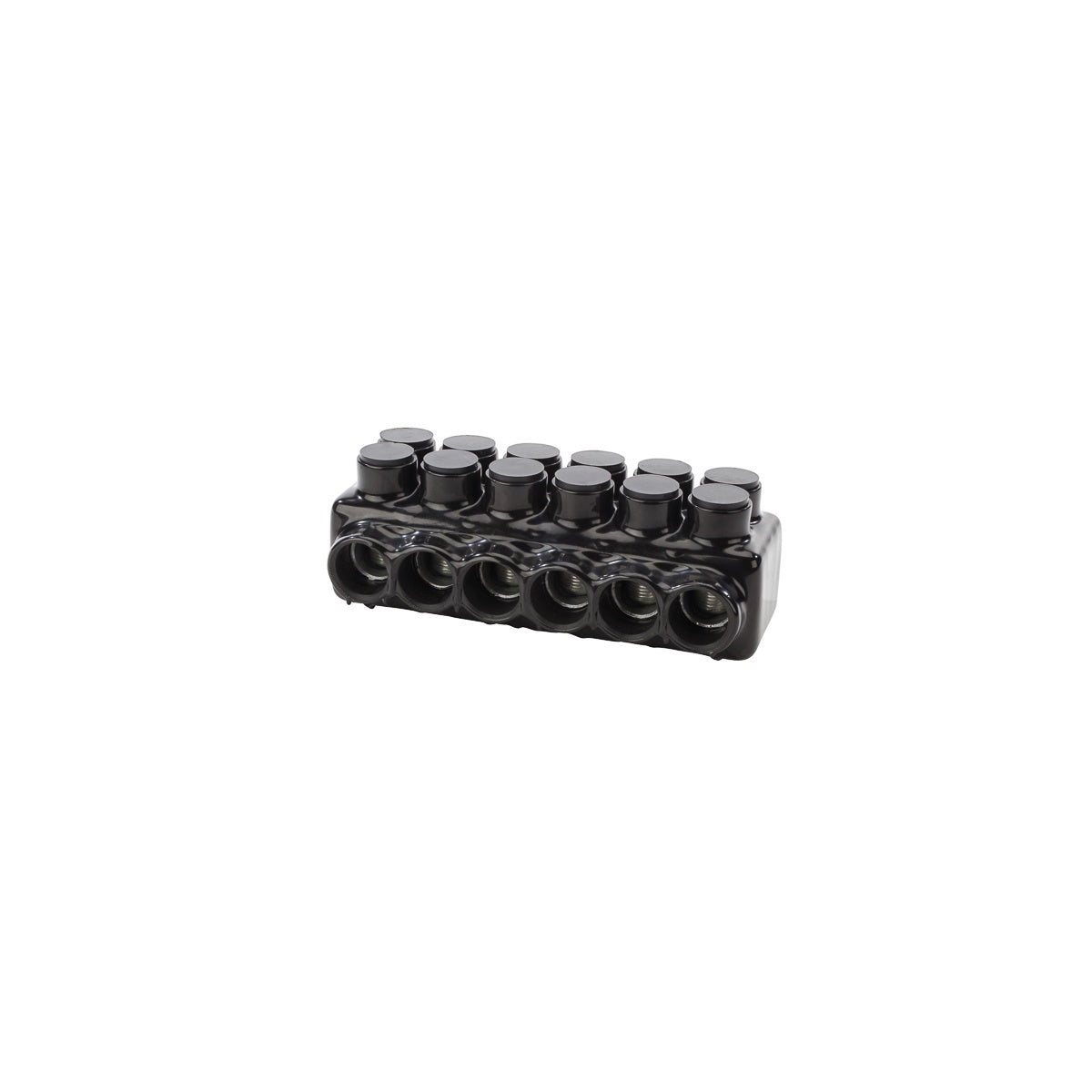

Polaris™ HD Ins Multi-Tap 750 6 Port DSE – Insulated Multi-Cable Connector
The Polaris™ HD Insulated Multi-Tap 750 6 Port Dual Side Entry connector by NSI Industries is designed for wire termination applications in electrical distribution and lighting solutions. This insulated multi-cable connector accommodates Class B and C wire types and supports a wide range of conductor sizes up to 750 MCM. Ideal for use by electrical distributors and switchgear suppliers, it provides a reliable, pre-insulated connection with dual entry ports for versatile wiring configurations.
Specifications
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 6
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated 90°C
- Dimensions: 9.23 in (Length) x 4.46 in (Width) x 3.3 in (Height)
- Product Weight: 4.95 lbs
- Manufacturer Part #: IPLDH750-6
- Voltage Rating: 600V
Features
- UL 486B Listed for copper or aluminum Class B and C conductors
- Pre-insulated with high dielectric strength plastisol for electrical safety
- Dual side entry ports for flexible wiring access and installation
- Removable plugs to close unused wire entry ports
- Abrasion and chemical resistant with UV-resistant black plastisol coating
- Cold temperature rated to -45°C for harsh environments
- Eliminates the need for additional insulation such as tape
- Suitable for multiport, in-line, and stacked wiring configurations
- Not recommended for fine-stranded, flexible wire
