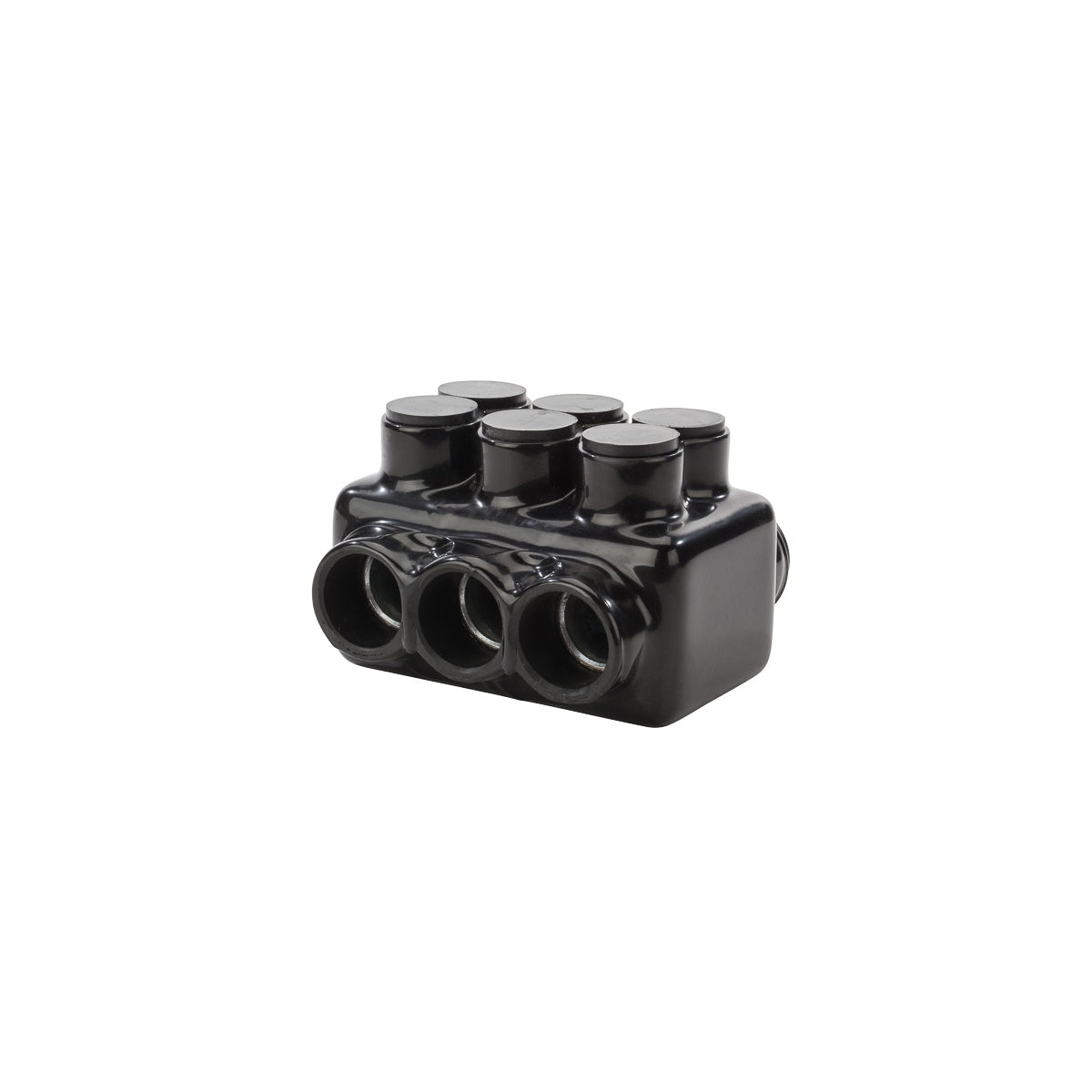

Polaris‚Ñ¢ HD Ins Multi-Tap 750 3 Port DSE Wire Termination Connector

The Polaris‚Ñ¢ HD Insulated Multi-Tap 750 3 Port Dual Side Entry connector by NSI Industries is designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers. This connector accommodates Class B & C wire types and supports copper or aluminum conductors, providing a reliable and insulated multi-cable connection solution for lighting solutions, wire and cable systems, and electrical installations.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLDH750-3
• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 3
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions Rating: 90¬∞C
• Dimensions (L x W x H): 4.95 in x 4.46 in x 3.3 in
• Product Weight: 2.52 lbs

Features

• UL 486B Listed for copper or aluminum Class B and C conductors
• Pre-insulated with high dielectric strength plastisol for electrical safety
• Dual side entry with removable access plugs for flexible wiring configurations
• Abrasion and chemical resistant, UV resistant black plastisol finish
• Cold temperature rated to -45¬∞C for harsh environmental conditions
• Eliminates the need for additional taping or insulating materials
• Designed for use in vibration-prone and demanding electrical environments
• Rated for 600V, 90¬∞C operation
