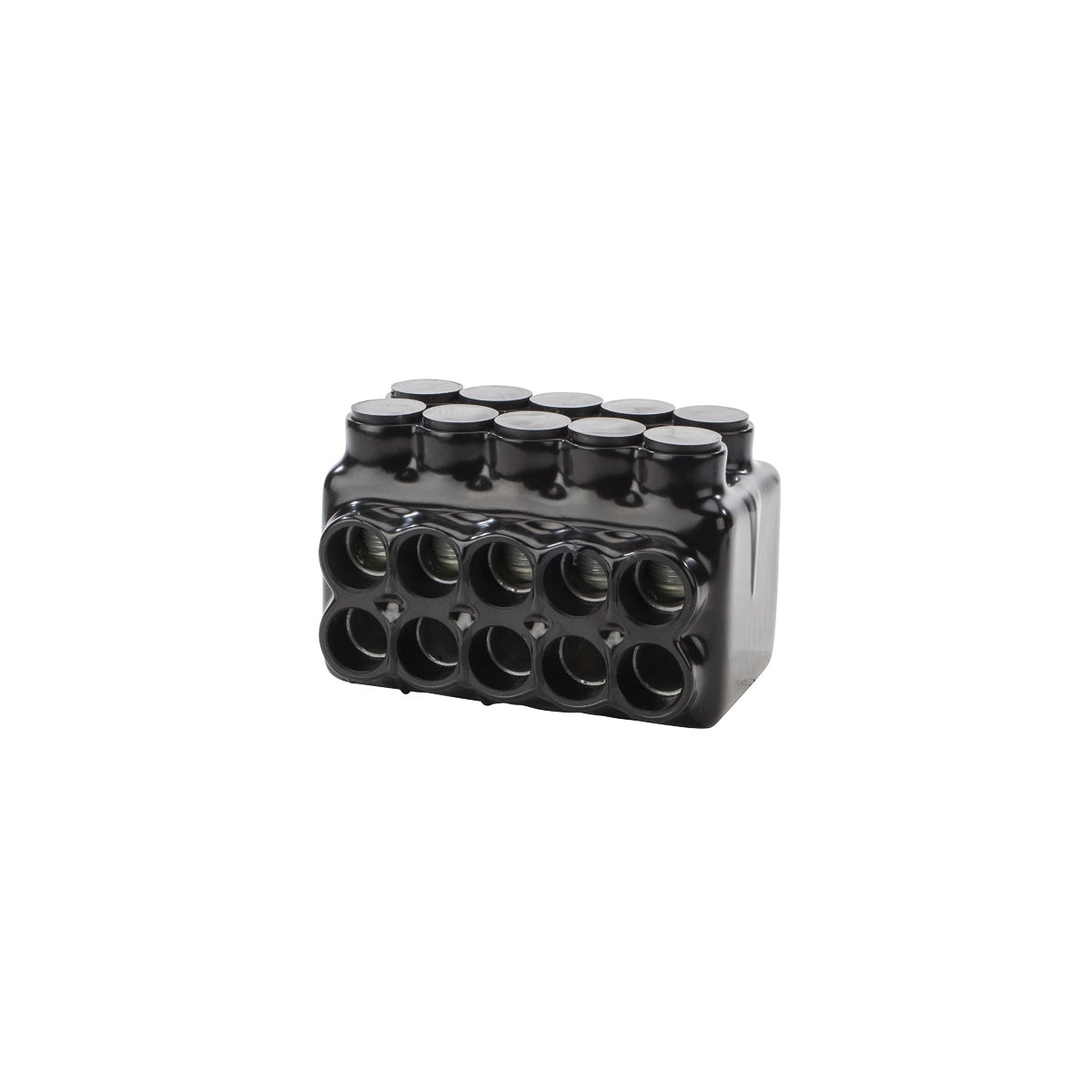

Polaris™ Stack Ins Multi-Tap 500 10 Port
SKU: #304911
Part: #IPLDS500-10
UPC: 662381951717
Polaris™ Stack Ins Multi-Tap 500 10 Port
SKU: #304911
Part: #IPLDS500-10
UPC: 662381951717
Total Price: $422.15 per each Sold in increments of 1 each
Description
Polaris™ Stack Ins Multi-Tap 500 10 Port Wire Connector
The Polaris™ Stack Insulated Multi-Tap 500 10 Port connector is designed for wire termination applications requiring reliable and versatile electrical distribution. Manufactured by NSI Industries, this insulated multi-cable connector block supports wire entry from either side, making it suitable for compact wiring configurations in panels and tight spaces. It is ideal for electrical distributors and switchgear suppliers needing robust wire and cable connection solutions that accommodate Class B and C conductors.
Specifications
- Application: Wire Termination
- Number of Conductors: 10
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 6.38 in x 4.71 in x 4.28 in
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90 °C
- Product Weight: 4.62 lbs
- Number of Poles: 1
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS500-10
- Voltage Rating: 600V
- Temperature Rating: -45 °C to 90 °C
- UL Listed: UL 486B for Copper or Aluminum conductors
Features
- Pre-insulated with high dielectric strength plastisol for insulation and protection
- Wire entry ports on both sides with removable plugs for unused ports
- Abrasion, chemical, and UV resistant black plastisol finish
- Cold temperature rated to -45 °C, suitable for harsh environments
- Dual rated for use with copper and aluminum cables, providing installation flexibility and cost savings
- Stacked wire holes for compact and efficient wiring in tight spaces
- Eliminates need for additional taping or insulation materials
- Designed to withstand vibration-prone conditions
