Polaris™ Stack Ins Multi-Tap 500 4 Port
SKU: #304922
Part: #IPLDS500-4
UPC: 662381789051
Polaris™ Stack Ins Multi-Tap 500 4 Port
SKU: #304922
Part: #IPLDS500-4
UPC: 662381789051
Total Price: $256.92 per each Sold in increments of 1 each
Description

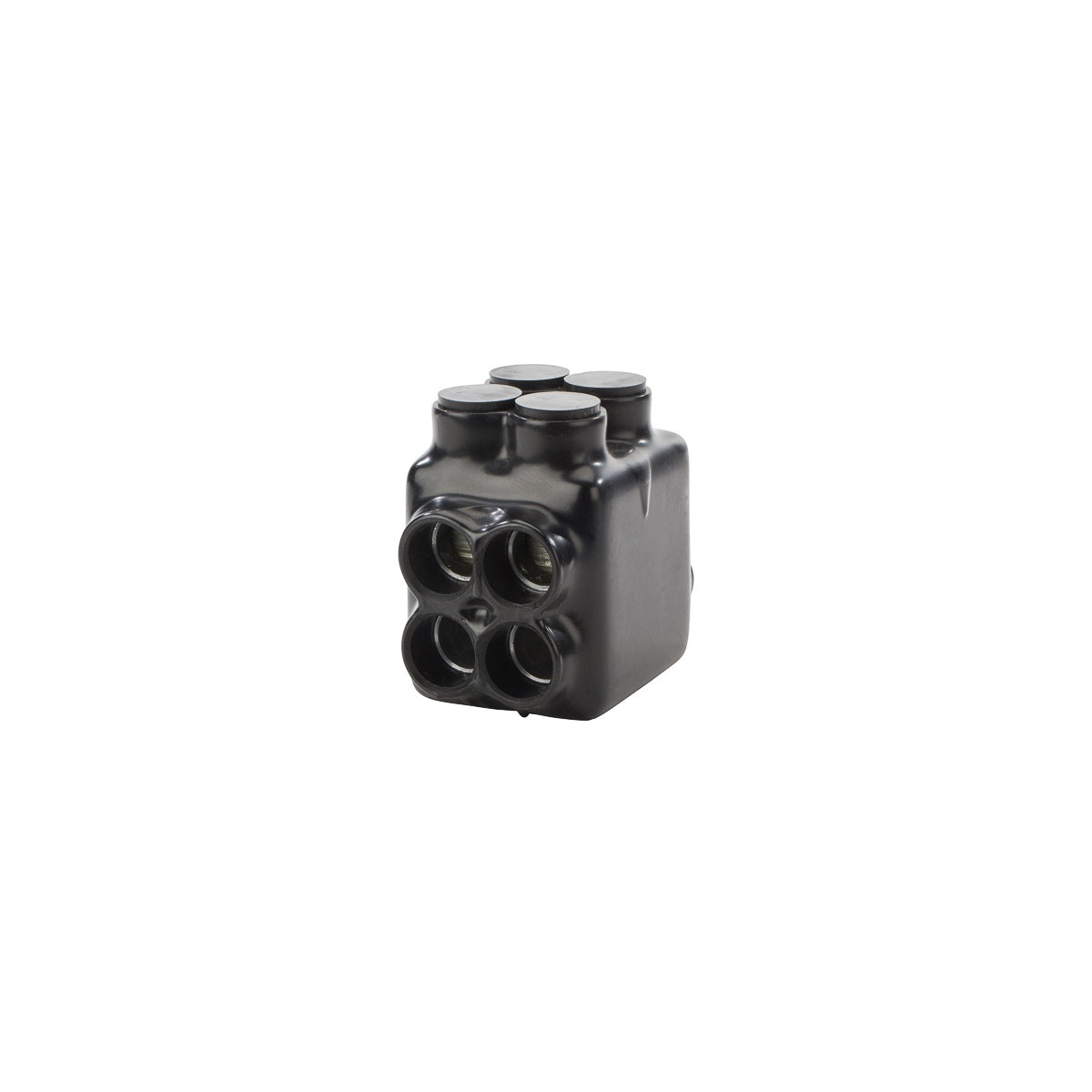

Polaris™ Stack Ins Multi-Tap 500 4 Port Wire Termination Connector
The Polaris™ Stack Ins Multi-Tap 500 4 Port is a pre-insulated multi-cable connector designed for wire termination applications. Manufactured by NSI Industries, this connector supports Class B and C wire types ranging from 500 MCM to 4 AWG. It is suitable for use by electrical distributors and switchgear suppliers requiring reliable, insulated connections in lighting solutions, wire and cable installations, and electrical distribution systems.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS500-4
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 2.94 in x 4.71 in x 4.28 in
- Product Weight: 2.26 lbs
- Environmental Conditions: Rated for 90°C
- Voltage Rating: 600V (per UL 486B listing)
Features
- UL 486B Listed for copper or aluminum Class B and C conductors
- Pre-insulated with high dielectric strength black plastisol for abrasion, chemical, and UV resistance
- Wire entry ports on both sides allow for dual side entry and stacked configurations
- Supplied with removable plugs to close unused entry ports, eliminating the need for additional taping or covers
- Cold temperature rated to -45°C for harsh environment applications
- Dual rated for use with copper and aluminum cables, providing flexibility and cost savings
- Tough plastisol insulation allows use in vibration-prone conditions
- Customizable UL Listed direct burial and submersible connector options available
