Polaris™ Stack Ins Multi-Tap 350 12 Port
SKU: #304893
Part: #IPLDS350-12
UPC: 662381951687
Polaris™ Stack Ins Multi-Tap 350 12 Port
SKU: #304893
Part: #IPLDS350-12
UPC: 662381951687
Total Price: $422.15 per each Sold in increments of 1 each
Description

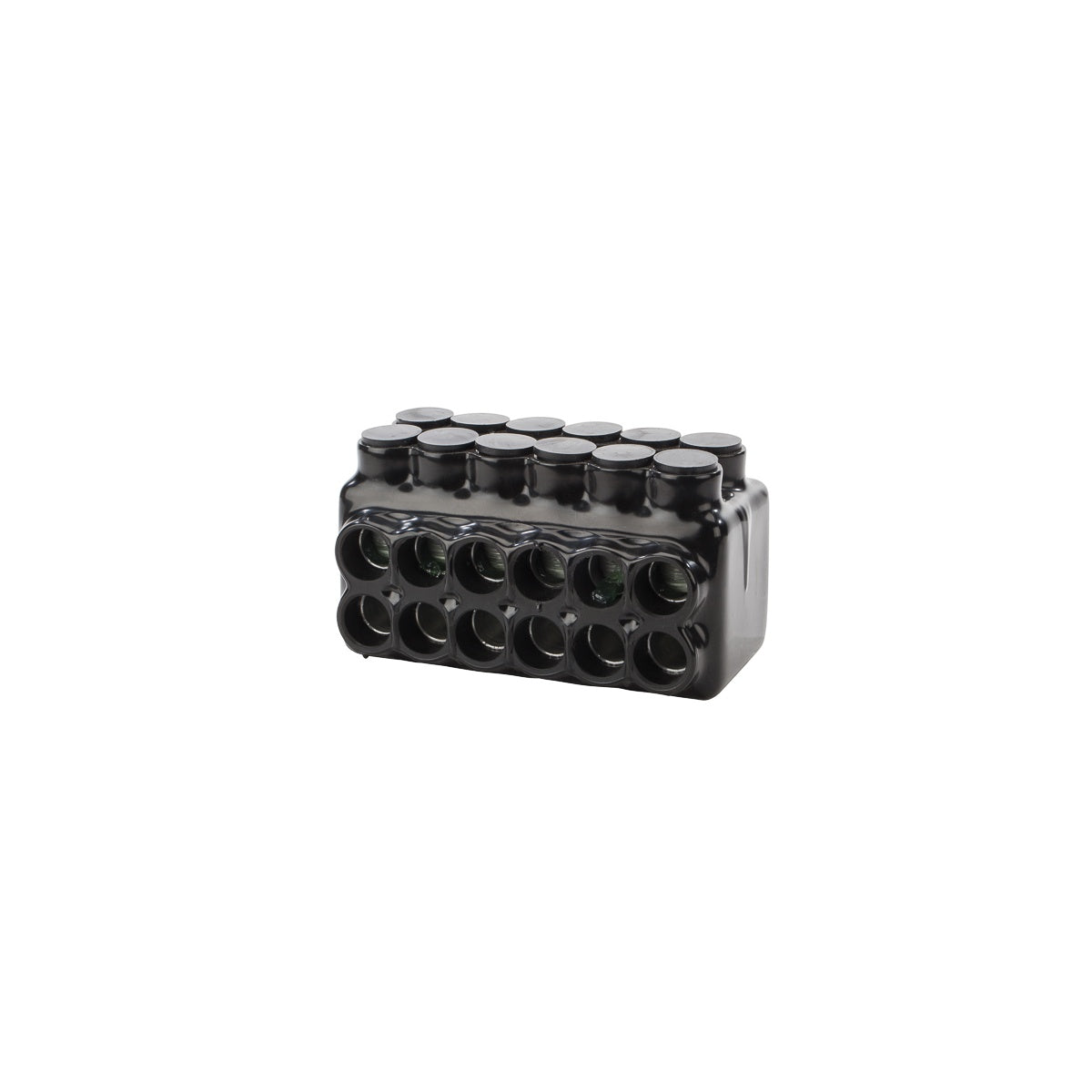

Polaris™ Stack Ins Multi-Tap 350 12 Port Wire Connector
The Polaris™ Stack Ins Multi-Tap 350 12 Port is an insulated multi-cable connector block designed for wire termination applications. Manufactured by NSI Industries, this connector supports dual-rated Class B & C copper and aluminum wires, providing versatile and reliable electrical connections. It is suitable for use by electrical distributors and switchgear suppliers requiring compact, stacked multi-tap solutions with double-sided wire entry.
Specifications
- Application: Wire Termination
- Number of Conductors: 12
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 6.75 in x 3.91 in x 3.52 in
- Environmental Conditions: 90 °C
- Product Weight: 3.89 lbs
- Manufacturer Part #: IPLDS350-12
- Voltage Rating: 600V
- Temperature Rating: 90 °C (cold temperature rated to -45 °C)
- UL Listing: UL 486B (Dry Location)
Features
- Dual-sided wire entry ports with removable plugs for unused entries
- Pre-insulated with high dielectric strength black plastisol for abrasion, chemical, and UV resistance
- Compact stacked design ideal for tight spaces and small wireways
- Suitable for copper and aluminum conductors, dual rated for flexibility and cost savings
- Eliminates need for additional insulation such as tape
- Cold temperature rated to -45 °C, suitable for harsh environments
- Will not support combustion
- Torque rating: 400 in./lbs. with 5/16 inch hex wrench size
