Polaris™ Mount Ins Multi-Tap 500 3 Port
SKU: #304978
Part: #IPLMD500-3
UPC: 662381945013
Polaris™ Mount Ins Multi-Tap 500 3 Port
SKU: #304978
Part: #IPLMD500-3
UPC: 662381945013
Total Price: $165.14 per each Sold in increments of 1 each
Description

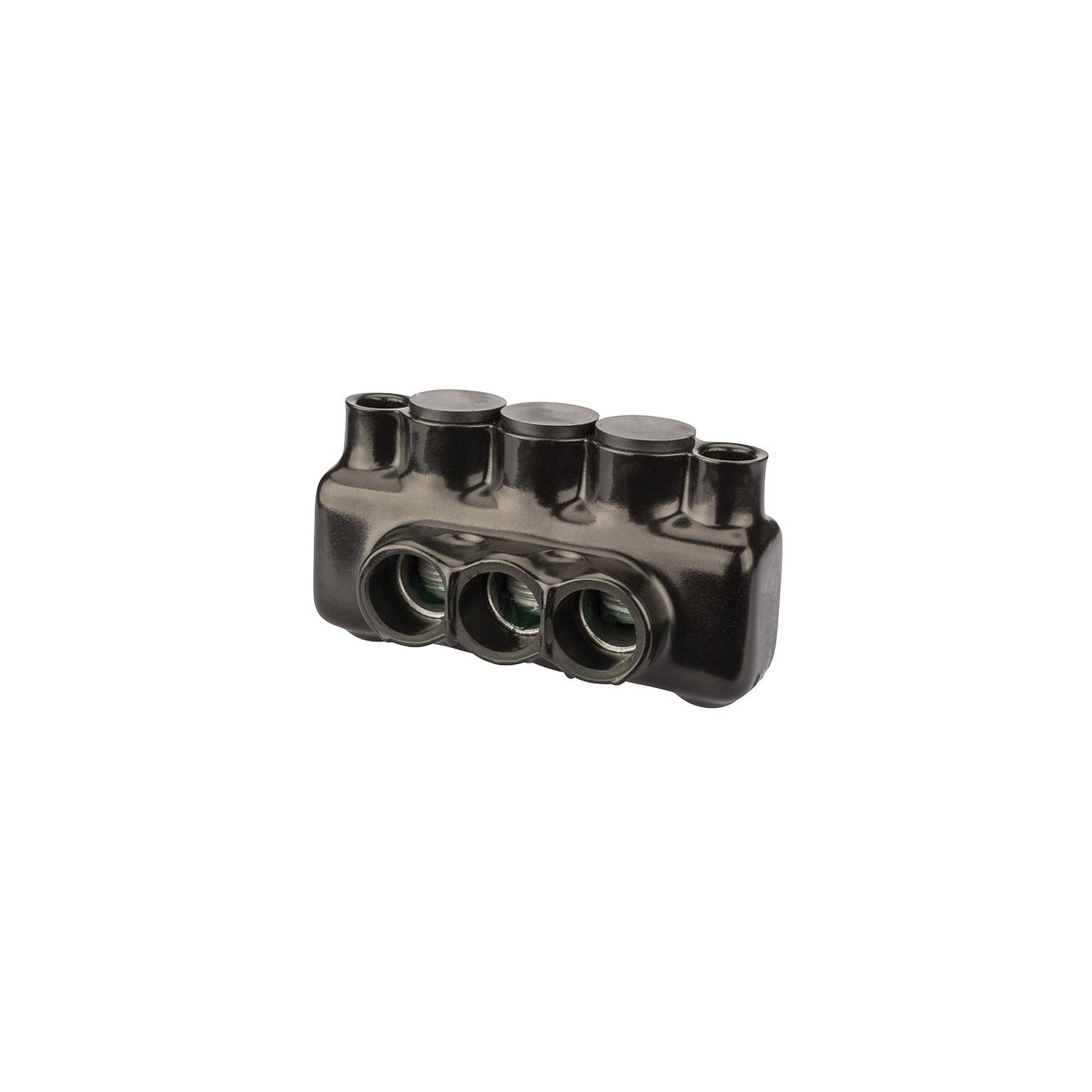

Polaris™ Mount Ins Multi-Tap 500 3 Port Electrical Connector
The Polaris™ Mount Ins Multi-Tap 500 3 Port is a pre-insulated, multi-port connector designed for wire termination applications. Manufactured by NSI Industries, this connector supports wire sizes ranging from 500 MCM to 4 AWG and is suitable for Class B & C wire types. It is engineered for use in electrical distribution and lighting solutions where reliable wire and cable connections are essential. The product features dual-sided entry and is mountable, making it compatible with various switchgear and electrical distributor setups.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 3
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 5.51 in x 2.81 in x 3.03 in
- Product Weight: 1.29 lbs
- UL Listing: UL486A/B, 600V rating
- Temperature Rating: Cold temperature rated to -45°C
- Manufacturer Part #: IPLMD500-3
Features
- Pre-filled with oxide inhibitor to ensure reliable electrical connections
- Dual entry ports with removable caps for flexible wiring options
- Insulated mounting ports on each end for secure installation with 5/16" bolts
- 5/16" internal hex pressure screws for secure conductor clamping
- High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
- Manufactured from durable 6061-T6 aluminum alloy for mechanical strength and corrosion resistance
- UL listed for indoor splice applications and dual rated for copper and aluminum conductors
