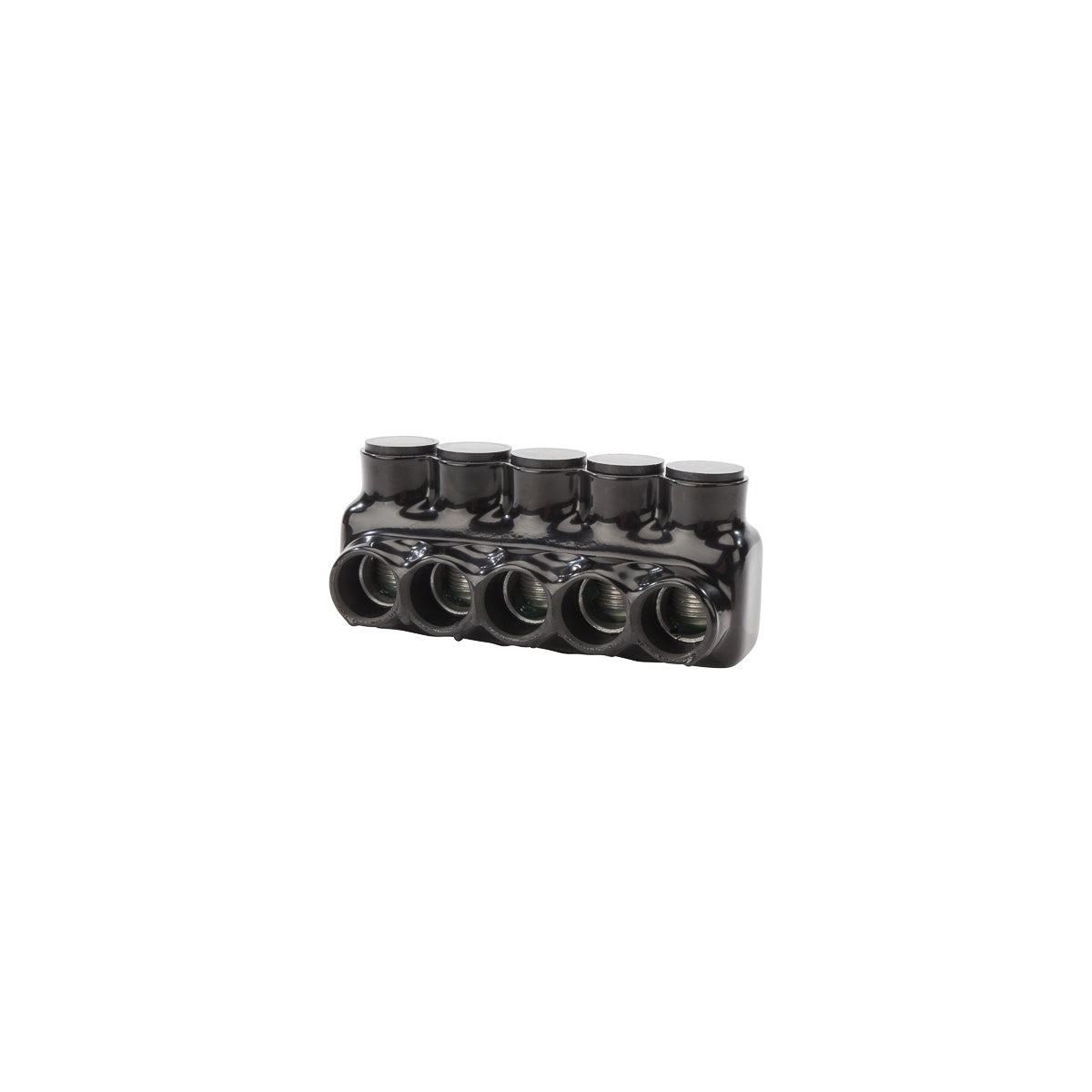

Polaris™ Ins Multi-Tap 350 5 Port SSE Electrical Wire Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable electrical connections for wire and cable in industrial and commercial settings. This 5-port, single-sided entry connector is suited for use by electrical distributors and switchgear suppliers requiring durable, insulated connectors compatible with Class B and C wire types. It supports wire sizes from 350 MCM to 6 AWG and is insulated with high-dielectric strength plastisol for enhanced safety and durability.

Specifications

• Application: Wire Termination
• Number of Conductors: 5
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 5.57 in x 2.13 in x 2.46 in
• Product Weight: 0.96 lbs
• Environmental Conditions: Rated for 90°C
• Manufacturer: NSI Industries
• Manufacturer Part #: IPL350-5

Features

• Wire entry ports on one side only, simplifying installation
• Eliminates the need for cover and taping
• Insulated with high-dielectric strength plastisol for electrical safety
• Molded for precise fit with removable access plugs over hex screws
• Abrasion and chemical resistant for durability in harsh environments
• UV resistant to maintain performance in outdoor applications
• Will not support combustion, enhancing fire safety
