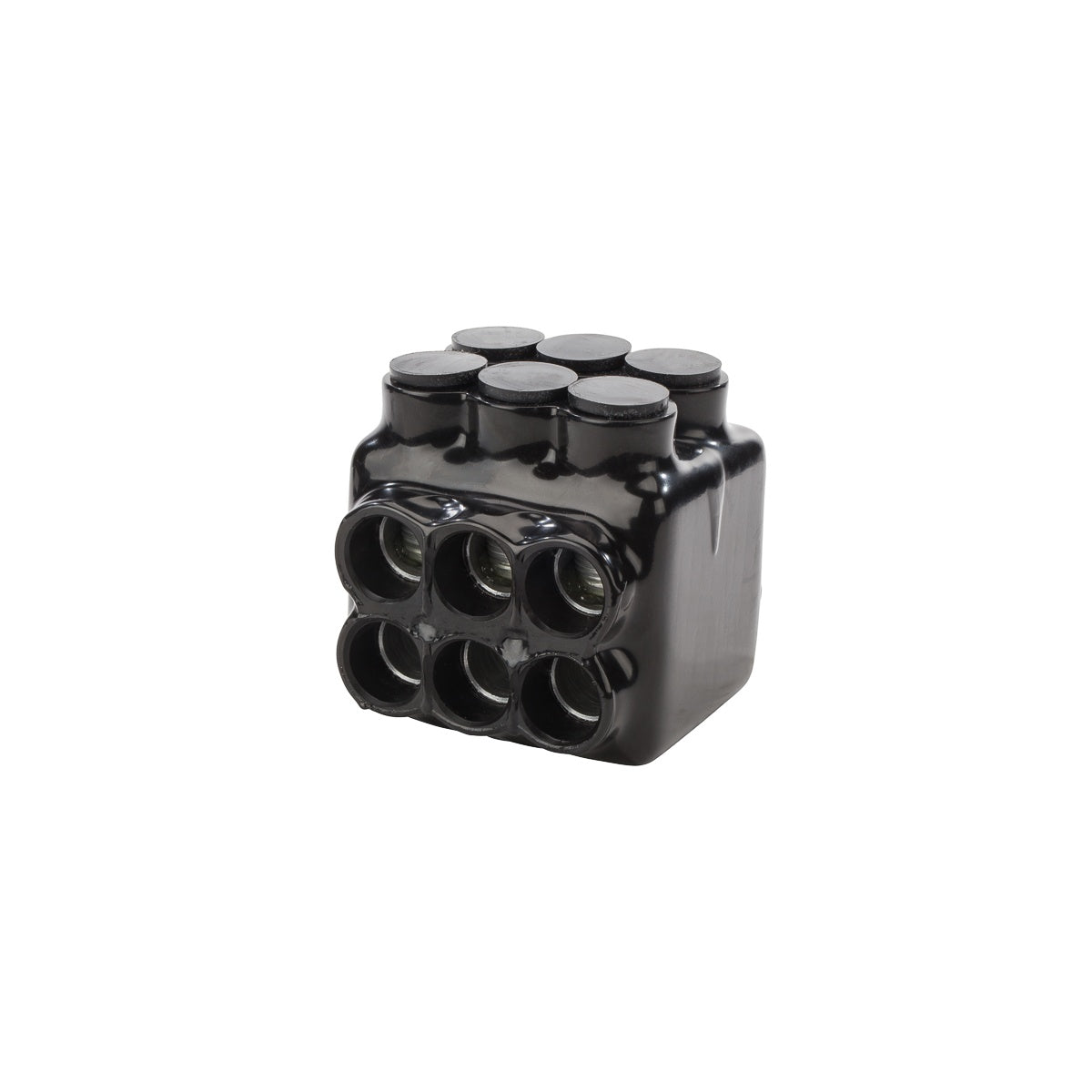

Polaris™ Stack Ins Multi-Tap 500 6 Port - Insulated Wire Termination Connector

The Polaris™ Stack Ins Multi-Tap 500 6 Port is a pre-insulated, stacked multi-tap connector designed for wire termination applications in electrical distribution systems. Manufactured by NSI Industries, this connector supports wire sizes ranging from 500 MCM to 4 AWG and is suitable for Class B & C wire types. It is engineered to provide reliable electrical connections while meeting the needs of electrical distributors, lighting solutions providers, and switchgear suppliers.

Specifications

• Application: Wire Termination
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 6
• Number of Poles: 1
• Wire Range: 500 MCM - 4 AWG
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Dimensions (L x W x H): 4.08 in x 4.71 in x 4.28 in
• Product Weight: 2.91 lbs
• UL Listed: UL486A/B for 600V
• Cold Temperature Rating: -45°C
• Manufacturer Part Number: IPLDS500-6

Features

• Pre-filled with oxide inhibitor for enhanced corrosion resistance
• Dual entry ports with removable caps for flexible wiring options
• High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
• Compact stacked design to save space in electrical panels
• Pressure screw terminals with 5/16 internal hex for secure connections
• Suitable for both copper and aluminum conductors
