Polaris™ Stack Ins Multi-Tap 750 10 Port
SKU: #304940
Part: #IPLDS750-10
UPC: 662381951755
Polaris™ Stack Ins Multi-Tap 750 10 Port
SKU: #304940
Part: #IPLDS750-10
UPC: 662381951755
Total Price: $671.89 per each Sold in increments of 1 each
Description

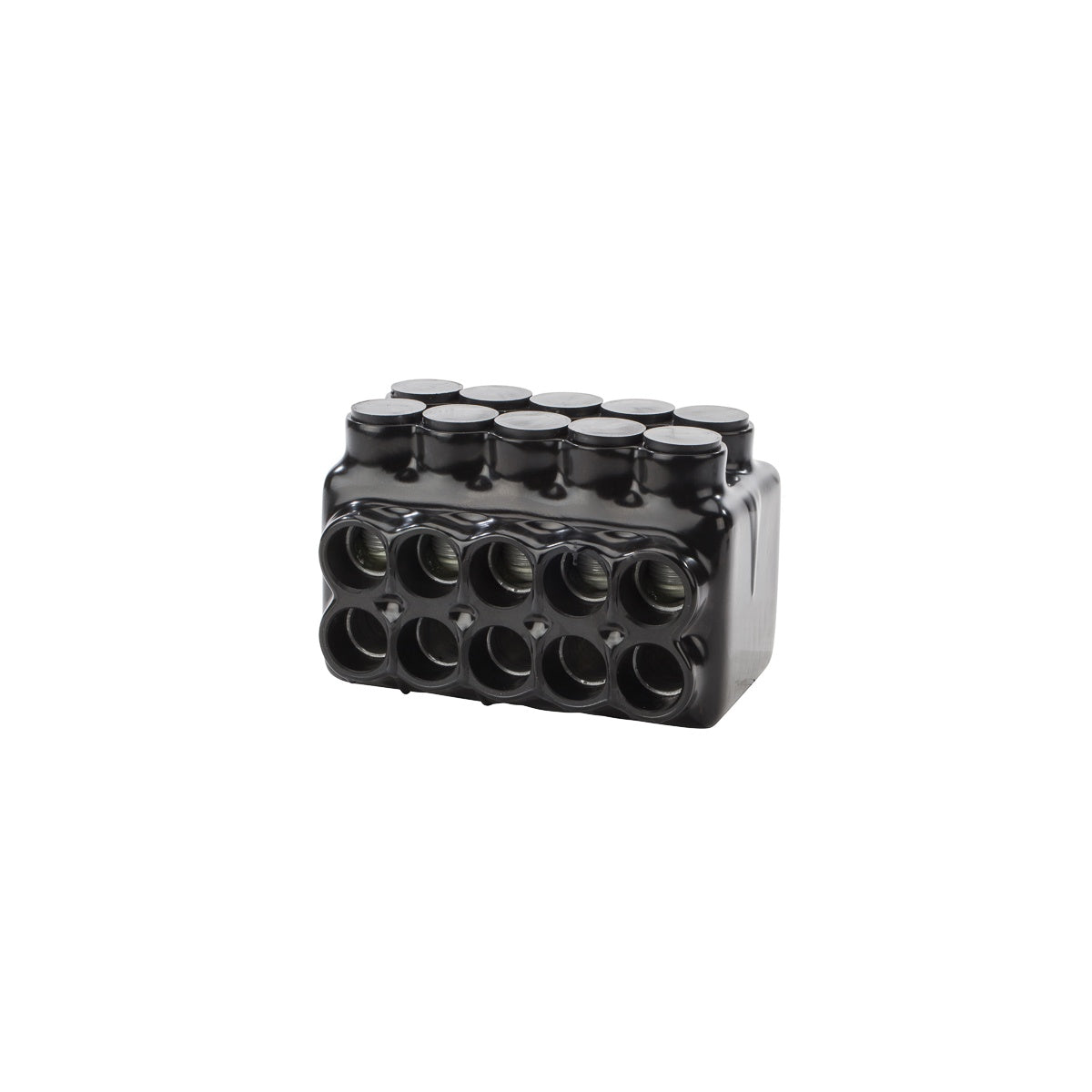

Polaris™ Stack Ins Multi-Tap 750 10 Port – Insulated Multi-Cable Connector
The Polaris™ Stack Ins Multi-Tap 750 10 Port is a high-dielectric insulated multi-cable connector designed for wire termination applications. Manufactured by NSI Industries, this connector supports Class B & C copper and aluminum conductors, making it suitable for electrical distributors and lighting solutions requiring reliable wire and cable connections. Its dual entry ports and stacked design allow versatile wiring configurations, reducing installation time and costs in commercial and industrial switchgear setups.
Specifications
- Application: Wire Termination
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS750-10
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 10
- Number of Poles: 1
- Wire Type: Class B & C
- Wire Range: 750-250 MCM
- Environmental Conditions: Rated for 90°C, cold temperature rated to -45°C
- Dimensions (L x W x H): 7.8 in x 4.97 in x 4.92 in
- Product Weight: 7.13 lbs
Features
- UL 486B Listed for copper or aluminum Class B,C conductors
- Pre-insulated with high dielectric strength plastisol for abrasion, chemical, and UV resistance
- Dual side wire entry ports with removable plugs for flexible installation
- Stacked multi-tap design with 10 ports for multiple wiring configurations
- Cold temperature rated to -45°C for harsh environment applications
- Eliminates the need for additional insulation such as tape
- Tough plastisol coating suitable for vibration-prone and outdoor conditions
- Dual rated for copper and aluminum conductors, providing cost savings and versatility
