Polaris™ Ins Multi-Tap 250 5 Port SSE
SKU: #304293
Part: #IPL250-5
UPC: 662381913036
Polaris™ Ins Multi-Tap 250 5 Port SSE
SKU: #304293
Part: #IPL250-5
UPC: 662381913036
Total Price: $64.15 per each Sold in increments of 1 each
Description

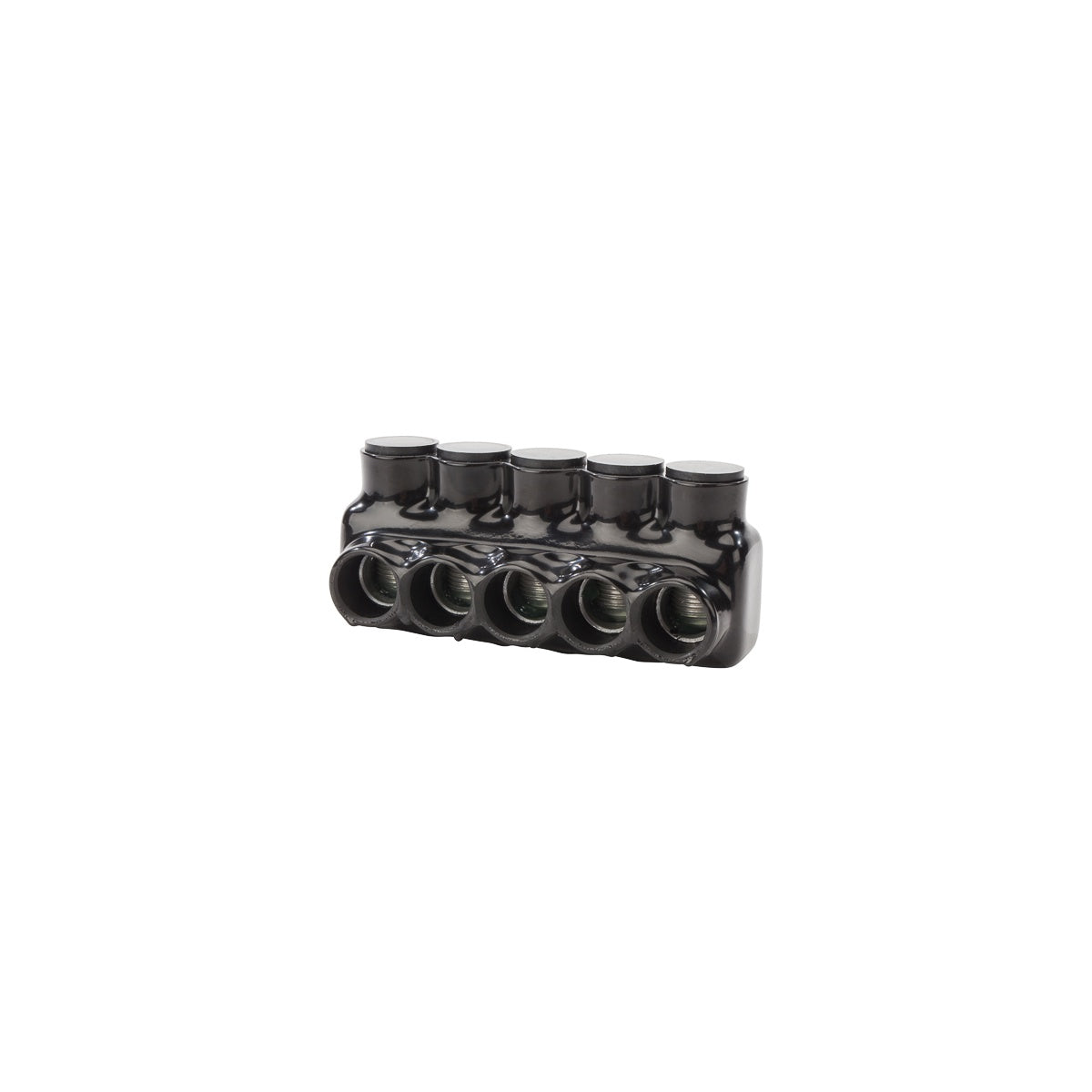

Polaris™ Ins Multi-Tap 250 5 Port SSE – Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, providing reliable electrical connections for wire and cable systems. Manufactured by NSI Industries, this connector supports wire sizes ranging from 250 MCM to 6 AWG and accommodates Class B & C wire types. Its single-sided entry design simplifies installation and is suitable for use by electrical distributors and switchgear suppliers seeking high-quality lighting solutions and wiring components.
Specifications
- Manufacturer Part #: IPL250-5
- Application: Wire Termination
- Number of Conductors: 5
- Number of Poles: 1
- Wire Range: 250 MCM - 6 AWG
- Wire Type: Class B & C
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 4.66 in x 2.03 in x 2.18 in
- Product Weight: 0.58 lbs
- Environmental Conditions: 90 °C
- UL Listing: UL Listed 486B Wire Connector (Dry location)
- Temperature Rating: Rated to 90 °C, 600V, cold temperature rated to -45 °C
- Torque Value: 360 in./lbs.
- Hex/Wrench Size: 5/16 in.
Features
- Single side wire entry ports for ease of installation
- High-dielectric strength plastisol insulation eliminates need for cover and taping
- Molded for precise fit with removable access plugs over hex screws
- Abrasion and chemical resistant construction
- UV resistant and will not support combustion
- Dual rated for use with copper and aluminum cables (not suitable for fine-stranded flexible wire)
