Polaris™ Stack Ins Multi-Tap 750 12 Port
SKU: #304947
Part: #IPLDS750-12
UPC: 662381951762
Polaris™ Stack Ins Multi-Tap 750 12 Port
SKU: #304947
Part: #IPLDS750-12
UPC: 662381951762
Total Price: $821.77 per each Sold in increments of 1 each
Description

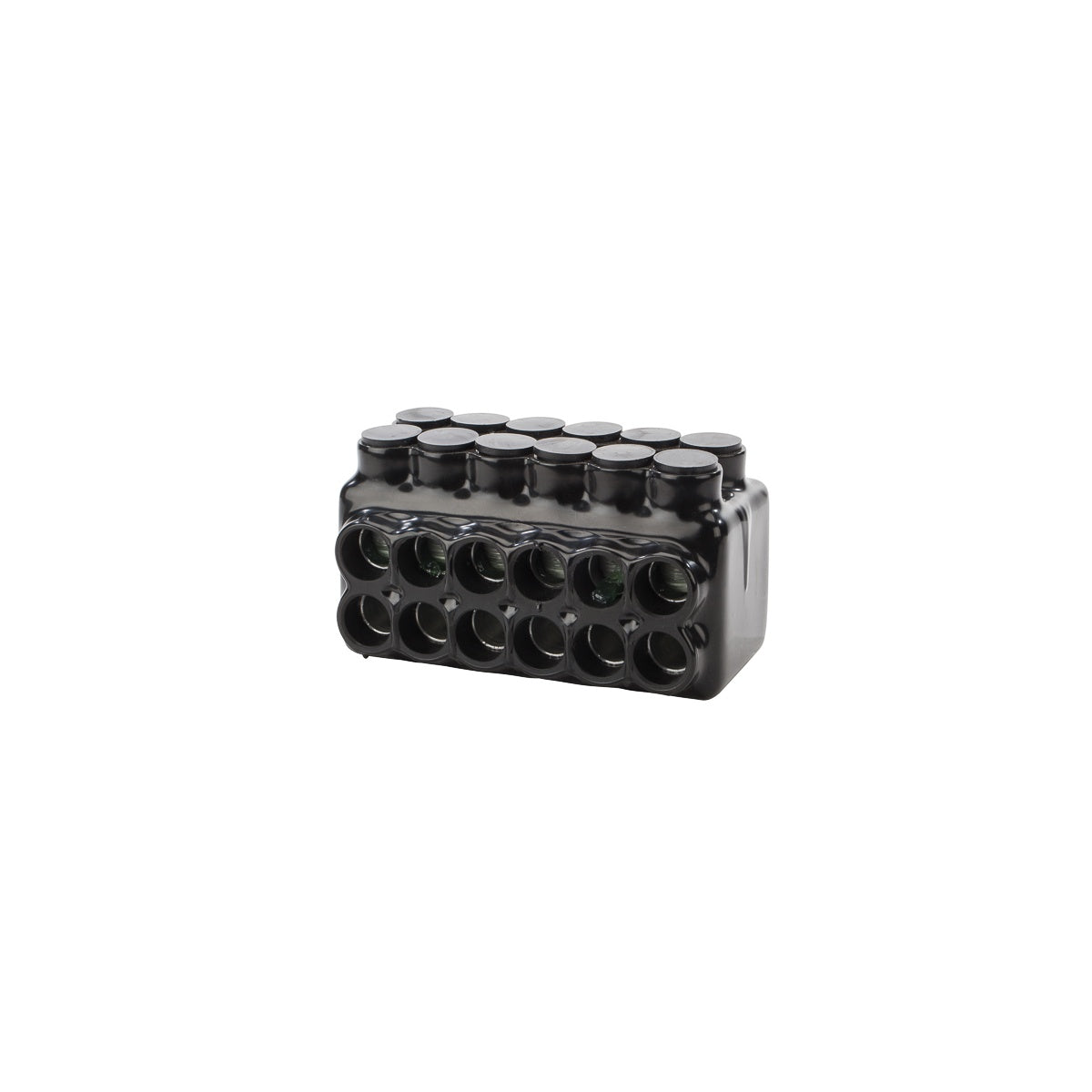

Polaris™ Stack Ins Multi-Tap 750 12 Port Electrical Connector
The Polaris™ Stack Ins Multi-Tap 750 12 Port is an insulated multi-cable connector designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers. It accommodates wire sizes from 750 to 250 MCM and supports Class B and C copper or aluminum conductors, providing a reliable and flexible solution for electrical wiring and lighting solutions where multi-port connections are required.
Specifications
- Application: Wire Termination
- Material: Aluminum (6061-T6 alloy)
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 12
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: Rated for 90°C
- Dimensions (L x W x H): 9.23 in x 4.97 in x 4.92 in
- Product Weight: 7.42 lbs
- Manufacturer Part #: IPLDS750-12
Features
- UL 486B Listed for copper or aluminum Class B and C conductors
- Pre-insulated with high dielectric strength black plastisol
- Dual side wire entry ports with removable plugs for unused ports
- Abrasion, chemical, and UV resistant insulation
- Cold temperature rated to -45°C for harsh environments
- Eliminates the need for taping or additional insulation materials
- Stackable design with multiple wiring configurations
- Suitable for use in vibration-prone and harsh working conditions
- Pre-filled with oxide inhibitor for enhanced conductivity and corrosion resistance
