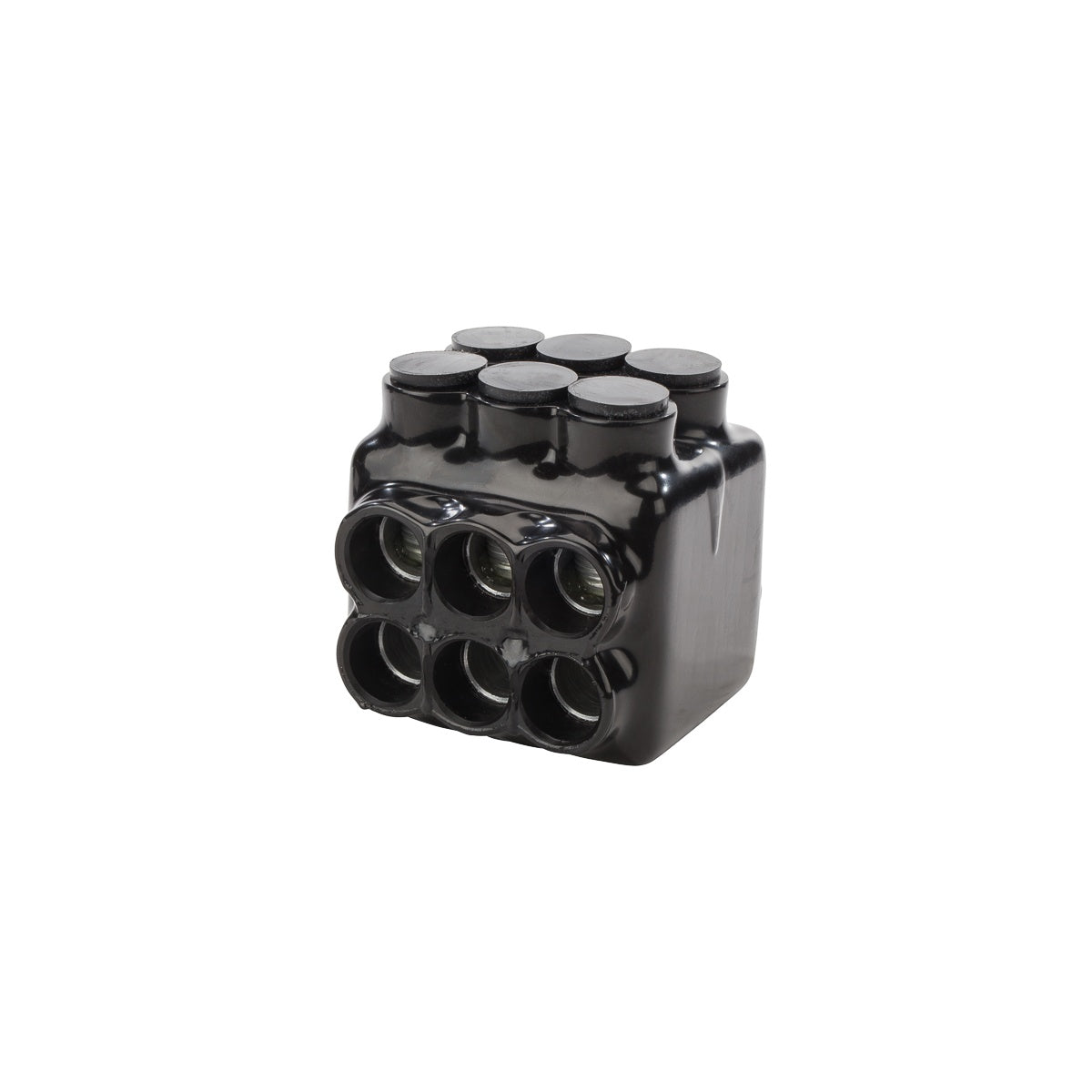

Polaris™ Stack Ins Multi-Tap 350 6 Port Electrical Connector

The Polaris™ Stack Insulated Multi-Tap Connector is designed for wire termination applications involving wire and cable distribution. This 6-port, double-sided entry connector supports wire sizes from 350 MCM to 6 AWG and is suitable for use by electrical distributors and switchgear suppliers requiring durable, pre-insulated multi-cable connection solutions. Its robust construction and versatile configuration enable efficient and reliable electrical connections in lighting solutions and other electrical systems.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part #: IPLDS350-6
• Application: Wire Termination
• Number of Conductors: 6
• Number of Poles: 1
• Wire Type: Class B & C
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 3.6 in x 3.91 in x 3.52 in
• Environmental Rating: 90°C
• Product Weight: 2.01 lbs
• UPC: 662381951656

Features

• UL 486B Listed for Copper or Aluminum Class B and C conductors
• Pre-insulated with high dielectric strength black plastisol for abrasion and chemical resistance
• Dual-side wire entry ports with removable plugs for flexible installation
• Cold temperature rated to -45°C and UV resistant
• Eliminates the need for taping or additional insulation, saving installation time and cost
• Stackable design for multiple wiring configurations
• Tough plastisol insulation suitable for harsh vibration-prone environments
• Dual rated for use with copper and aluminum cables
