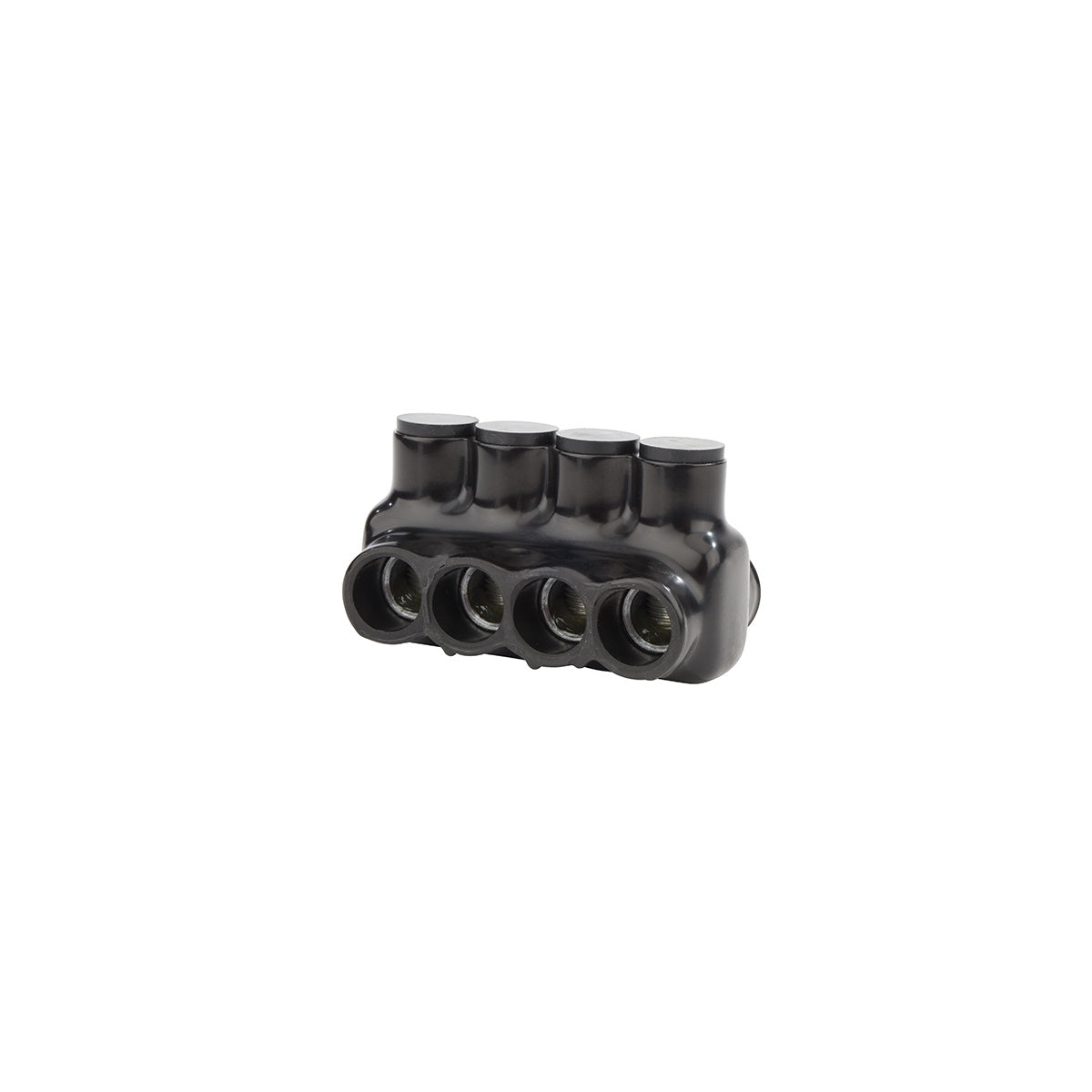

Polaris™ Ins Multi-Tap 350 4 Port DSE Wire Termination Connector

The Polaris™ Insulated Multi-Tap Connector is designed for wire termination applications, offering reliable electrical connections for wire and cable systems. This connector supports wire sizes ranging from 350 MCM to 6 AWG and is suitable for use in electrical distribution and lighting solutions where durable, insulated multi-port connections are required. Its dual-sided entry design facilitates versatile wiring configurations, making it an efficient choice for switchgear suppliers and electrical distributors.

Specifications

• Application: Wire Termination
• Manufacturer: NSI Industries
• Manufacturer Part #: IPLD350-4
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 4
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: Rated for 90°C
• Dimensions: 4.57 in (Length) x 2.41 in (Width) x 2.61 in (Height)
• Product Weight: 0.7700 lbs
• Voltage Rating: 600V UL Listed per UL486A/B
• Temperature Rating: Cold temperature rated to -45°C
• Wire Range: 350 MCM - 6 AWG

Features

• Dual entry ports allow wire access from either side with removable plugs for unused ports
• Pre-filled with oxide inhibitor for enhanced connection reliability
• High dielectric strength plastisol insulation, abrasion, chemical, and UV resistant
• UL 486B Listed for copper or aluminum Class B and C conductors
• Eliminates the need for taping or additional insulation materials
• Tough plastisol insulation suitable for harsh vibration-prone environments
• Customizable configurations available to meet specific project requirements
• 5/16 internal hex pressure screw for secure conductor clamping
