Polaris™ Ins Multi-Tap 3/0 4 Port DSE
SKU: #304588
Part: #IPLD3/0-4
UPC: 662381927026

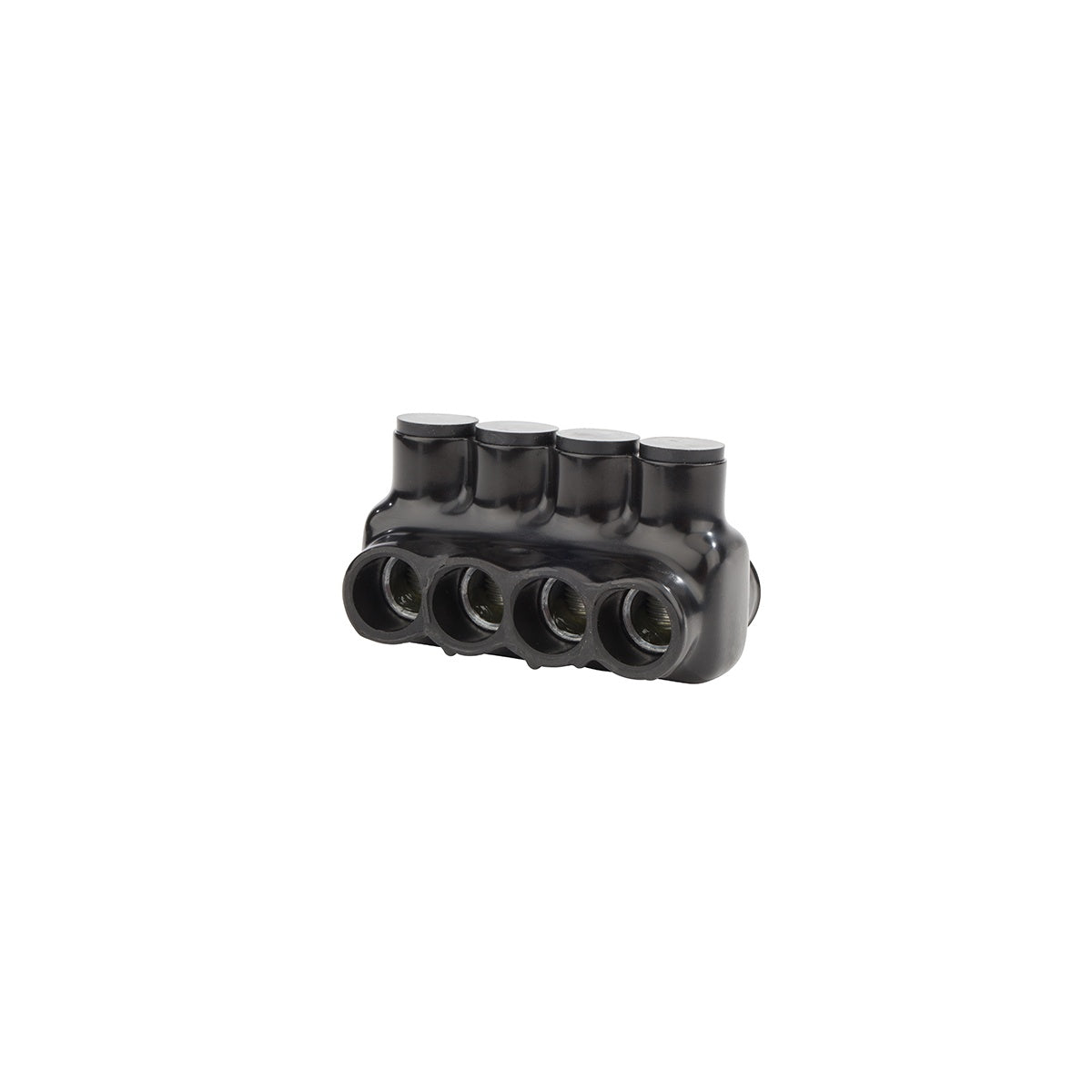

Polaris™ Ins Multi-Tap 3/0 4 Port DSE
SKU: #304588
Part: #IPLD3/0-4
UPC: 662381927026
Total Price: $59.49 per each Sold in increments of 1 each
Description
Polaris™ Ins Multi-Tap 3/0 4 Port DSE - Pre-Insulated Multi-Conductor Connector
The Polaris™ Insulated Multi-Tap Connector by NSi Industries is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers handling wire and cable connections. This 4-port, dual-sided entry connector supports Class B & C wire types and is insulated with a high-dielectric strength plastisol finish to ensure safety and durability in lighting solutions and electrical distribution systems.
Specifications
- Manufacturer: NSi Industries
- Manufacturer Part #: IPLD3/0-4
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum
- Color: Black
- Finish: Plastisol Insulated
- Environmental Conditions: Rated for 90 °C
- Dimensions (L x W x H): 3.41 in x 1.83 in x 1.79 in
- Product Weight: 0.41 lbs
- Temperature Rating: 90 °C, 600V (UL Listed 486B, dry location)
- Wire Range: 3/0-6 AWG
Features
- Dual-sided wire entry ports for flexible access
- Pre-insulated with high-dielectric strength plastisol for electrical safety
- Removable access plugs over hex screws for ease of installation
- Supplied with removable plugs to close unused entry ports
- Abrasion, chemical, and UV resistant
- Will not support combustion
- Cold temperature rated to -45 °C
- UL Listed for wire connectors in dry locations
