Polaris™ Stack Ins Multi-Tap 500 12 Port
SKU: #304919
Part: #IPLDS500-12
UPC: 662381951724
Polaris™ Stack Ins Multi-Tap 500 12 Port
SKU: #304919
Part: #IPLDS500-12
UPC: 662381951724
Total Price: $497.07 per each Sold in increments of 1 each
Description

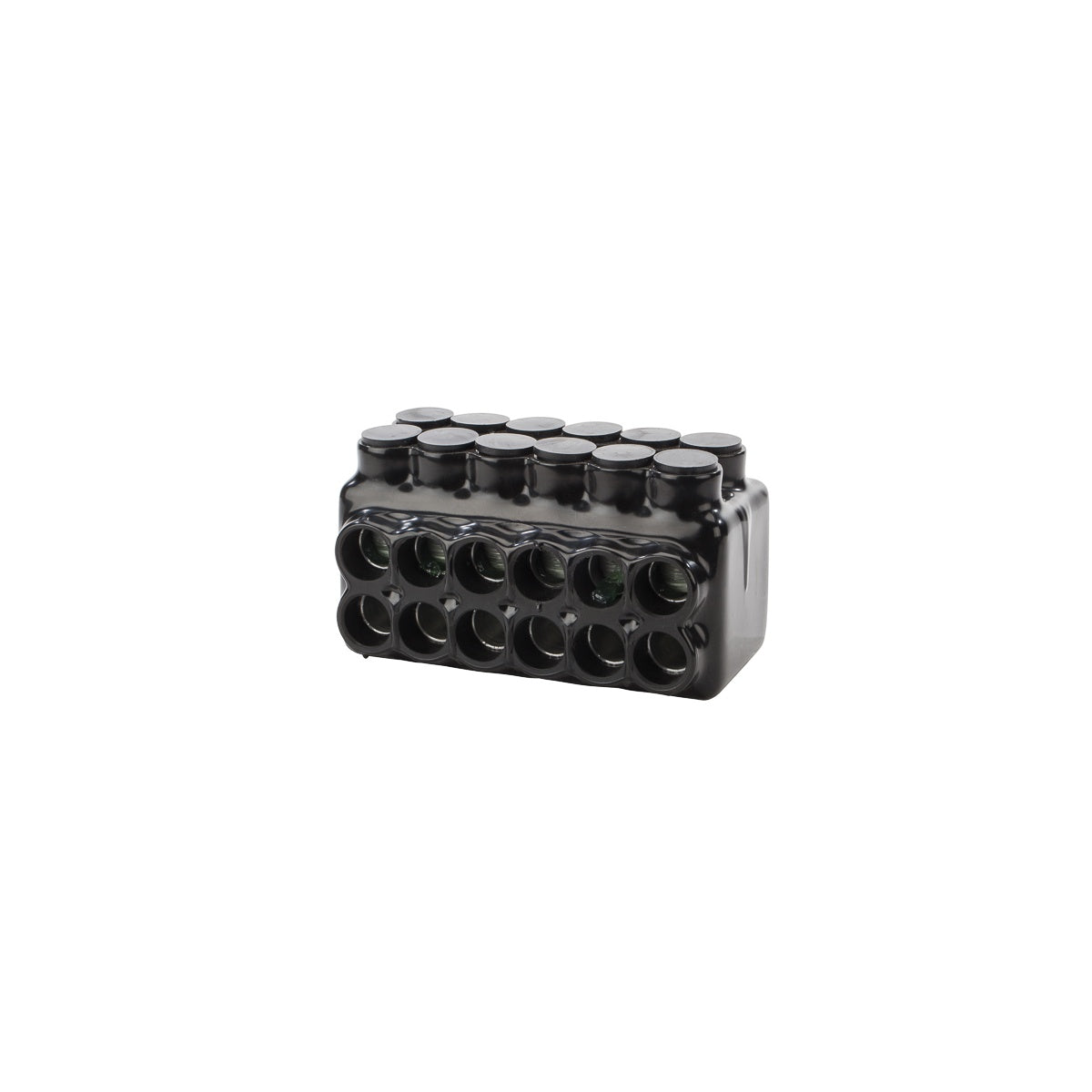

Polaris™ Stack Ins Multi-Tap 500 12 Port Electrical Connector
The Polaris™ Stack Insulated Multi-Tap Connector is designed for wire termination applications, providing a reliable solution for electrical distributors and switchgear suppliers. This insulated multi-cable connector block supports wire entry from both sides, facilitating flexible wiring configurations. It is suitable for use with Class B and C copper or aluminum conductors, rated for 600V and 90°C operation, making it ideal for various lighting solutions and wire and cable installations.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS500-12
- Application: Wire Termination
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Number of Conductors: 12
- Number of Poles: 1
- Wire Type: Class B & C
- Environmental Conditions: 90°C
- Voltage Rating: 600V
- Dimensions (L x W x H): 7.52 in x 4.71 in x 4.28 in
- Product Weight: 5.46 lbs
Features
- UL 486B Listed for Copper or Aluminum Class B and C conductors
- Pre-insulated with high dielectric strength plastisol for electrical safety
- Dual side wire entry ports with removable plugs for unused ports
- Abrasion and chemical resistant, UV rated black plastisol
- Cold temperature rated to -45°C for harsh environments
- Stacked multi-tap design for versatile wiring configurations
- Eliminates the need for additional cover or taping
- Not recommended for fine-stranded or flexible wire
