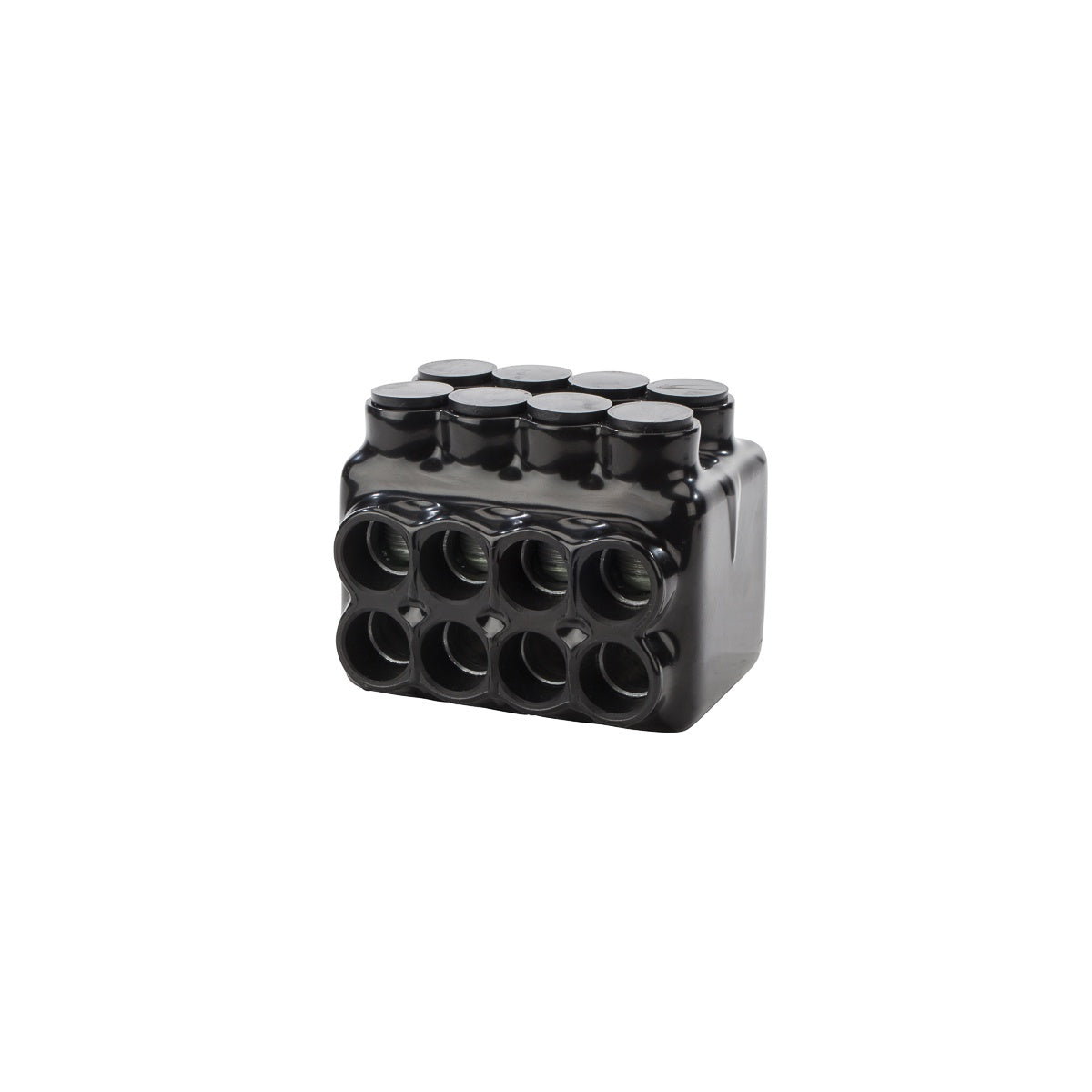

Polaris™ Stack Ins Multi-Tap 750 8 Port Connector for Wire Termination

This Polaris™ insulated multi-tap connector is designed for wire termination applications, suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. It accommodates wire sizes ranging from 750 to 250 MCM and supports Class B and C wire types. The connector features dual-sided entry ports and is insulated with a durable plastisol finish, providing abrasion, chemical, and UV resistance for demanding electrical installations.

Specifications

• Manufacturer: NSI Industries
• Manufacturer Part Number: IPLDS750-8
• Application: Wire Termination
• Number of Conductors: 8
• Number of Poles: 1
• Material: Aluminum (6061-T6 alloy)
• Finish: Plastisol Insulated
• Color: Black
• Dimensions (L x W x H): 6.38 in x 4.97 in x 4.92 in
• Weight: 5.1 lbs
• Wire Range: 750-250 MCM
• Wire Type: Class B & C
• Environmental Rating: 90°C

Features

• Dual entry ports with removable caps for flexible wire access
• Pre-filled with oxide inhibitor to ensure reliable electrical contact
• Cold temperature rated to -45°C for versatile environmental use
• High dielectric strength insulation resistant to abrasion, chemicals, and UV exposure
• Manufactured from durable 6061-T6 aluminum alloy for strength and conductivity
