Polaris™ Stack Ins Multi-Tap 350 10 Port
SKU: #304891
Part: #IPLDS350-10
UPC: 662381951670
Polaris™ Stack Ins Multi-Tap 350 10 Port
SKU: #304891
Part: #IPLDS350-10
UPC: 662381951670
Total Price: $347.22 per each Sold in increments of 1 each
Description

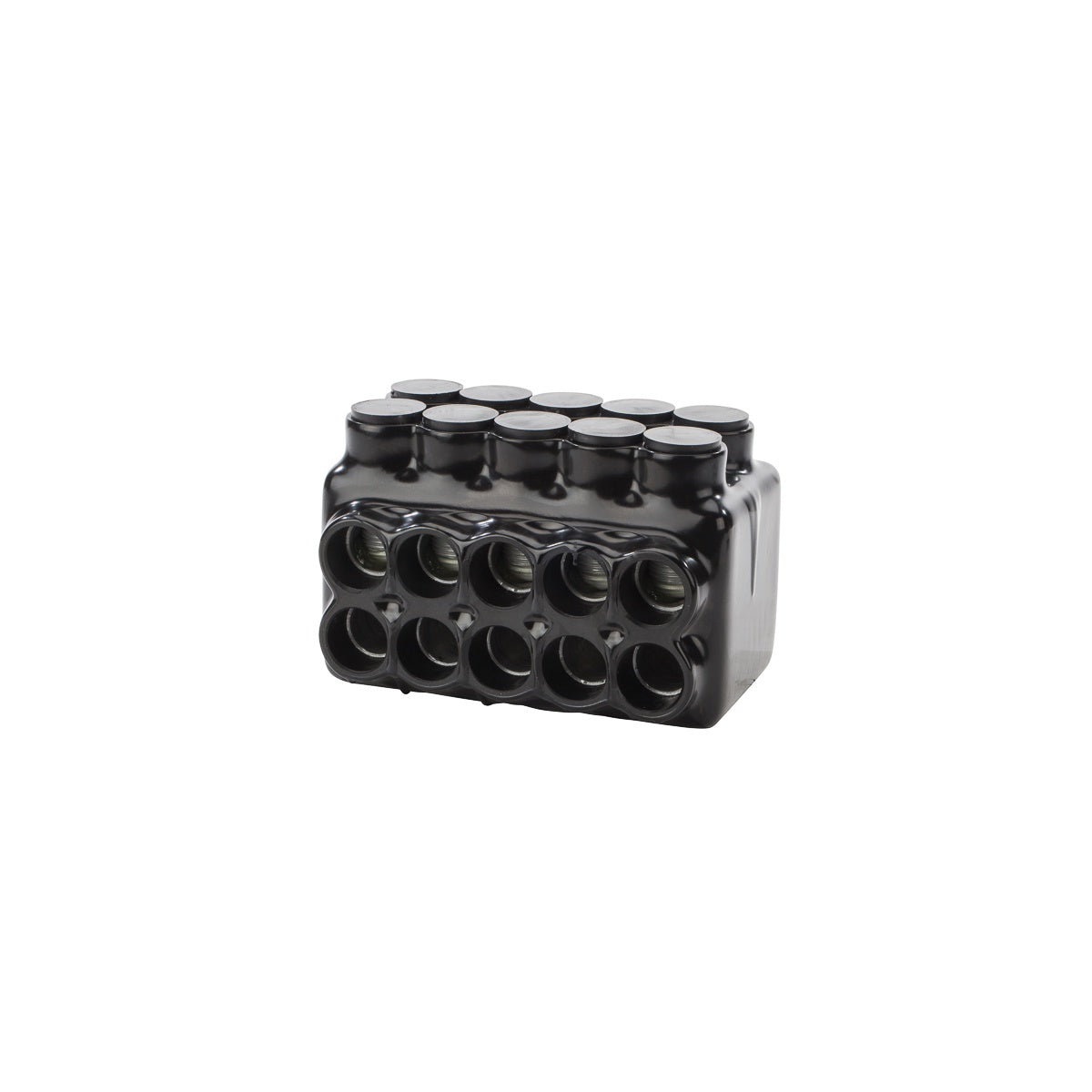

Polaris™ Stack Ins Multi-Tap 350 10 Port Wire Termination Connector
The Polaris™ Stack Ins Multi-Tap 350 10 Port is a pre-insulated wire termination connector designed for use with large wire sizes, specifically 350 MCM to 6 AWG. This compact, stacked multi-port connector supports double-sided wire entry, enhancing versatility in tight-fitting spaces, wire ways, and panels. It is suitable for electrical distributors and switchgear suppliers requiring reliable and efficient wire and cable connections in lighting solutions and industrial electrical applications.
Specifications
- Application: Wire Termination
- Number of Conductors: 10
- Wire Type: Class B & C (dual rated for copper and aluminum cables, not for fine-stranded flexible wire)
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 5.7 in x 3.91 in x 3.52 in
- Product Weight: 3.27 lbs
- Environmental Conditions: Rated for 90 °C
- Number of Poles: 1
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS350-10
- Certification: cULus Listed 486B Wire Connector (Dry location)
Features
- Stacked wire entry holes for compact design and space-saving installation
- Double-sided entry with removable plugs to close unused ports for versatility
- Abrasion, chemical, and UV resistant construction
- Will not support combustion
- Cold temperature rated to -45 °C, rated for 600V and 90 °C operation
- Torque value: 400 in./lbs. with 5/16 in. hex wrench size
