Polaris™ Stack Ins Multi-Tap 350 4 Port
SKU: #304895
Part: #IPLDS350-4
UPC: 662381790491
Polaris™ Stack Ins Multi-Tap 350 4 Port
SKU: #304895
Part: #IPLDS350-4
UPC: 662381790491
Total Price: $183.38 per each Sold in increments of 1 each
Description

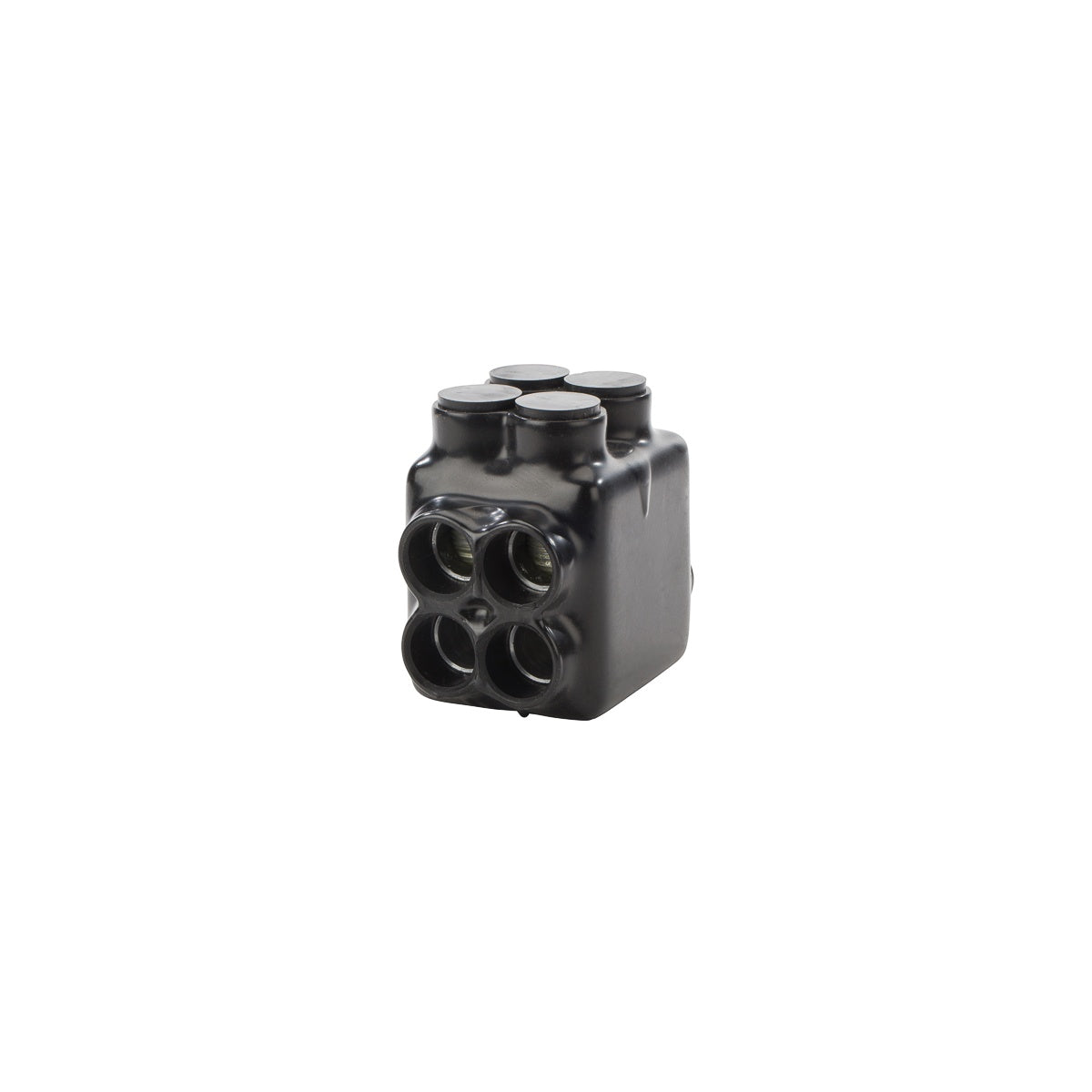

Polaris™ Stack Ins Multi-Tap 350 4 Port Electrical Connector
The Polaris™ Stack Insulated Multi-Tap 350 4 Port connector is designed for wire termination applications, providing reliable and versatile electrical connections for Class B and C copper or aluminum conductors. This insulated multi-cable connector block features a dual-sided entry with four ports, enabling efficient wiring configurations suitable for electrical distributors and switchgear suppliers requiring durable and flexible lighting solutions or wire and cable connections. It is rated for 600V and 90°C operation, meeting UL 486A/B standards.
Specifications
- Manufacturer: NSI Industries
- Manufacturer Part #: IPLDS350-4
- Application: Wire Termination
- Number of Conductors: 4
- Number of Poles: 1
- Wire Type: Class B & C
- Material: Aluminum (6061-T6 Alloy)
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 2.55 in x 3.91 in x 3.52 in
- Environmental Conditions: Rated for 90°C, cold temperature rated to -45°C
- Voltage Rating: 600V UL Listed per UL486A/B
- Product Weight: 1.3680 lbs
Features
- Dual-sided wire entry ports with removable caps for flexible wiring access
- Pre-filled with oxide inhibitor to ensure reliable electrical contact
- High dielectric strength plastisol insulation providing abrasion, chemical, and UV resistance
- Suitable for copper and aluminum conductors, dual rated for cost-effective conductor use
- Eliminates the need for taping or additional insulation materials
- Cold temperature rated to -45°C for harsh environment applications
- UL 486B Listed for copper or aluminum Class B and C conductors
- Designed for use in vibration-prone and harsh environmental conditions
