Black Insulated Multi-Cable Connector - Dual Entry 3 Ports 4 - 14
SKU: #281247
Part: #97613
UPC: 601986976138
Morris Products
Black Insulated Multi-Cable Connector - Dual Entry 3 Ports 4 - 14
SKU: #281247
Part: #97613
UPC: 601986976138
Description

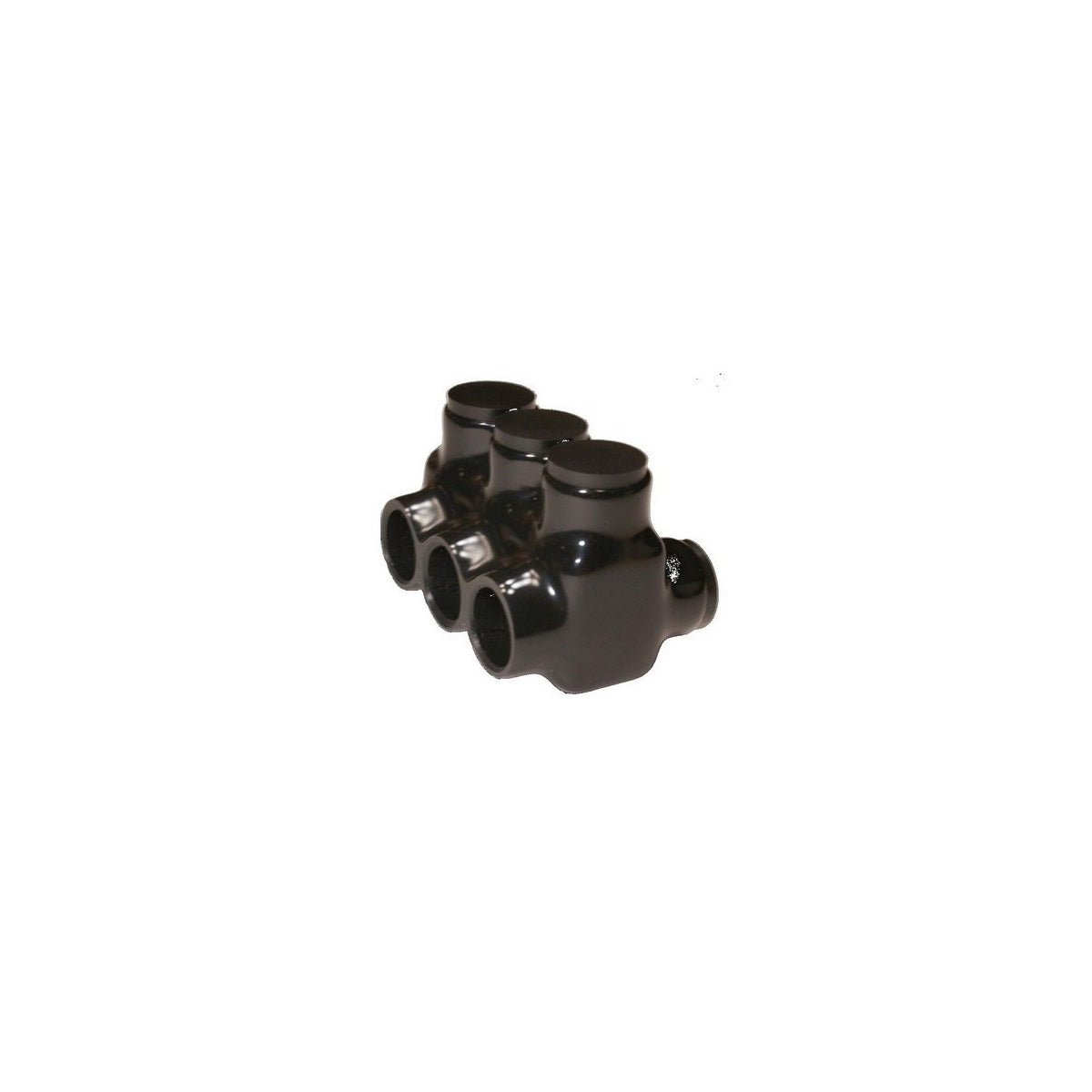

Black Insulated Multi-Cable Connector - Dual Entry 3 Ports 4 - 14 | Electrical Connector
This Black Insulated Multi-Cable Connector by Morris Products is designed for electrical distributors and switchgear suppliers requiring reliable power connections. Featuring a dual-entry design with three ports, it facilitates fast and efficient splicing and tapping of electrical conductors in wire and cable installations. The connector supports wire sizes from 4 to 14 AWG and is suitable for use in gutter, raceway, and enclosure power distribution applications.
Specifications
- Material: 6061-T6 Plated Aluminum
- Insulation: Black abrasion and chemical resistant PVC
- Wire Range: #4 - #14 AWG
- Temperature Rating: 40°F to 194°F
- Voltage Rating: 600V
- UL Certification: UL 486B Dual Rated CU ANSI C119.4
- cUL Certification: Yes
- Product Weight: 0.1500 lbs
Features
- Dual directional conductor entry for multi-tap applications
- Pre-filled with oxide inhibitor to prevent corrosion
- Aluminum mechanical connector suitable for AL/CU conductors
- Black insulated design for enhanced safety and durability
- Compatible with electrical distributor and lighting solutions requiring reliable wire splicing
