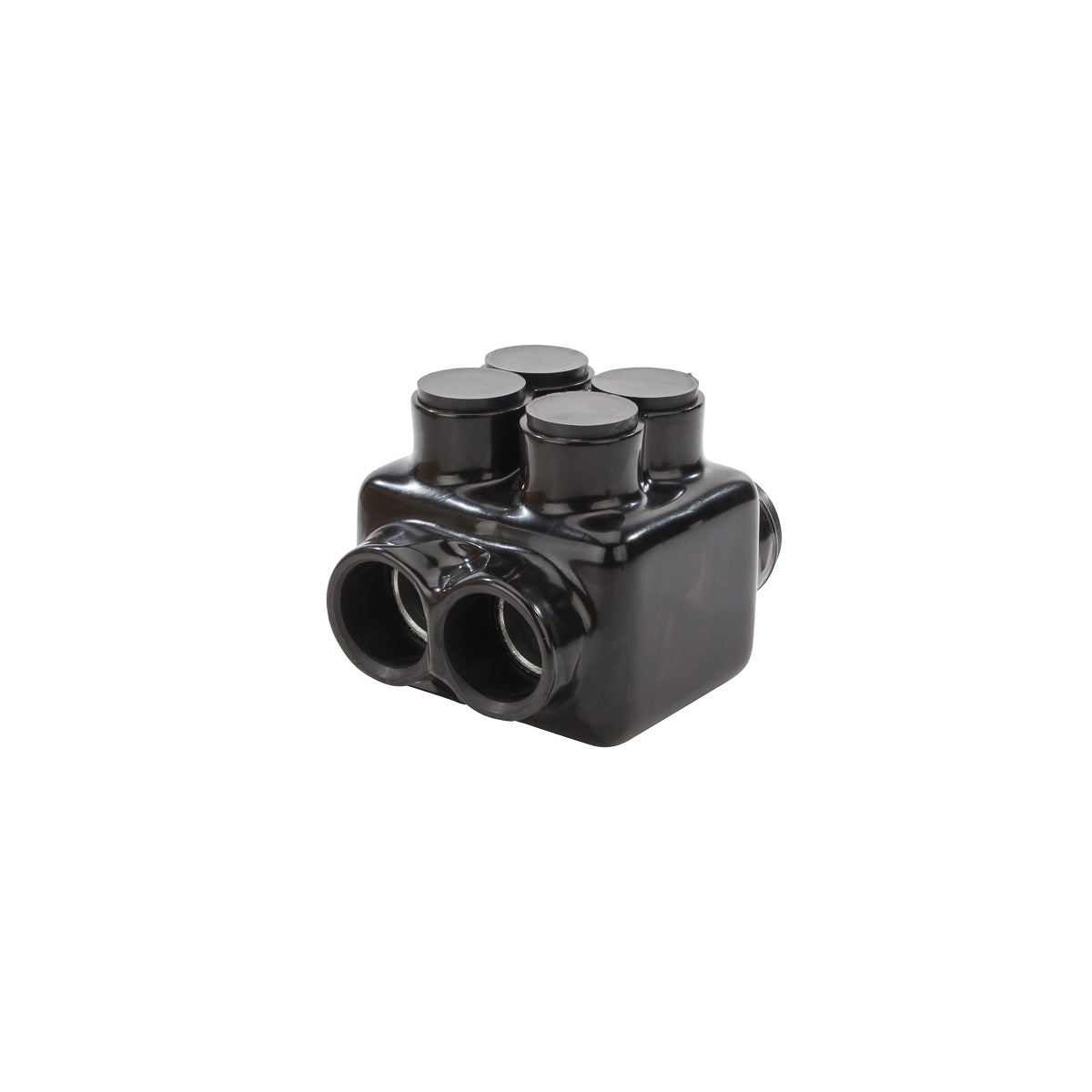

Polaris™ Ins HD 2 Port 750 Heavy Duty Tap Connector

The Polaris™ Ins HD 2 Port 750 is a heavy-duty insulated tap connector designed for wire termination applications. Manufactured by NSI Industries, this connector is suitable for electrical distributors and switchgear suppliers requiring reliable connections for Class B & C wire types ranging from 750 to 250 MCM. The product features a plastisol insulated finish and an aluminum body, ensuring durability and resistance under demanding environmental conditions up to 90°C.

Specifications

• Application: Wire Termination
• Material: Aluminum
• Finish: Plastisol Insulated
• Color: Black
• Number of Conductors: 2
• Number of Poles: 1
• Wire Type: Class B & C
• Environmental Conditions: 90 °C
• Length: 3.48 in
• Width: 4.5 in
• Height: 3.5 in
• Product Weight: 1.75 lbs
• Manufacturer: NSI Industries
• Manufacturer Part #: ITH-750

Features

• Pre-insulated tap connector for connecting two wires
• Open wire entry ports on both sides for easy access
• Removable access plugs to close unused entry ports
• Abrasion and chemical resistant
• UV resistant and will not support combustion
• Rated for use with copper and aluminum cables
• UL Listed 486B wire connector for dry locations
• Temperature rating: 90°C, cold temperature rated to -45°C

Downloads & Links

• Catalog Page
• Product Advertisement
• Technical Drawing
