Polaris™ Ins Multi-Tap 4 3 Port SSE
SKU: #304403
Part: #IPL4-3
UPC: 662381910011
Polaris™ Ins Multi-Tap 4 3 Port SSE
SKU: #304403
Part: #IPL4-3
UPC: 662381910011
Total Price: $23.50 per each Sold in increments of 1 each
Description

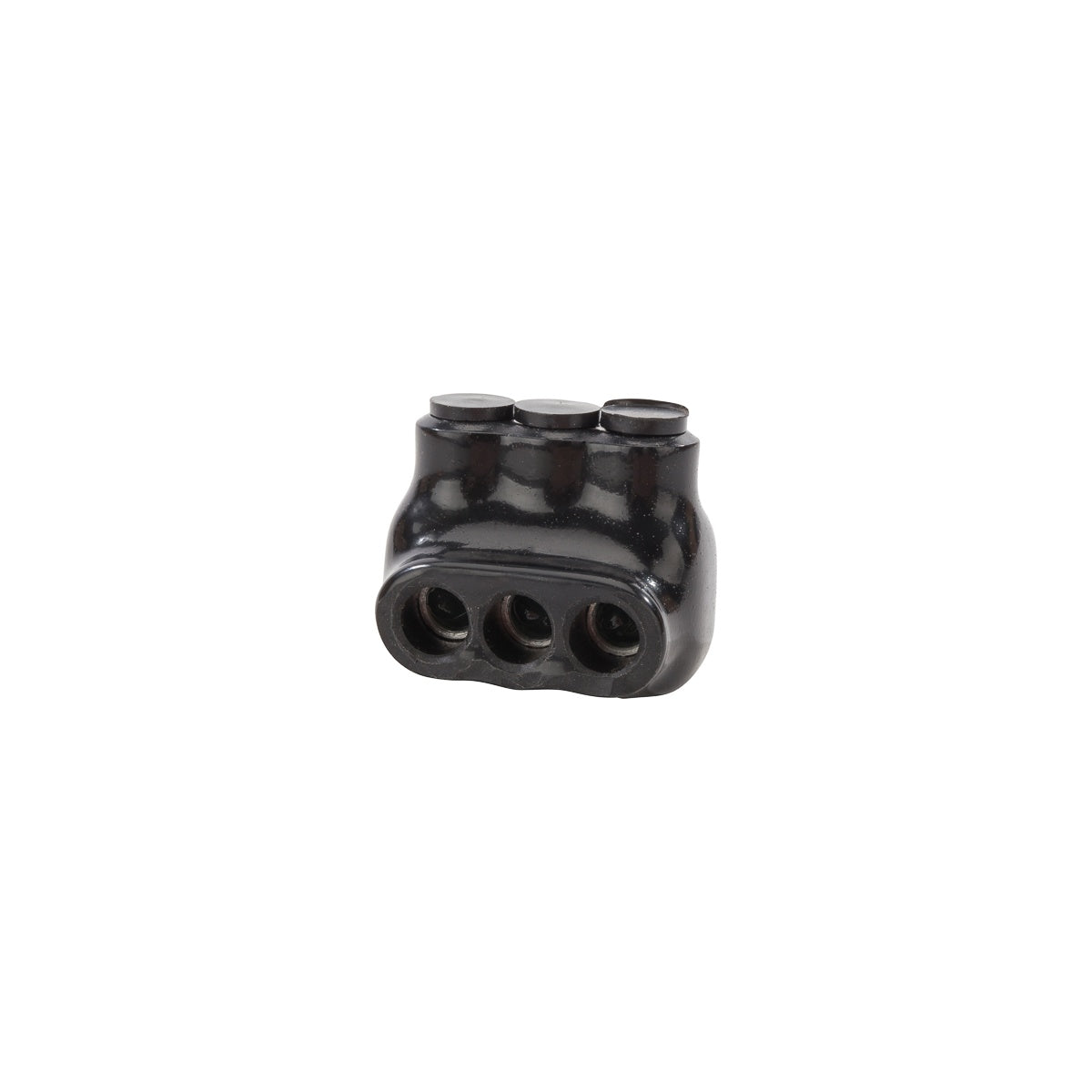

Polaris™ Ins Multi-Tap 4 3 Port SSE Wire Termination Connector
The Polaris™ Insulated Multi-Tap Connector is designed for reliable wire termination applications, supporting wire sizes from 4 to 14 AWG. This pre-insulated connector features a single-sided entry with three ports, making it suitable for electrical distributors and lighting solutions requiring secure, insulated wire connections. It is dual-rated for use with both copper and aluminum Class B & C wires, providing versatility for wire and cable installations in dry locations.
Specifications
- Application: Wire Termination
- Wire Range: 4-14 AWG
- Number of Conductors: 3
- Number of Poles: 1
- Material: Aluminum
- Finish: Plastisol Insulated
- Color: Black
- Dimensions (L x W x H): 1.55 in x 1.188 in x 1.375 in
- Product Weight: 0.0800 lbs
- Environmental Conditions: Rated for 90 °C
- Wire Type: Class B & C
- UL Listing: UL Listed 486B Wire Connector (Dry location)
- Voltage Rating: 600V
- Temperature Rating: Cold temperature rated to -45 °C, 90 °C max
- Manufacturer: NSI Industries
- Manufacturer Part #: IPL4-3
Features
- Single-side wire entry ports simplify installation
- Eliminates the need for cover and taping
- Insulated with high-dielectric strength plastisol for electrical safety
- Molded for precise fit with removable access plugs over hex screws
- Abrasion, chemical, and UV resistant
- Will not support combustion
