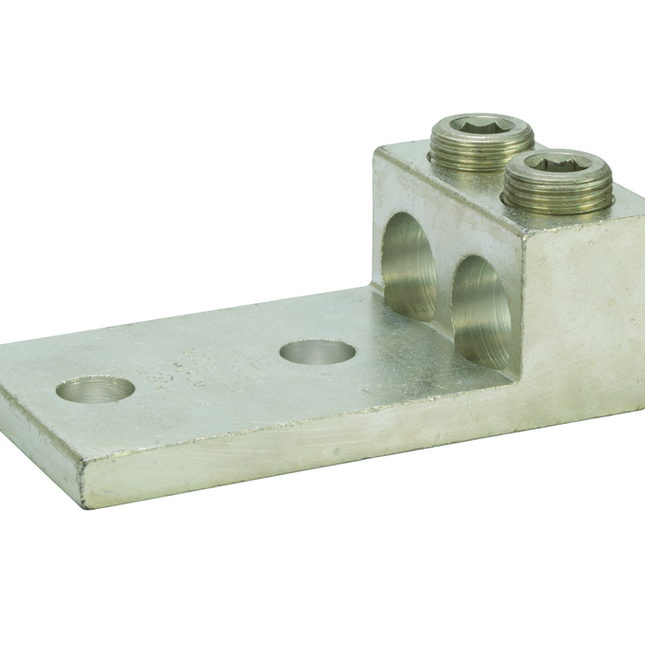

Description
Features
- Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- All hole spacing is NEMA standard of 1.750 inch
Certifications and Standards
- cULus
- UL Listed
- UL 486A-486B
Specifications
- Country of Origin: United States
- Length: 4.650 in
- Width: 2.406 in
- Height: 1.51 in
- Mounting Base: No
- Wire Range: 600 MCM - 2 AWG
- Field Application: Terminate
- FINISH: Tin Plated
- Future Plan: Rebrand as Polaris
- Hex Wrench Size: 3/8 IN
- INNER HEIGHT: 2.8500
- INNER LENGTH: 5.8500
- INNER WEIGHT: 1.8600
- INNER WIDTH: 4.3000
- MATERIAL: 6061T-6 Aluminum Alloy
- Max Temperature: 90 C
- Mounting Hole Position: 0.630 IN
- Number of Conductors/Circuits/Terminals: 2
- Product Assortment: Aluminum Mechanical Terminations
- Product Series: L
- Tang Thickness: 0.38 IN
- Tang Width: 2.406 IN
- VOLTAGE RATING: 600 V
- WARRANTY: 1 Year
- Tang Length: 3.4 IN
- Hole Spacing: 1.75 IN
- Conductor Type: Copper, Aluminum
More Information
Manufacturer Catalog Number
2-600L2
Weight
2.1
Length
4.65
Width
2.406
Height
1.51
Country of Origin
United States
Made in USA
Yes
Material
6061T-6 Aluminum Alloy
Color
Aluminum
Finish
Aluminum
Tang Length
3.4 inches
Tang Width
2.406 inches
Temperature Rating
90 C
Type
Panelboard Lug
Voltage
600 volts
Warranty Length
1 years
