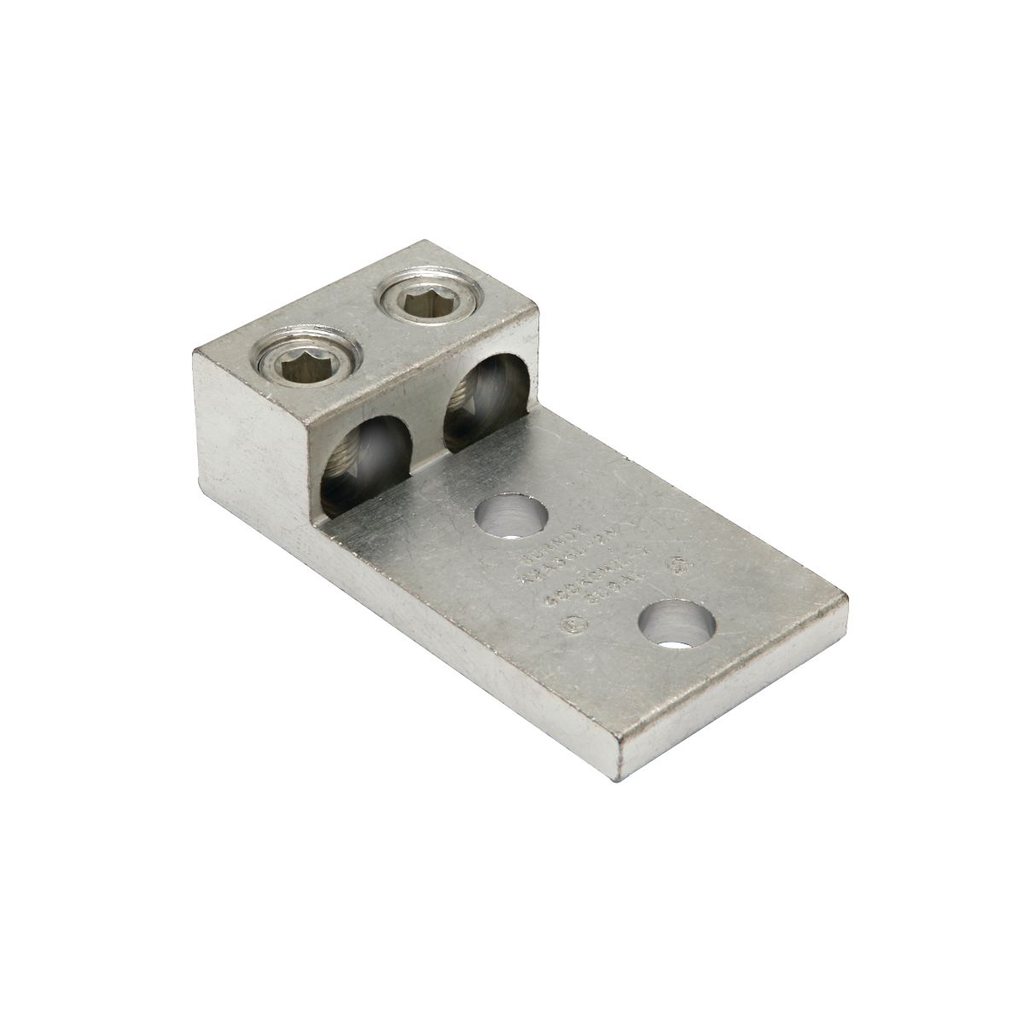

Features

• Dual rated panelboard lugs
• Constructed from high strength, extruded aluminum alloy
• Electro tin-plated to provide low contact resistance
• Universal terminal, Dual-rated two conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - AL Str Size: 2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil;336 kcmil;350 kcmil;397 kcmil;400 kcmil;450 kcmil;477 kcmil;500 kcmil;550 kcmil;556 kcmil;600 kcmil
• Conductor - AL Str Size Range: 2 Str. - 600 Kcmil
• Conductor - Copper Str Size: 2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil;350 kcmil;400 kcmil;450 kcmil;500 kcmil;550 kcmil;600 kcmil
• Conductor - Copper Str Size Range: 2 Str. - 600 Kcmil
• Description - Slang: 2 Cables to Flat
• Dimension - Bolt Hole Size inch: 0.50 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - D inch: 3.22 in
• Dimension - Height fraction: 1.4 in
• Dimension - Height inch: 1.39 in
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 119 mm
• Dimension - Length Overall inch: 4.69 in
• Dimension - N inch: 0.63 in
• Dimension - Pad Width inch: 2.42 in
• Dimension - Screw Size inch: 3/8
• Dimension - Stud Size inch: 1/2 in
• Dimension - Width fraction: 2-41/100 in
• Dimension - Width inch: 2.42 in
• Dimension - Width mm: 61 mm
• Width: 2.42 in
• Each - Width: 2.42 in
• Hardware Type: 3/8 UNC Slotted Set Screw
• Industry Standard(s): UL 486A-486B
• Installation Torque Recommended in-lb: 375 LBS/in
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Screw Type: Slot
• Plated: N
• Plating Type: Tin plated
• Product Type: TERMINAL
• Rating - Minimum Voltage: 600
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: EX
• Application: For Aluminum and Copper Conductors
• Number of Conductors: 2
• Number of Conductors/Ports (Main/Primary): 2
• Special Features: Universal terminal, Dual-rated two conductor lugs are constructed from high strength aluminum alloy and electro tin-plated to provide low contact resistance
• Standard: UL 486A-486B
• Sub Brand: UNIVERSAL TERM
• Temperature Rating: 194
• Type: Bolted Lugs & Terminals
• Conductor Size: 2 AWG-600 KCMIL
• Conductor Type: AL C Str-Size;CU C Str-Size
• Connector Type: Parallel Set-Screw
• Number Of Conductors: 2
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B51
• Description - Invoice: TWO:2STR-600 NEMA
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B51BGGF
• UL Listed: Yes
• Material: Aluminum
• Material - Hardware: Aluminum
• Base Unit of Measure: EA
• BOX SIZE: 0.000x0.000x0.000 (in)
• Carton - Gross Weight per Pack: 0.000 lb.
• Carton - Number of Sub Packs: 54
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810600351
• Carton - Total Units: 54 EA
• Case - SCC-14 Next Lower Level Sub Pack: 30781810600352
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 1.95 lb.
• Package - GTIN - Package: 30781810600352
• Package - Number of Sub Packs: 3
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810600351
• Package - Total Units: 3 EA
• Package Height: 6.875 in
• Package Length: 2.125 in
• Package Quantity: 3 EA
• Package Weight: 1.95 lb.
• Package Width: 3 in
• Standard Package Quantity: 3

Certifications

• CSA Approved: Yes
• UL Listed Direct Burial: No
• EU RoHS Indicator: Yes
