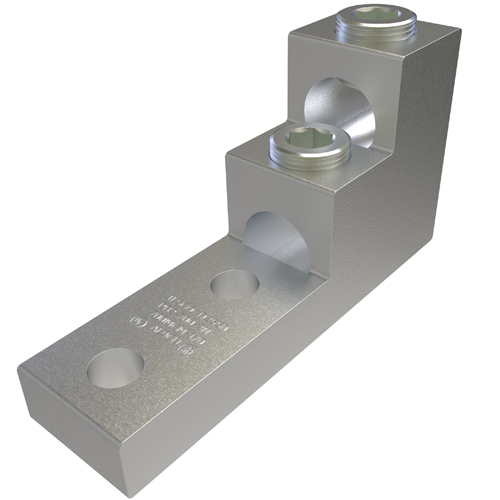

Specifications

• Height: 3 in | 76.2 mm
• Length: 5.687 in | 144.4498 mm
• Weight: 1.589 lbs
• Width: 1.563 in | 39.7002 mm

Additional Class Attributes

• Connection: Mechanical
• Contains DE-OX®: No
• Mounting Hole Type: Thru
• Number of Conductors: 2
• Number of Mounting Holes: 2
• Number of Poles: 1
• Number of Ports / Wireways: 2
• Wire Orientation: Perpendicular

Additional Technical Specifications

• Conductor Type: Stranded

Dimensions

• Dimension G (IN): 0.625
• Drive Size Main: 1/2
• Drive Type Main: Internal Hex
• Height BX (IN): 3.125
• Height (mm): 76.2
• Length (mm): 144.4498
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (IN): 1.75
• Mounting Hole Spacing (mm): 44.45
• Tang Length (IN): 3.125
• Tang Length (mm): 79.375
• Tang Thickness (IN): 0.75
• Tang Thickness (mm): 19.05
• Tang Width (IN): 1.563
• Tang Width (mm): 39.7002
• Weight BX (LB): 1.7223
• Width BX (IN): 3.875
• Width (mm): 39.7002

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum
• Wire Binding Hardware Finish: Tin
• Wire Binding Hardware Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2
• Number of Wire Binding Screws per Port: 1
• Wire Binding Screw Size: 15/16
• Wire Binding Torque: 500

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil - 1/0 Str

Color

• Color: Silver

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• ROHS Indicator: COM
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 1
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366919541
