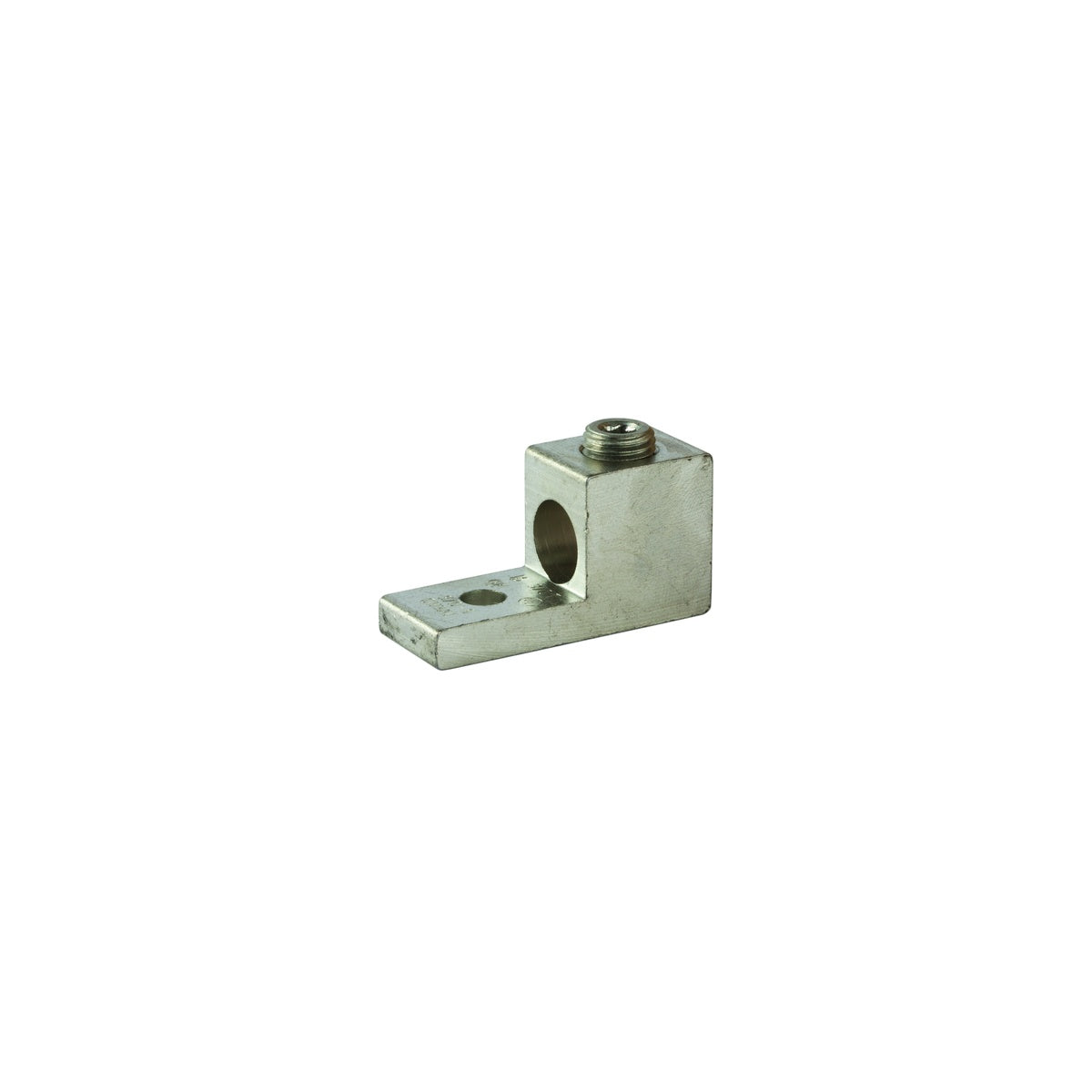

Aluminum Single Lug 600 MCM-2 AWG Dual Rated
SKU: #303513
Part: #600T
UPC: 662381001108
Aluminum Single Lug 600 MCM-2 AWG Dual Rated
SKU: #303513
Part: #600T
UPC: 662381001108
Description
Aluminum Single Lug 600 MCM-2 AWG Dual Rated Electrical Connector
This aluminum single lug is designed for reliable electrical connections in wire and cable applications. Manufactured by NSI Industries, it features a reusable set screw connector made from 6061T-6 aluminum alloy with a tin-plated finish to ensure low contact resistance. Suitable for use with both copper and aluminum conductors, it supports a temperature rating of 90 degrees Celsius and a voltage rating of 600 volts (2000V max per UL486B). Ideal for electrical distributors and switchgear suppliers requiring durable and certified lug solutions.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Temperature Rating: 90 degrees Celsius
- Voltage Rating: 600 volts (2000V max per UL486B)
- Dimensions: 3.18 in (Length) x 1.51 in (Height) x 1.38 in (Width)
- Weight: 2.16 lbs
- UL Listing: UL 486A/B Listed
- Country of Origin: United States
- Manufacturer Part #: 600T
- Order Minimum: 1
Features
- Reusable set screw connector for secure attachment
- Electro-tin plated for low contact resistance
- Dual rated for use with both copper and aluminum conductors
- Made in the USA for quality assurance
