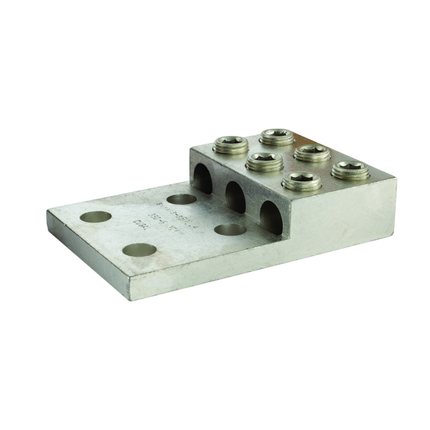

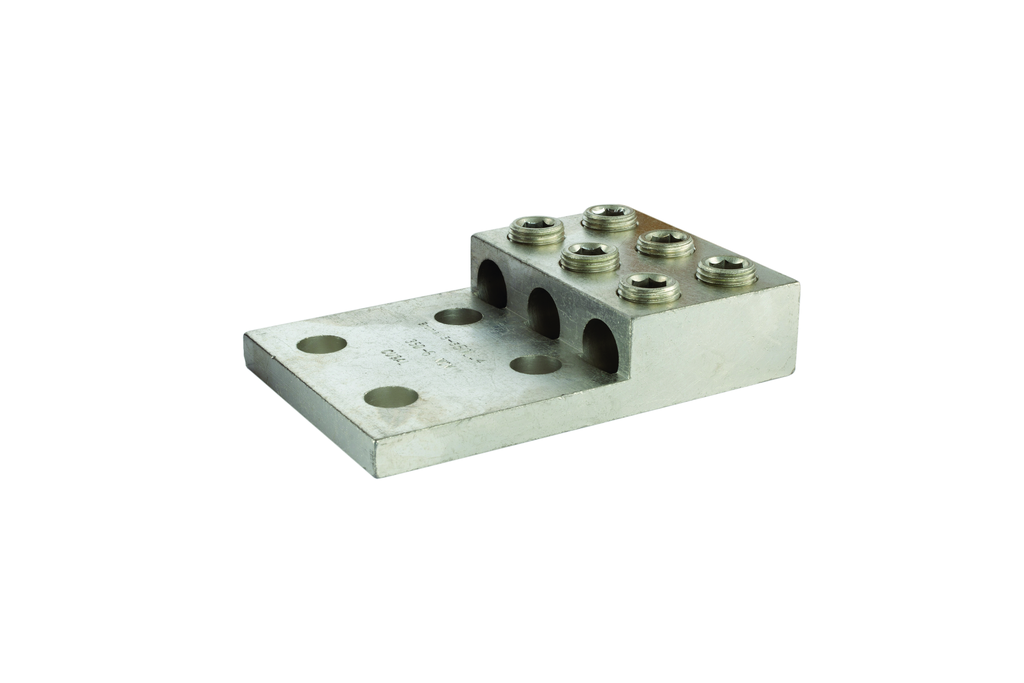

Features

• Large size set-screw connectors with multiple mounting, NEMA spaced holes for a secure, turn-prevent connection
• Made of 6061T-6 aluminum alloy
• Tin plated for low contact resistance
• For use with copper or aluminum conductors
• All hole spacing is NEMA standard of 1.758 inch

Certifications and Standards

• cULus
• UL Listed
• UL 486A-486B

Specifications

• Country of Origin: United States
• Length: 5.500 in
• Width: 3.930 in
• Height: 1.51 in
• Mounting Base: No
• Wire Range: 600 MCM - 2 AWG
• Field Application: Terminate
• FINISH: Tin Plated
• Future Plan: Rebrand as Polaris
• Hex Wrench Size: 3/8 IN
• INNER HEIGHT: 3.1500
• INNER LENGTH: 8.8000
• INNER WEIGHT: 2.9900
• INNER WIDTH: 6.1500
• MATERIAL: 6061T-6 Aluminum Alloy
• Max Temperature: 90 C
• Mounting Hole Position: 0.630 IN
• Number of Conductors/Circuits/Terminals: 3
• Product Assortment: Aluminum Mechanical Terminations
• Product Series: LL4
• Tang Thickness: 0.38 IN
• Tang Width: 3.93 IN
• UL File #: E155027
• VOLTAGE RATING: 600 V
• WARRANTY: 1 Year
• Tang Length: 3.25 IN
• Hole Spacing: 1.758 IN
• Conductor Type: Copper, Aluminum
