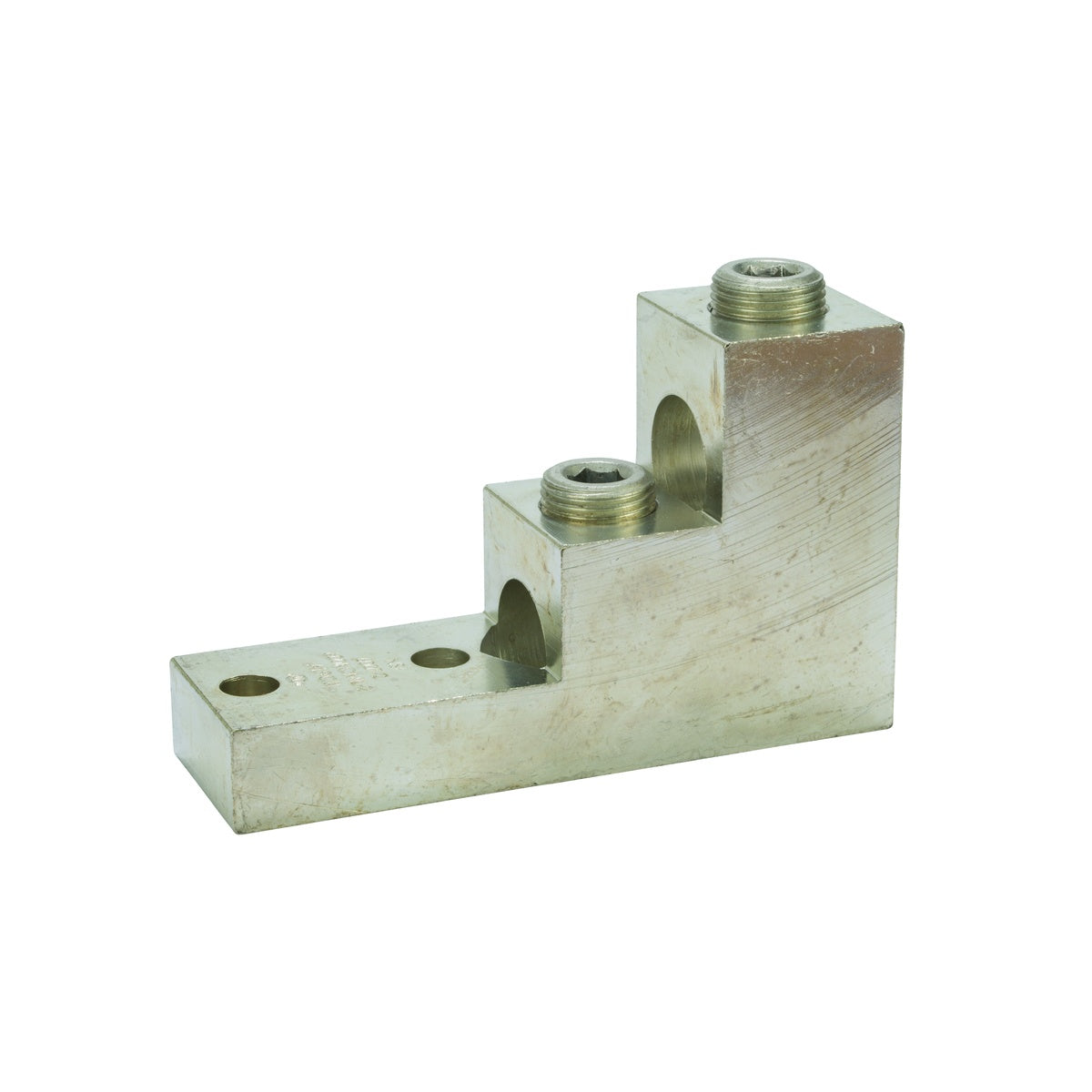

Step Panel Lug 600-2 Electrical Connector

The NSI Industries Step Panel Lug 600-2 is a 2-port stacked lug designed for efficient electrical connections in wire and cable installations. This lug is suitable for use with both copper and aluminum conductors, providing reliable conductivity for electrical distributors and switchgear suppliers. Its compact stacked design minimizes connector width, optimizing space in panel applications.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000V max. per UL486B)
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Spacing: NEMA standard 1.75 inches
• Dimensions (L x W x H): 4.91 in x 1.5 in x 3 in
• Order Minimum: 1 unit
• Product Weight: 1.8 lbs
• Manufacturer Part #: 600T-2
• Country of Origin: United States
• UL Listing: UL486A/B Listed

Features

• Stacked lug design reduces connector width for space-saving installations
• Tin plating ensures low contact resistance and corrosion resistance
• Compatible with both copper and aluminum conductors
• Constructed from durable 6061T-6 aluminum alloy
• Meets industry standards for electrical safety and performance
• Made in USA for quality assurance
