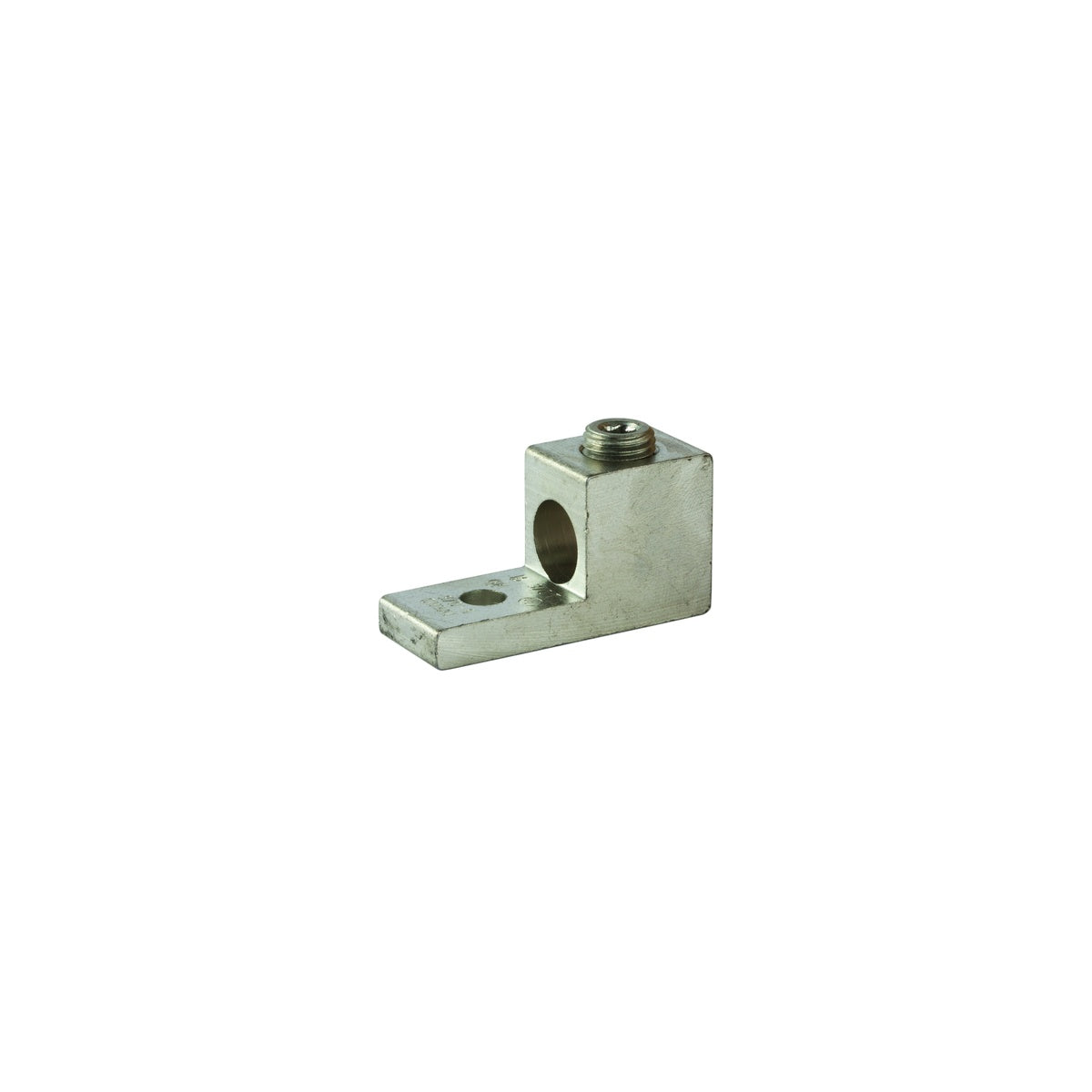

Dual Rated Lug 250-6 Aluminum Single Lug

The Dual Rated Lug 250-6 is a versatile aluminum single lug designed for wire termination applications. Manufactured by NSI Industries, this lug is suitable for use with both copper and aluminum conductors, making it an essential component for electrical distributors and switchgear suppliers. Its construction from 6061T-6 aluminum alloy and electro-tin plating ensures low contact resistance and reliable performance in lighting solutions and wire and cable installations.

Specifications

• Material: Aluminum
• Finish: Aluminum
• Color: Aluminum
• Length: 2 in
• Width: 0.88 in
• Height: 1.02 in
• Max. Temperature: 90 degrees Celsius
• Rated Voltage: 600 volts (2000V max. per UL486B)
• Weight: 2.64 lbs
• Application: Wire Termination
• Manufacturer Part #: 250T
• Country of Origin: United States
• UL Listing: UL 486A/B Listed

Features

• Made from 6061T-6 aluminum alloy for durability and conductivity
• Electro-tin plated to reduce contact resistance
• Compatible with copper and aluminum conductors
• Reusable set screw connector design
• Temperature rating of 90°C for reliable operation in various environments
• Dual rated for versatile electrical applications
• Manufactured in the USA
