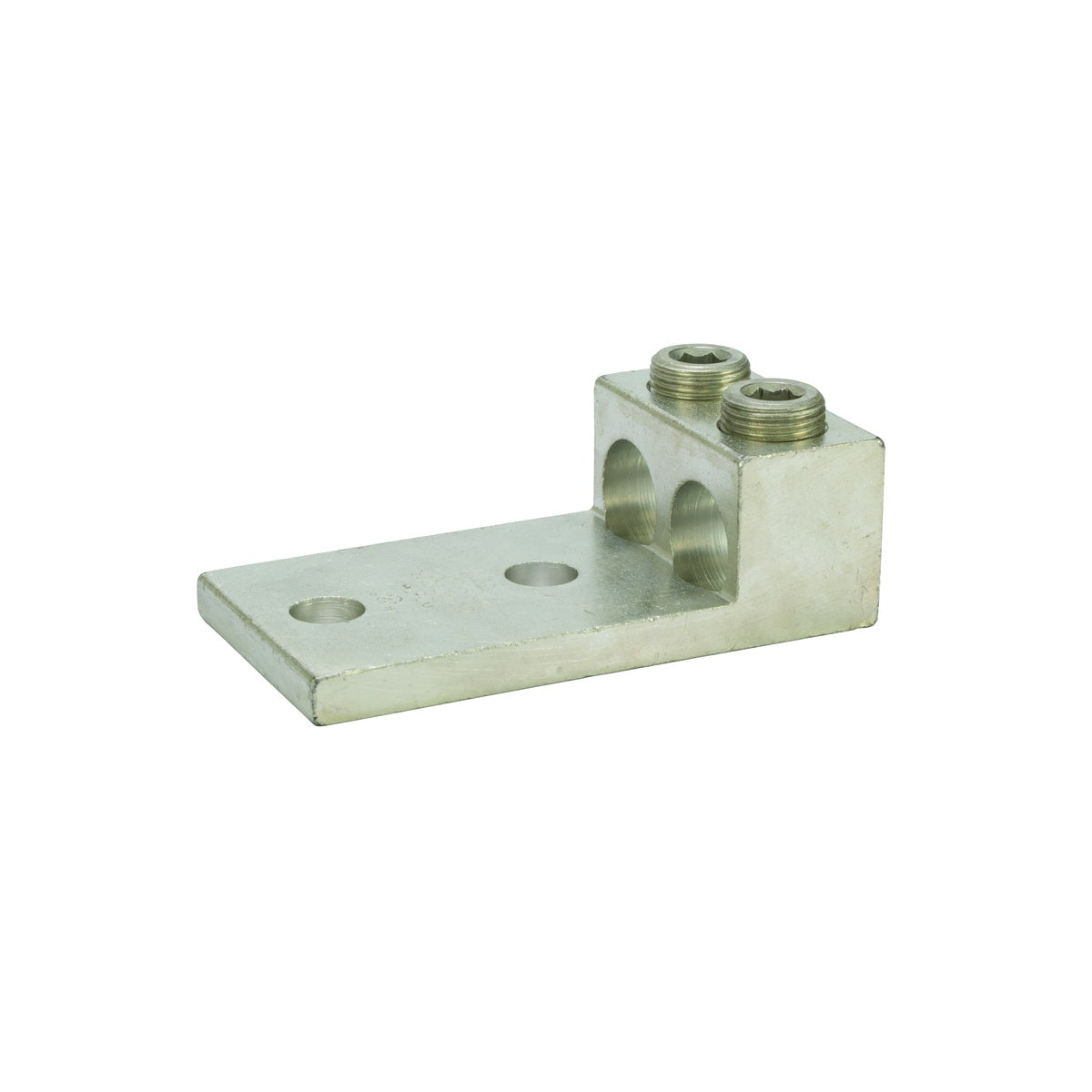

Nema Panel Lug (2)600-2 – Electrical Wire Termination Lug

This Nema Panel Lug (2)600-2 is designed for wire termination applications in electrical distribution systems. It features a panelboard style suitable for multi-conductor connections with NEMA mounting hole spacing to prevent turning and ensure secure installation. Manufactured from 6061T-6 aluminum alloy with an electro-tin plated finish, it provides low contact resistance and compatibility with both copper and aluminum conductors. Rated for 600 volts and UL 486A/B listed, it supports a maximum temperature of 90 degrees Celsius, making it suitable for demanding electrical environments. This product is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable termination solutions.

Specifications

• Application: Wire Termination
• Material: 6061T-6 Aluminum Alloy
• Finish: Aluminum (Electro-tin plated)
• Voltage Rating: 600 volts (2000V max per UL486B)
• Temperature Rating: 90 degrees Celsius
• Dimensions (L x W x H): 4.65 in x 2.406 in x 1.51 in
• Mounting Hole Spacing: NEMA standard 1.750 in
• Manufacturer: NSI Industries
• Manufacturer Part #: 2-600L2
• Country of Origin: United States
• Weight: 2.1 lbs
• UL Listing: UL 486A/B Listed
• Compatible Conductors: Copper or Aluminum

Features

• Panelboard style lug for multi-conductor use
• NEMA mounting hole spacing for secure installation and turn prevention
• Electro-tin plated surface for low contact resistance
• Suitable for copper and aluminum conductors
• Made in USA
