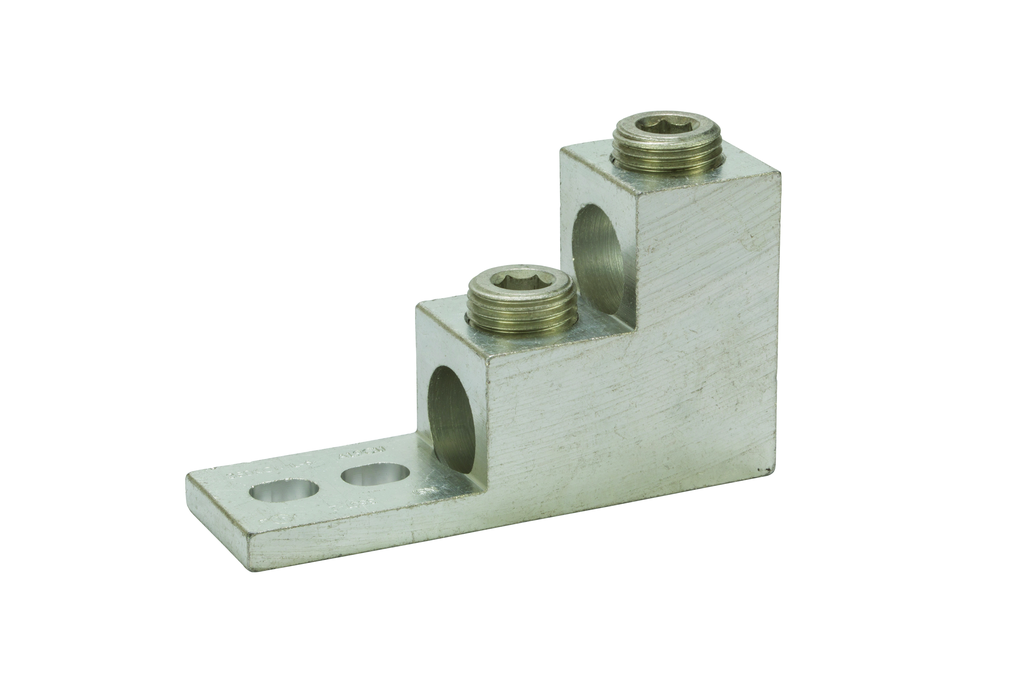

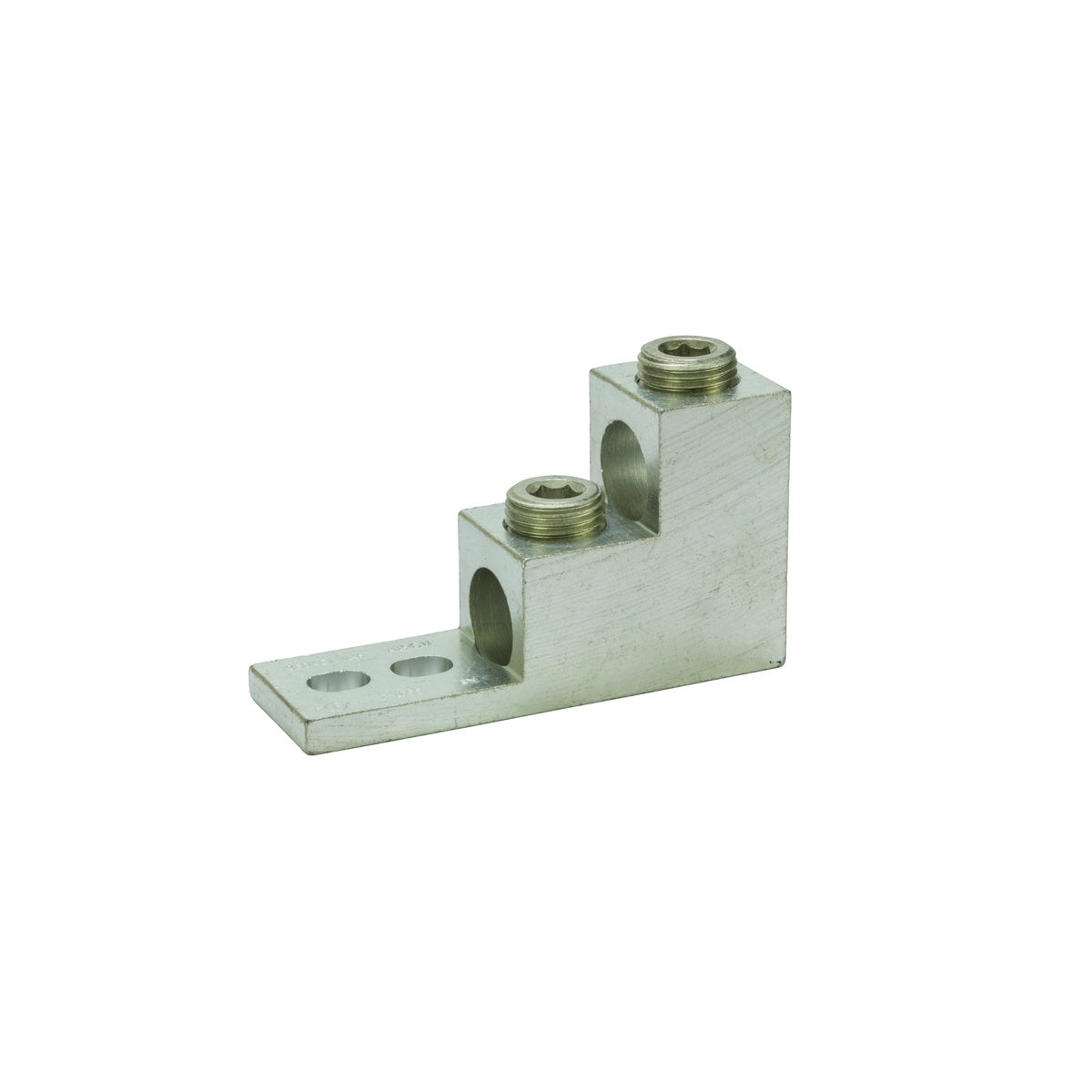

Step Panel Lug Two 350-6 Electrical Connector

The Step Panel Lug Two 350-6 is a 2-port stacked lug designed for compact electrical connections in wire and cable installations. Manufactured by NSI Industries, this lug features a 6061T-6 aluminum alloy construction with a tin-plated finish to ensure low contact resistance. Suitable for use with both copper and aluminum conductors, it is UL486A/B listed and rated for 600 volts with a maximum of 2000 volts per UL486B. Its temperature rating is 90 degrees Celsius, making it suitable for various electrical distributor and switchgear supplier applications.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Voltage Rating: 600 volts (2000 volts max. per UL486B)
• Temperature Rating: 90 degrees Celsius
• Mounting Hole Spacing: NEMA standard 1.75 inches
• Dimensions: Length 3.56 in, Width 1.06 in, Height 2 in
• Manufacturer Part #: 350T-2
• Country of Origin: United States
• Product Weight: 2.9 lbs
• Order Minimum: 1 unit

Features

• 2 Port stacked lug design minimizes connector width
• Tin plating reduces contact resistance for reliable connections
• Compatible with copper and aluminum conductors
• UL486A/B Listed for safety and compliance
• Made in the USA for quality assurance
