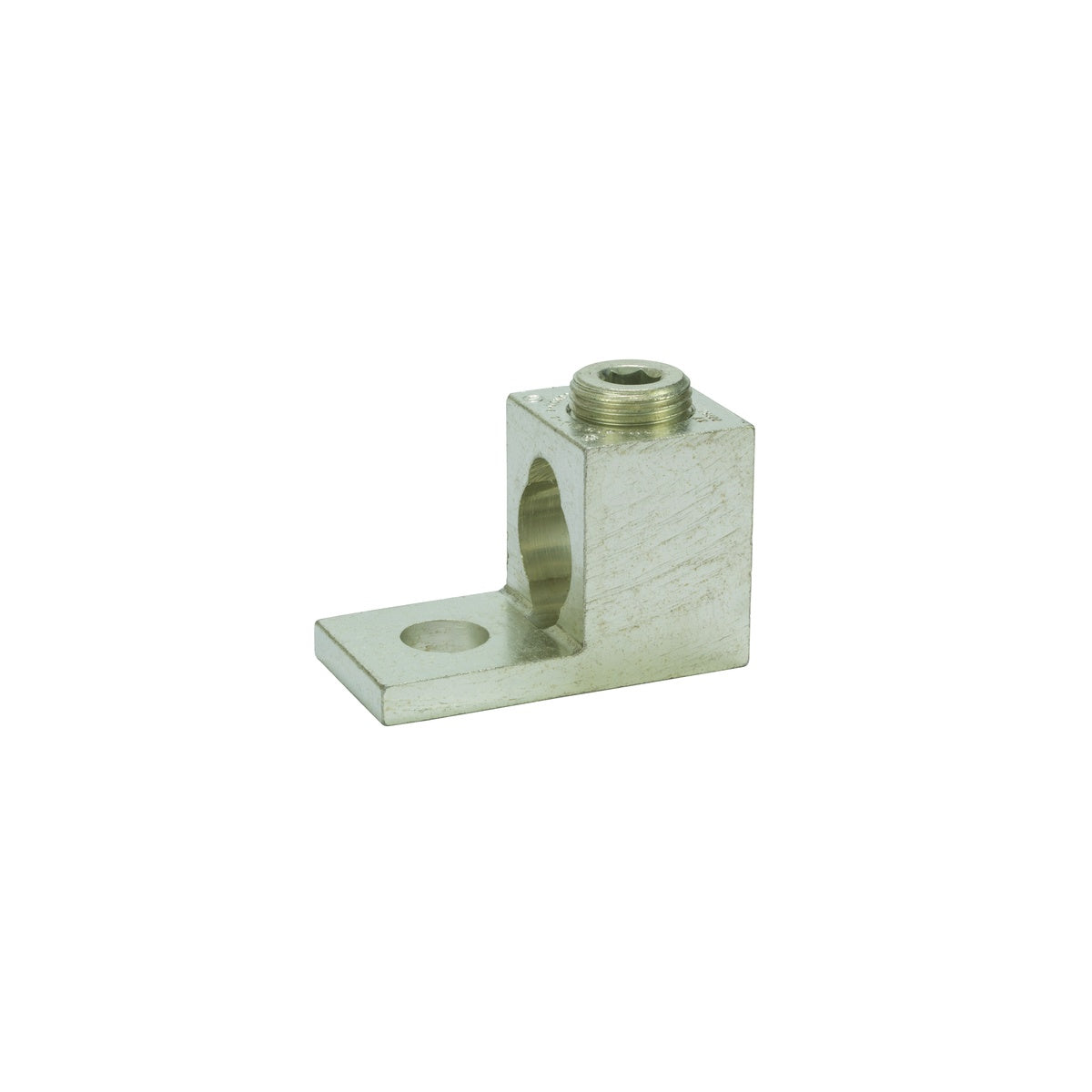

Aluminum Dual Range Lug | 600 MCM-4 AWG and 250 MCM-1/0 AWG Electrical Connector

This Aluminum Dual Range Lug is designed for secure electrical connections, accommodating either one 600 MCM to 4 AWG wire or two 250 MCM to 1/0 AWG wires. Manufactured from 6061T-6 aluminum alloy with a tin-plated finish, it ensures low contact resistance and compatibility with copper or aluminum conductors. Suitable for use by electrical distributors and switchgear suppliers within wire and cable applications, it is rated for 600 volts with a maximum 2000V per UL486B and a temperature rating of 90°C.

Specifications

• Material: 6061T-6 Aluminum Alloy
• Finish: Tin-Plated
• Dimensions (L x W x H): 2.81 in x 1.38 in x 1.81 in
• Voltage Rating: 600 Volts (2000V max. per UL486B)
• Temperature Rating: 90 degrees Celsius
• Manufacturer: NSI Industries
• Manufacturer Part #: BS400T
• Country of Origin: United States
• Product Weight: 27.8 lbs
• Order Minimum: 1

Features

• Dual range lug accepts either one or two wires
• Electro-pin plated for low contact resistance
• Compatible with copper or aluminum conductors
• UL 486A/B Listed for safety and compliance
• Made in the USA
