Description

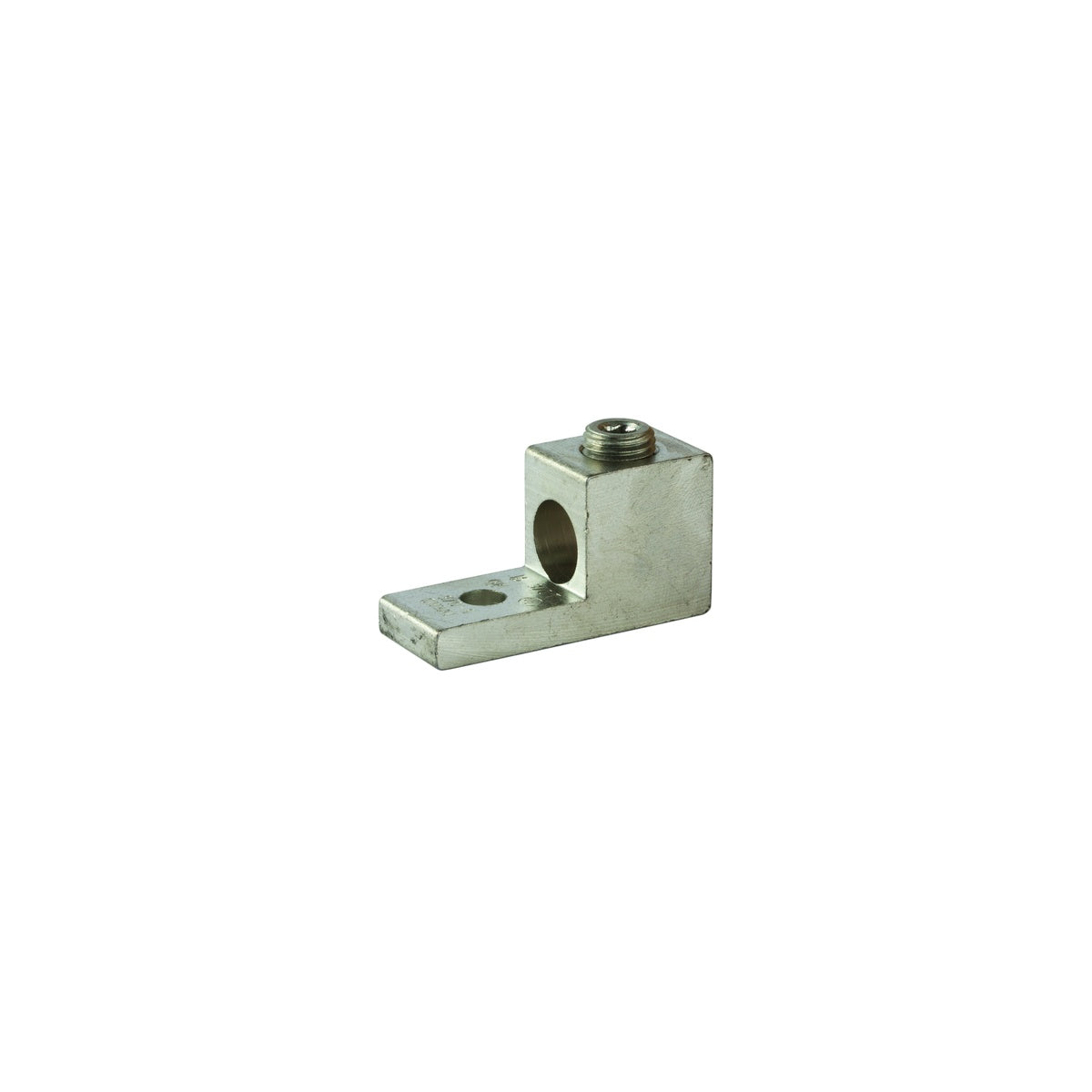

Aluminum Dual-Rated Single Lug 3/0-6 AWG Electrical Connector
This aluminum dual-rated single lug is designed for wire termination applications, suitable for use with copper or aluminum conductors. It features a reusable set screw connector made from 6061T-6 aluminum alloy and is electro-tin plated to ensure low contact resistance. This product is ideal for electrical distributors and switchgear suppliers requiring reliable, durable connectors for wire and cable management.
Specifications
- Material: Aluminum
- Finish: Tin-Plated
- Wire Size Range: 3/0-6 AWG
- Bolt Size: 1/4 Inch
- Maximum Temperature Rating: 90 degrees Celsius
- Voltage Rating: 600 volts (2000V max. per UL486B)
- Dimensions (L x W x H): 1.875 in x 0.7 in x 0.89 in
- Product Weight: 2.5 lbs
- UL Listing: UL 486A/B Listed
- Country of Origin: United States
- Made in USA: Yes
- Manufacturer: NSI Industries
- Manufacturer Part #: 3/0T
Features
- Dual-rated for use with both copper and aluminum conductors
- Reusable set screw connector for secure wire termination
- Constructed from durable 6061T-6 aluminum alloy
- Electro-tin plating reduces contact resistance
- Rated for high temperature and voltage applications
