Morris Products
MORRIS 90920 750 3COND PANELBOARD LUG
SKU: #277205
Part: #90920
UPC: 601986909204
Morris Products
MORRIS 90920 750 3COND PANELBOARD LUG
SKU: #277205
Part: #90920
UPC: 601986909204
Description

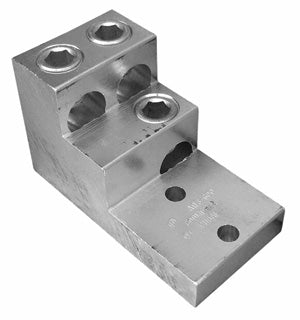

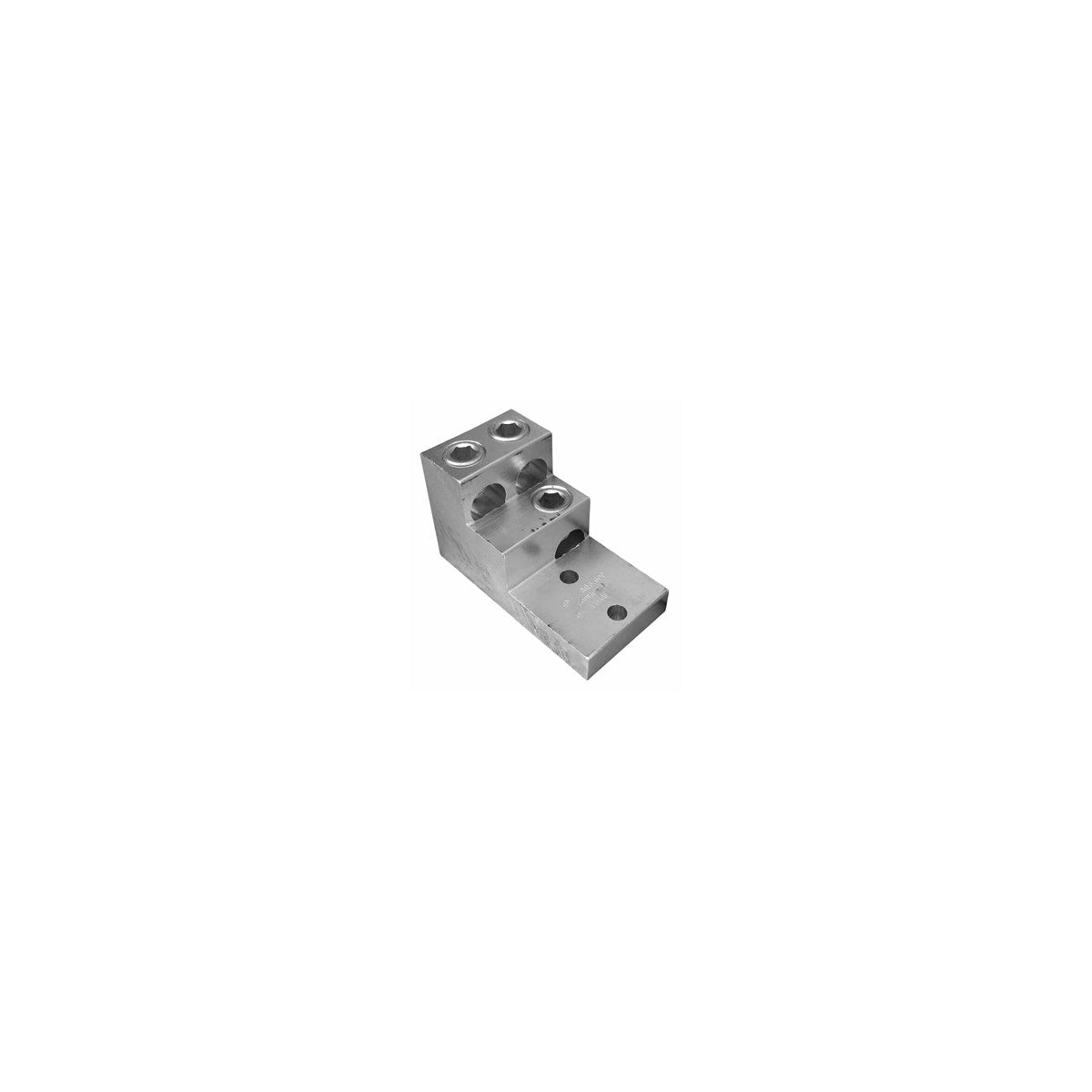

MORRIS 90920 750 3COND PANELBOARD LUG – Aluminum Mechanical Lug
The MORRIS 90920 panelboard lug is designed for secure and efficient electrical connections in panelboards, suitable for both copper and aluminum conductors. Manufactured from 6061-T6 aluminum alloy, this lug supports wire sizes up to 750 MCM with a 3-conductor configuration. It is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable termination components within lighting solutions and power distribution systems.
Specifications
- Manufacturer Part #: 90920
- Material: 6061-T6 Aluminum
- Wire Range: 750 MCM - 3/0 Stranded
- Number of Conductors: 3
- Dimensions (L x W x H): 4.94 in x 2.63 in x 3.00 in
- Mounting Hole Quantity: 1
- Hole Spacing: 1.38 in
- Product Weight: 3.1220 lbs
- Rated Voltage: 600V (per UL486B listing for similar lugs)
Features
- Made from high-strength 6061-T6 aluminum alloy for durability and corrosion resistance
- Tin plated for low contact resistance and improved conductivity
- Set screw connectors with turn prevent feature to eliminate connector movement
- Compatible with both copper and aluminum conductors
- UL486B Listed ensuring compliance with industry safety standards
