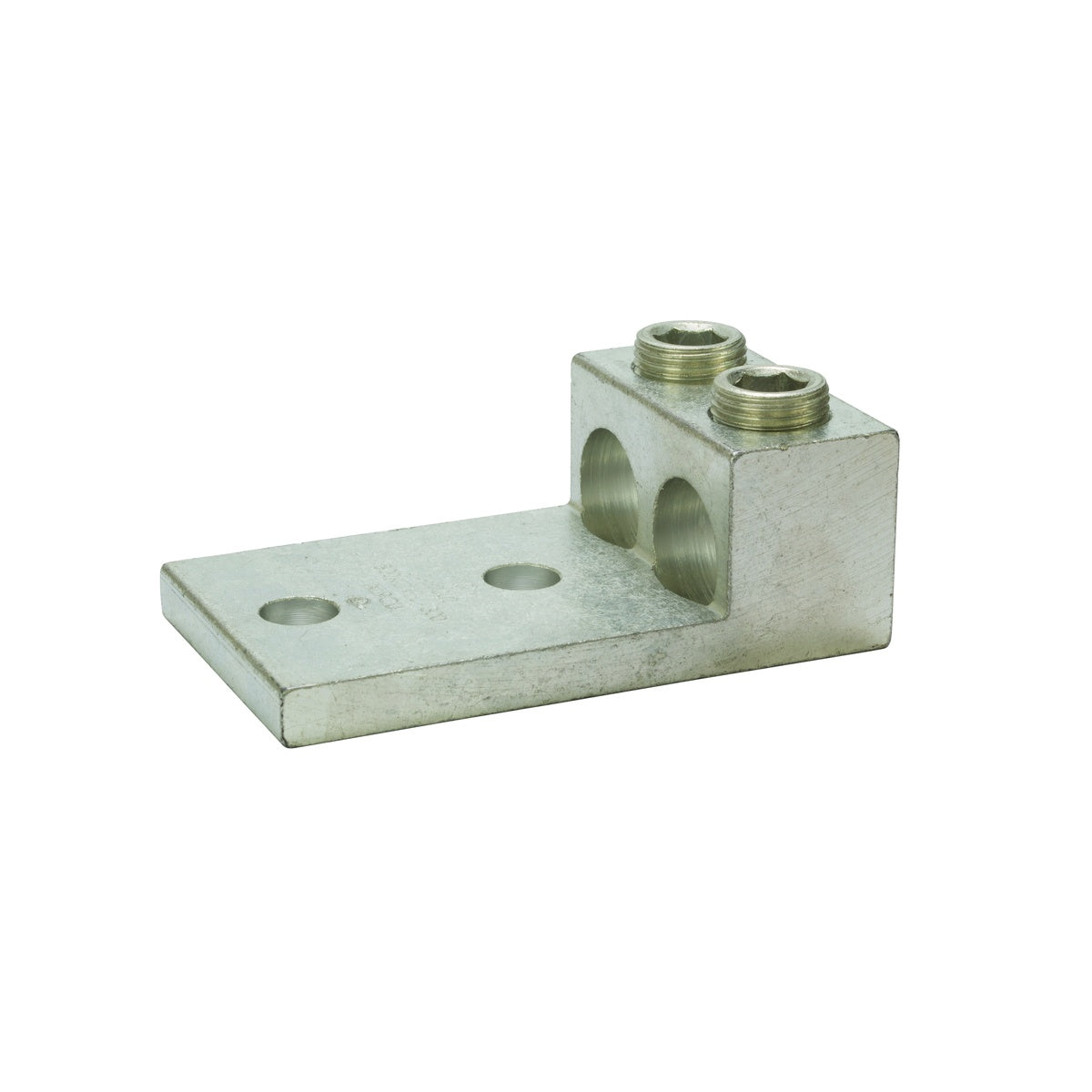

Nema Panel Lug (2)800-300
SKU: #303449
Part: #2-800L2
UPC: 662381001436
Nema Panel Lug (2)800-300
SKU: #303449
Part: #2-800L2
UPC: 662381001436
Description
Nema Panel Lug (2)800-300 – Electrical Wire Termination Lug
This Nema Panel Lug is designed for wire termination applications in electrical distribution systems. It supports multi-conductor connections with panelboard style mounting, featuring NEMA-standard hole spacing to ensure secure and reliable installation. Suitable for use with copper or aluminum conductors, it is ideal for electrical distributors and switchgear suppliers requiring durable and compliant wire and cable accessories.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Aluminum Electro-tin Plated
- Color: Aluminum
- Dimensions: 4.75 in (L) x 2.75 in (W) x 1.69 in (H)
- Maximum Temperature Rating: 90 degrees Celsius
- Voltage Rating: 600 volts (2000V max per UL486B)
- Application: Wire Termination
- UL Listing: UL 486A/B Listed
- Country of Origin: United States
- Product Weight: 1.8 lbs
- Manufacturer Part Number: 2-800L2
Features
- Panelboard style lug with two ports for multi-conductor termination
- NEMA standard hole spacing of 1.750" for secure mounting and turn prevention
- Electro-tin plating reduces contact resistance for improved conductivity
- Compatible with both copper and aluminum conductors
- Manufactured in the USA ensuring quality and compliance
