AluminumTurn Prevent Lug 600 MCM-2 AWG
SKU: #303538
Part: #600TP
UPC: 662381002433
AluminumTurn Prevent Lug 600 MCM-2 AWG
SKU: #303538
Part: #600TP
UPC: 662381002433
Description

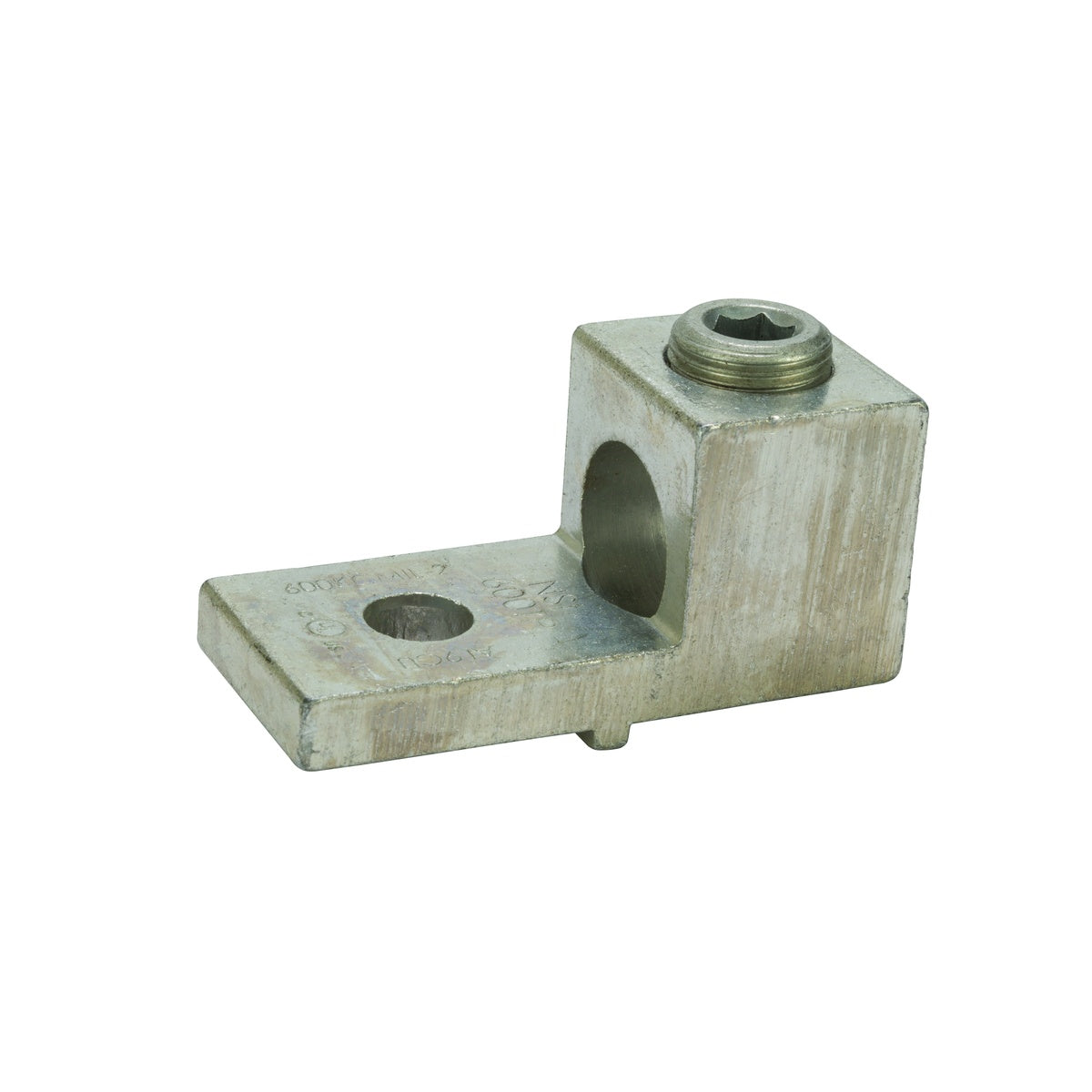

AluminumTurn Prevent Lug 600 MCM-2 AWG Electrical Connector
The Aluminum Turn Prevent Lug 600 MCM-2 AWG is designed for wire termination applications, providing reliable connections for both copper and aluminum conductors. Manufactured from 6061T-6 aluminum alloy with a tin-plated finish, this lug ensures low contact resistance and durability. Rated for 600V with a maximum of 2000V per UL486B, it is suitable for use in electrical distribution and switchgear assemblies.
Specifications
- Material: 6061T-6 Aluminum Alloy
- Finish: Tin-Plated
- Application: Wire Termination
- Voltage Rating: 600V (2000V max per UL486B)
- Temperature Rating: 90 degrees Celsius
- Number of Poles: 1
- Dimensions: 3.18 in (Length) x 1.51 in (Height) x 1.38 in (Width)
- Weight: 1.7280 lbs
- Bolt Size: 1/2 Inch
- Country of Origin: United States
- Manufacturer Part #: 600TP
- Environmental Conditions: 90°C
Features
- Dual rated for use with copper and aluminum conductors
- Electro-tin plated for low contact resistance
- UL 486A/B Listed for safety and reliability
- Made in USA ensuring quality manufacturing standards
