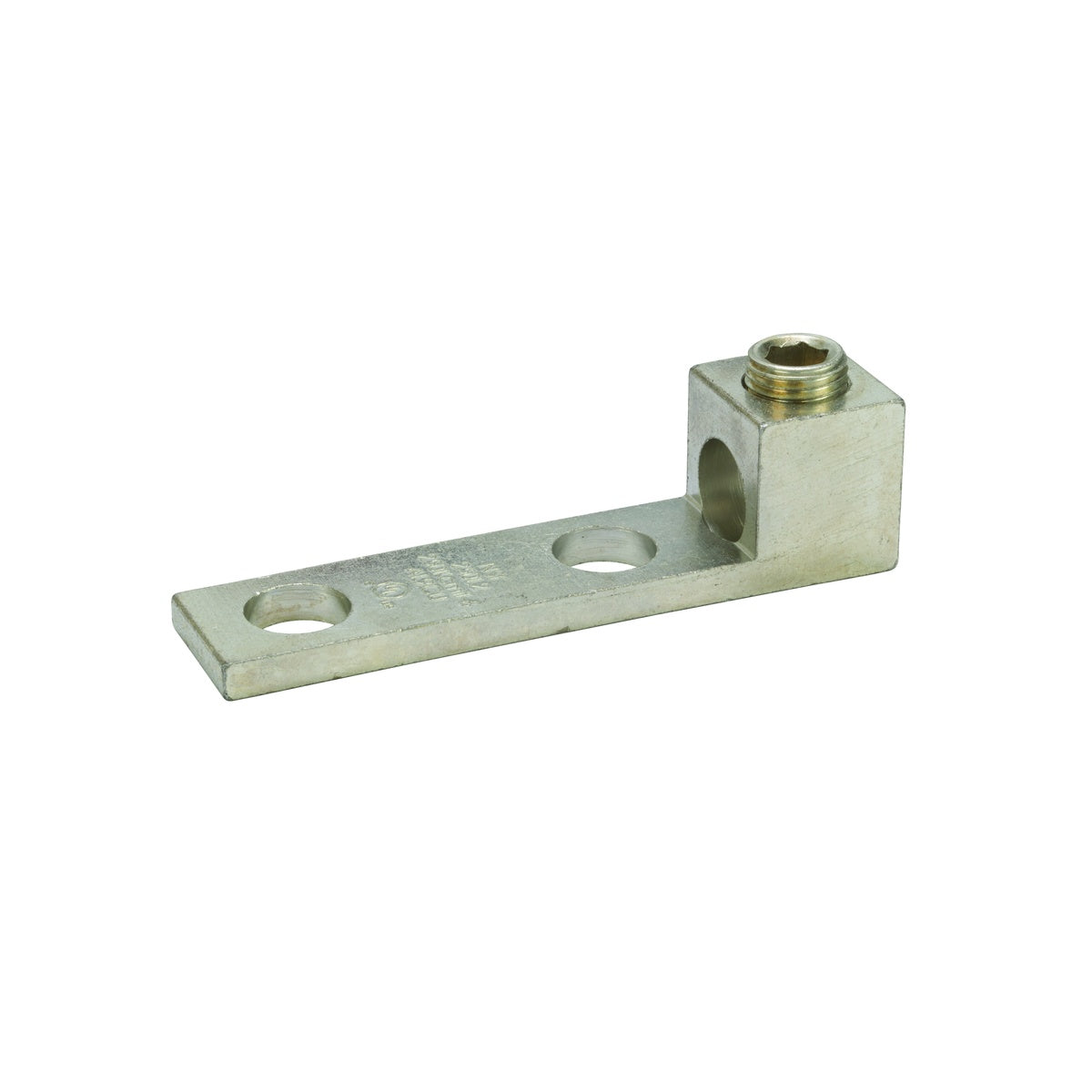

Description
Features
- Panelboard style for multi-conductor with NEMA mounting hole spacing for turn-prevent and secureness
- Made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- All hole spacing is NEMA standard of 1.750 inch
Certifications and Standards
- cULus
- UL Listed
- UL 486A-486B
Specifications
- Country of Origin: United States
- Length: 4.310 in
- Width: 0.880 in
- Height: 1.38 in
- Mounting Base: No
- Wire Range: 250 MCM - 6 AWG
- Field Application: Terminate
- FINISH: Tin Plated
- Future Plan: Rebrand as Polaris
- Hex Wrench Size: 5/16 IN
- INNER HEIGHT: 3.0500
- INNER LENGTH: 8.7500
- INNER WEIGHT: 1.8200
- INNER WIDTH: 6.1500
- MATERIAL: 6061T-6 Aluminum Alloy
- Max Temperature: 90 C
- Mounting Hole Position: 0.560 IN
- Product Assortment: Aluminum Mechanical Terminations
- Product Series: L
- Tang Thickness: 0.31 IN
- Tang Width: 0.88 IN
- VOLTAGE RATING: 600 V
- WARRANTY: 1 Year
- Tang Length: 3.09 IN
- Hole Spacing: 1.75 IN
- Conductor Type: Copper, Aluminum
More Information
Manufacturer Catalog Number
250L2
Weight
2.25
Length
4.31
Width
0.88
Height
1.38
Country of Origin
United States
Made in USA
Yes
Material
6061T-6 Aluminum Alloy
Finish
Tin-Plated
Tang Length
3.09 inches
Tang Width
0.88 inches
Voltage
600 volts
Warranty Length
1 years
