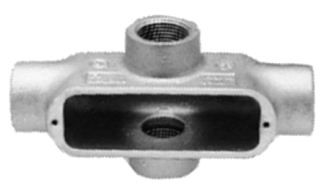

Description
Features
- Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity
- Form 35 Malleable Iron Unilets® are High Tensile Strength and Ductility, High Corrosion Resistance, High Impact and Shock Resistance
- Sizes with Flat Back Design Ideal Where Fitting is Mounted Flat against Surface
- 1/2 to 3 Inch Blank Covers are Domed for Extra Wiring Space
- Rain Tight When a Cover and Gasket are Installed
Additional Information
- Wire Size (3) 4 AWG
- Capacity 15 Cubic Inch
- Enclosure Rating Class I Div 2
- Application Commercial/Industrial, Hazardous Location
- Applicable Standard NEC/CEC, NEMA FB-1
Specifications
- Access Opening: Side
- Configuration: X
- Hub Location: Cross
- Number of Hubs: 4
- Hub Size: 1 Inch
- Size: 3.38 Inch Width x 2.25 Inch Height
- Installation: Threaded
- Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron (Body), Stainless Steel (Cover Screw)
- Form Type: Form 35
- Approval: UL 514A/B, CSA C22.2
- Used On: IMC/Rigid Conduit
Downloads
CatalogInstallation/Operator
Warranty
Other 1
Other 2
Videos
More Information
Manufacturer Catalog Number
X100M
Weight
2.0550
Material
Fiber
Product Size
2.25 inches
