Description
Features
Standard
Specifications
Country of Origin: China
Current / Amperage Rating: 400 A
Width: 2.290 in
Each - Width: 2.290 in
Industry Standard(s): National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Performance: Electrical - Amperage Rating - 400A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Amperage Rating: 400 A
Application: High Ampacity Connections
Color: Blue
Environmental Conditions: Indoor Dry Unless Protected By Additional Means
NEMA Rating: Non-NEMA
Number of Poles: 1-Pole
Number of Wires: 1-Wire
Phase: Single Phase
Special Features: Standard
Standard: National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Type: Receptacle
Wattage: 240000
Wire Size: #4 AWG to #4/0 AWG
Voltage Rating Description: 600V AC/DC
Connectivity: Screw Terminals
Display Size: Standard Sized Product
Nema Rating: Non-NEMA
Number Of Poles: 1-Pole
Number Of Wires: 1-Wire
Style: Female Double Set Screw
Description - Invoice: SINGLEPOLE, 300/400A FEM RCPT, SCREW, BL
Freight Class Code: 06168002
Harmonization Code: 8536698000
Image Actual Or Representative: A
MSDS Flag: No
Replaced Catalog Number: HBL400RTBL
Material - Mounting Hardware: Threaded Thru-Hole
Current Rating: 400 A
Material: Elastomer / Elastomeric
Series: Series 16
Base Unit of Measure: EA
BOX SIZE: 5.200x22.600x11.600 (in)
Carton - Gross Weight per Pack: 8.1 lb.
Carton - Number of Sub Packs: 10
Carton - Pack Description: Carton
Carton - SCC-14 Next Lower Level Sub Pack: 783585112602
Out of stock,
Call 1-866-853-4768 for availability and price.
Most out of stock items can be ordered and are usually available to ship in 1-3 business days. Popup
ULE Group is a national leader in electrical, power, and lighting distribution. For over 25 years our family-owned and New York operated company has been a trustworthy partner of choice for top contractors in the New York Metropolitan area and we have successfully grown our portfolio to include landmark construction projects throughout the United States. Guided by values like integrity and teamwork, ULE Group believes that its best customers are looking for more than just a supplier. They are looking for a problem-solving partner that can help them deliver innovative electrical solutions. ULE Group's superior service and expertise is available nationwide for projects big and small, we’re committed to being the partner that will get the job done.

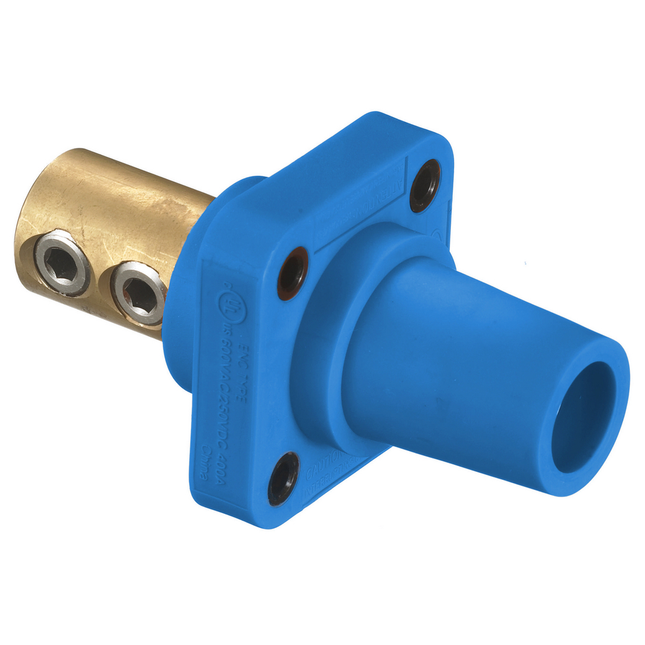

Bryant SKU #379576 Part #HBLFRBLHeavy Duty Products, Single Pole Devices, Industrial Grade, Female, Receptacle, 300/400A 600V AC/DC, Single Conductor, Set Screw, Blue
