Features

• Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.

NEMA

• L21-30R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA: C22.2 No. 42
• NEMA: WD-1 & WD-6
• NOM: 057
• UL: 498
• UL Fed Spec: W-C-596

Electrical Specifications

• Amperage: 30 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Phase: 3-Phase WYE
• Pole: 4
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 120/208 VAC
• Wire: 5

Material Specifications

• Base Material: Nylon
• Body Material: Nylon
• Clamp Nuts: Nickel-Plated Brass
• Color: Black
• Cover Material: Valox 357
• Face Material: Nylon
• Ground Contacts: Brass
• Grounding Screw: Chromated Brass
• Line Contacts: Brass
• Strap Material: Nickel-Plated Brass
• Terminal Clamps: Nickel-Plated Brass
• Terminal Screws: Chromated Brass

Product Features

• Brand: V-0-Max

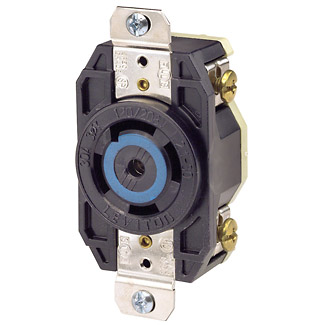

• Device Type: Locking Receptacle
• Warranty: Limited Lifetime Warranty

Environmental Specifications

• Environment: Corrosive
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-8 AWG
• Terminal ID: Marked on Device
• Termination: Back & Side
• Torque Range: 14-16 in-lbs

Warranty

• Warranty: Limited Lifetime Warranty
