Features

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
• Standard

Specifications

• Country of Origin: Puerto Rico
• Current / Amperage Rating: 30 A
• Dimensions: 3.28 in x 1.7 in x 1.31 in
• Width: 1.900 in
• Each - Width: 1.900 in
• Height: 1.31 in
• Industry Standard(s): Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
• Length: 3.28 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 30 A
• Application: Heavy Duty Industrial
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: L8-30R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 3.28 in x 1.7 in x 1.31 in
• Special Features: Standard
• Standard: Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498

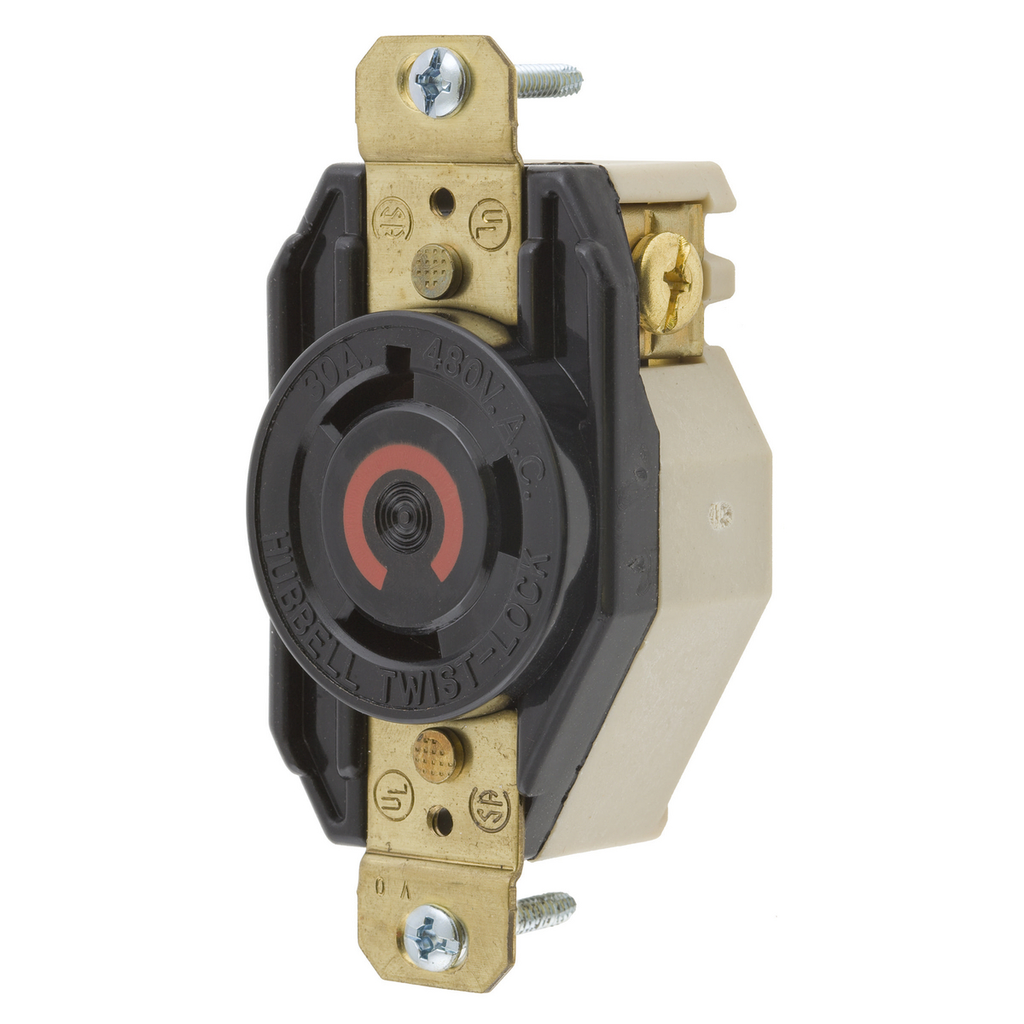

• Type: Single Flush Receptacle
• Voltage Rating: 480 VAC
• Wire Size: #16 AWG to #8 AWG
• Voltage Rating Description: 480 VAC
• Connectivity: Back and Side Wired
• Display Size: Standard Sized Product
• Nema Rating: L8-30R
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Weight: 0.25 lb.
• Class Code: A08
• Description - Invoice: LKG RCPT, 30A 480V, 2P3W, L8-30R, BK
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 2640A
• Sub Class Code: A08A110
• Material - Mounting Hardware: Screw Mounting
• Current Rating: 30 A
• Material: Nylon
• Base Unit of Measure: EA
• BOX SIZE: 3.500x9.900x4.600 (in)
• Carton - Gross Weight per Pack: 2.9 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585236063
• Carton - Total Units: 10 EA
• Case - Total Units: 30 EA
• Case Weight: 5.785 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet Height: 44.800 in
• Pallet Length: 48.000 in
• Pallet Weight: 802.200 lb.
• Pallet Width: 40.000 in

Certifications

• EU RoHS Indicator: Yes
