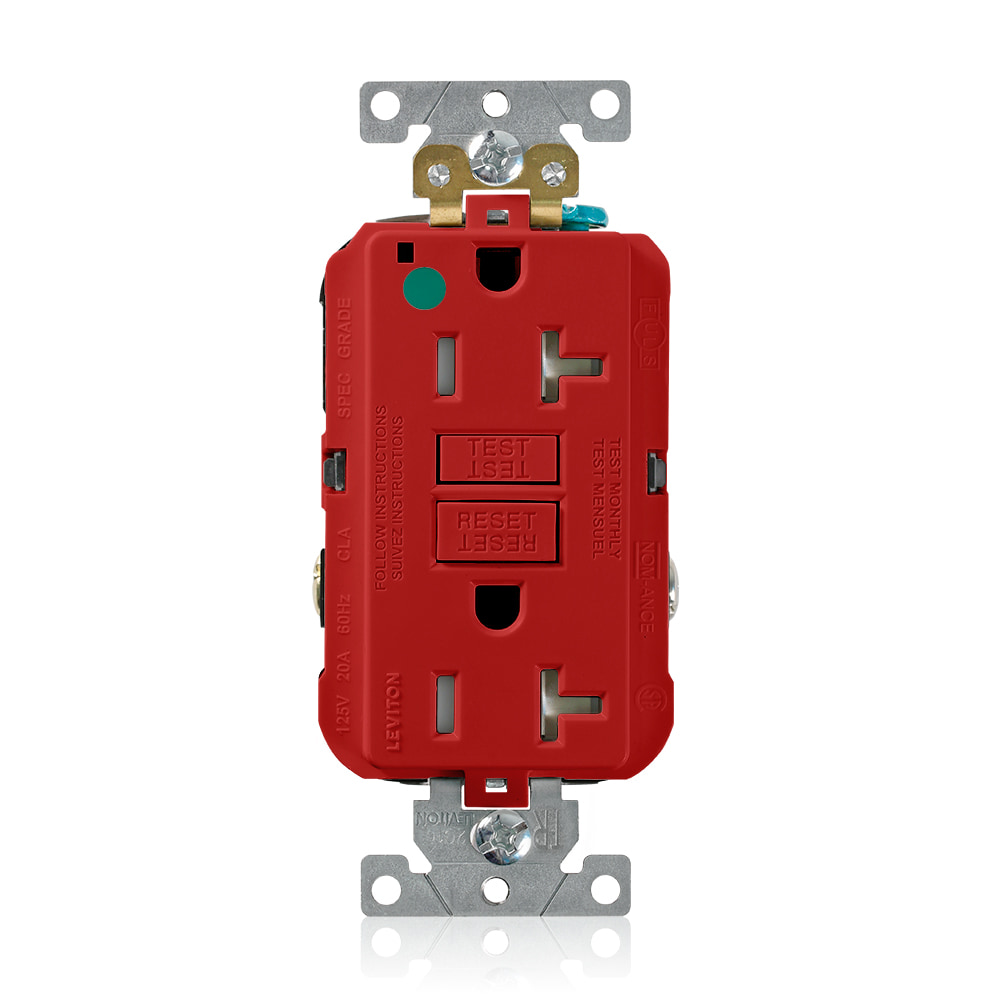

Name: 20 Amp SmartlockPro® GFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant
Brand: Leviton
SKU: 31218
Price: 39.08 USD
Availability: InStock

20 Amp SmartlockPro® GFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant

Leviton
SKU #31218Part #GFTR2-HGRUPC 078477723784

20 Amp SmartlockPro® GFCI Receptacle/Outlet, Hospital Grade, Tamper-Resistant

Leviton
SKU #31218Part #GFTR2-HGRUPC 078477723784

Product form

11 in stock

Total Price: $39.08 per each Sold in increments of 1 each

Description

Features

NEMA

5-20R

Patents

CA2425810
CA2427366
CA2515035
CA2621644
CA2677283
CA2865659
MX251584
MX269232
MX276626
MX302458
MX308495
MX315596
US7355117
US7697252
US7737809
US7820909
US7868719
US8004804
US8242362
US8547126
US8587914
US8599522
US9053886
US9077091

Color Variations

Brown

Specifications

Country of Origin: China
RoHS Compliant: False

Standards and Certifications

ANSI: C-73
Applicable Standards: UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Certification/Listing: UL, CSA, NOM-ANCE
NEMA: WD-1 & WD-6

Electrical Specifications

Amperage: 20 A
Grounding: Self-Grounding
Pole: 2
Short Circuit Current Rating: 10kA
Trip Level: Class A, 5mA plus or minus 1mA
Voltage: 125 VAC
Wire: 3

AC Horsepower Ratings

At Rated Voltage: 1 HP

Material Specifications

Body Material: Polycarbonate
Face Material: PBT
Ground Clips: Brass
Grounding Screw: Plated Steel
Line Contacts: Brass
Shutter Mechanism: Delrin® Acetal
Strap Material: Galvanized Steel
Terminal Clamp: Brass
Terminal Screws: Plated Steel

Product Features

Brand: SmartlockPro
Color: Red
Device Type: Duplex Receptacle Outlet
Feature: Wallplate Included|Tamper-Resistant|Power Indication
Function: GFCI
Grade: Extra Heavy-Duty Hospital Grade

Environmental Specifications

Flammability: Rated V-0 per UL 94
Operating Temperature: -35C to +66C

Mechanical Specifications

Product ID: Ratings are permenantly marked on device
Screw Terminal Torque: 14-18 in-lbs
Terminal Accom.: 14-10 AWG solid or stranded
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire

Warranty

Warranty: 2-Year Limited

Downloads

More Information

Manufacturer Catalog Number

GFTR2-HGR

Weight

4.3900

Country of Origin

China

Color

Red

Amperage

20 amperes

Body Material

Polycarbonate

Device Type

Duplex Receptacle Outlet

Enclosure

WD-6

Face Material

PBT

Family Brand Name

SmartlockPro

Flammability Class

Rated V-0 Per UL 94

Grade

Extra Heavy-Duty Hospital

Grounding

Self-Grounding

Nema

WD-1

Number Of Poles

Number Of Wires

Operating Temperature

-35 degrees celsius

Warranty Length

2 years
