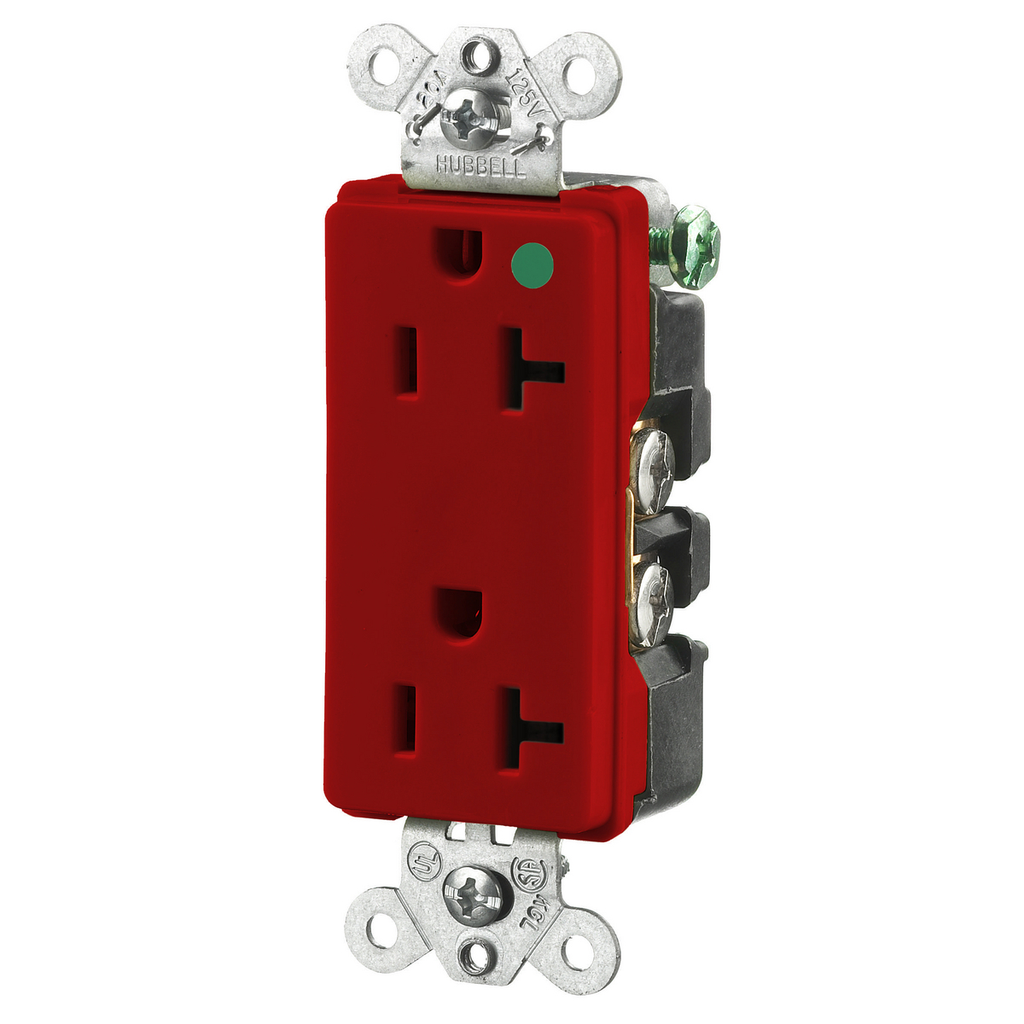

Features

• Aesthetic Style Line® decorator design
• High impact resistant face
• Triple wipe contacts
• Standard, Self Grounding

Specifications

• Country of Origin: Puerto Rico
• Current / Amperage Rating: 20 A
• Dimensions: 3.28 in x 1.36 in x 1.03 in
• Width: 1.900 in
• Each - Width: 1.900 in
• Height: 1.03 in
• Horsepower - Maximum: 1
• Industry Standard(s): CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
• Length: 3.28 in
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - TOP: UL 94 V-2 BASE: UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
• Standards - RoHS Compliance Status: CM
• Amperage Rating: 20 A
• Application: Style Line Decorator Hospital Grade
• Color: Red
• Dielectric Strength: Withstands 2,000V minimum
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• NEMA Rating: 5-20R
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Phase: Single Phase
• Size: 3.28 in x 1.36 in x 1.03 in
• Special Features: Standard, Self Grounding
• Standard: CSA Certified, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
• Type: Duplex Receptacle
• Voltage Rating: 125 VAC
• Wattage: 2500 W
• Wire Size: #12 AWG to #10 AWG
• Voltage Rating Description: 125 V
• Connectivity: Back and Side Wired Screw Terminals
• Display Size: Standard Sized Product
• Nema Rating: 5-20R
• Number Of Poles: 2-Pole
• Number Of Wires: 3-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Style: Style Line Decorator;Smooth Face
• Weight: 0.25 lb.
• Class Code: A04
• Description - Invoice: STYLE HG DUP RCPT, 20A 125V, 5-20R, RD
• Freight Class Code: 06168002
• Harmonization Code: 8536698000
• Image Actual Or Representative: A
• MSDS Flag: No
• Replaced Catalog Number: 2182R
• Sub Class Code: A04A040
• Material - Mounting Hardware: Screw Mounting
• Current Rating: 20 A
• Material: Nylon
• Series: Hospital Grade
• Base Unit of Measure: EA
• BOX SIZE: 3.600x9.900x4.600 (in)
• Carton - Gross Weight per Pack: 2.550 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 783585060729
• Carton - Total Units: 10 EA
• Case - Total Units: 100 EA
• Case Weight: 26.900 lb.
• Each - Pack Description: Each
• Lowest Level UOM: Each

Certifications

• EU RoHS Indicator: Yes
