Features

• Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
• On initial power up, tests the GFCI within 3 seconds
• Auto-monitoring exceeds the UL requirement
• Auto adapts and shifts to more frequent testing if potential problem is detected
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
• Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
• Electronics are designed to minimize any false triggers

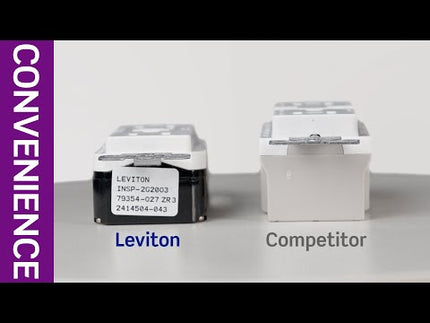

• Reduced depth makes it easier to install in any electrical box, even shallow ones
• Terminals allow for easy wiring options – back and side wire capable
• External back wire clamps provide visual indication of proper wire seating
• Withstands high torque and resists wire pullout
• Standard brass self-grounding clip
• Trip threshold meets or exceeds UL requirements for tripping time
• Improved immunity to high-frequency noise reduces nuisance tripping
• Advanced electronics design provides superior resistance to electrical surges and over-voltages

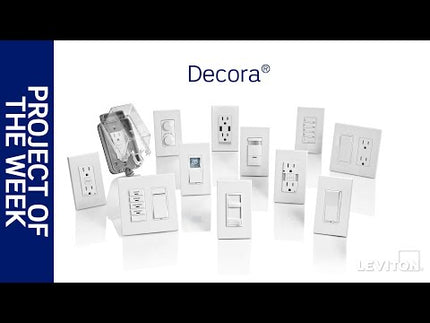

• Compatible with all Decora devices and wallplates; available in select Decora colors
• UL Fed Spec WC-596 rated
• SAFE - Delivers continuous ground fault protection
• SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
• SIMPLE - Status indicator light provides simple, intuitive feedback

NEMA

• 5-20R

Color Variations

• Brown

Specifications

• Country of Origin: China
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: Yes
• CSA-C22.2 No. 144.1-06: File LR-57811
• Fed Spec WC-596: Yes
• MIL-SPEC: A-A-55459-SB
• NOM: Yes
• UL 943: File E48380
• UL498: Yes

Mechanical Specifications

• Amperage: 20 A
• Body Material: Polycarbonate
• Brand: SmartlockPro
• Color: Red
• Face Material: Thermoplastic
• Feature: Self-Test
• Fed Spec WC-596: Yes
• Grade: Residential/Commercial Specification Grade
• Grounding: Self-Grounding
• NEMA: 5-20R
• Notes: w/ Wallplate
• Pole: 2
• Product ID: Ratings are permanently marked on device
• Standards and Certifications: UL/CSA, NEMA WD6
• Strap Material: Galvanized Steel
• Tamper Resistant: No
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs
• Trip Level: Class A, 5mA plus or minus 1mA
• Type: Standard
• Voltage: 125 VAC
• Warranty: 2-Year Limited
• Wire: 3

Product Features

• Wallplate: Included

AC Horsepower Ratings

• At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• Short Circuit Current Rating: 10KA
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental Specifications

• Body Material: Polycarbonate
• Clamps: Brass
• Face Material: Thermoplastic
• Grounding Screw: Plated Steel
• Line Contacts: Brass Triple-Wipe .031 Thick
• Notes: w/ Wallplate
• Operating Temperature: -35C to +66C
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel

Material Specifications

• Body Material: Polycarbonate
• Clamps: Brass
• Face Material: Thermoplastic
• Grounding Screw: Plated Steel
• Line Contacts: Brass Triple-Wipe .031 Thick
• Notes: w/ Wallplate
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel

Electrical Specifications

• Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
• Operating Temperature: -35C to +66C
• Short Circuit Current Rating: 10KA
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
