Zinc grounding connector for 1/2" knockout. #8 to #2 stranded and solid copper and aluminum grounding electrode.
SKU: #72503
Part: #GC50
UPC: 018997097385
Zinc grounding connector for 1/2" knockout. #8 to #2 stranded and solid copper and aluminum grounding electrode.
SKU: #72503
Part: #GC50
UPC: 018997097385
Description

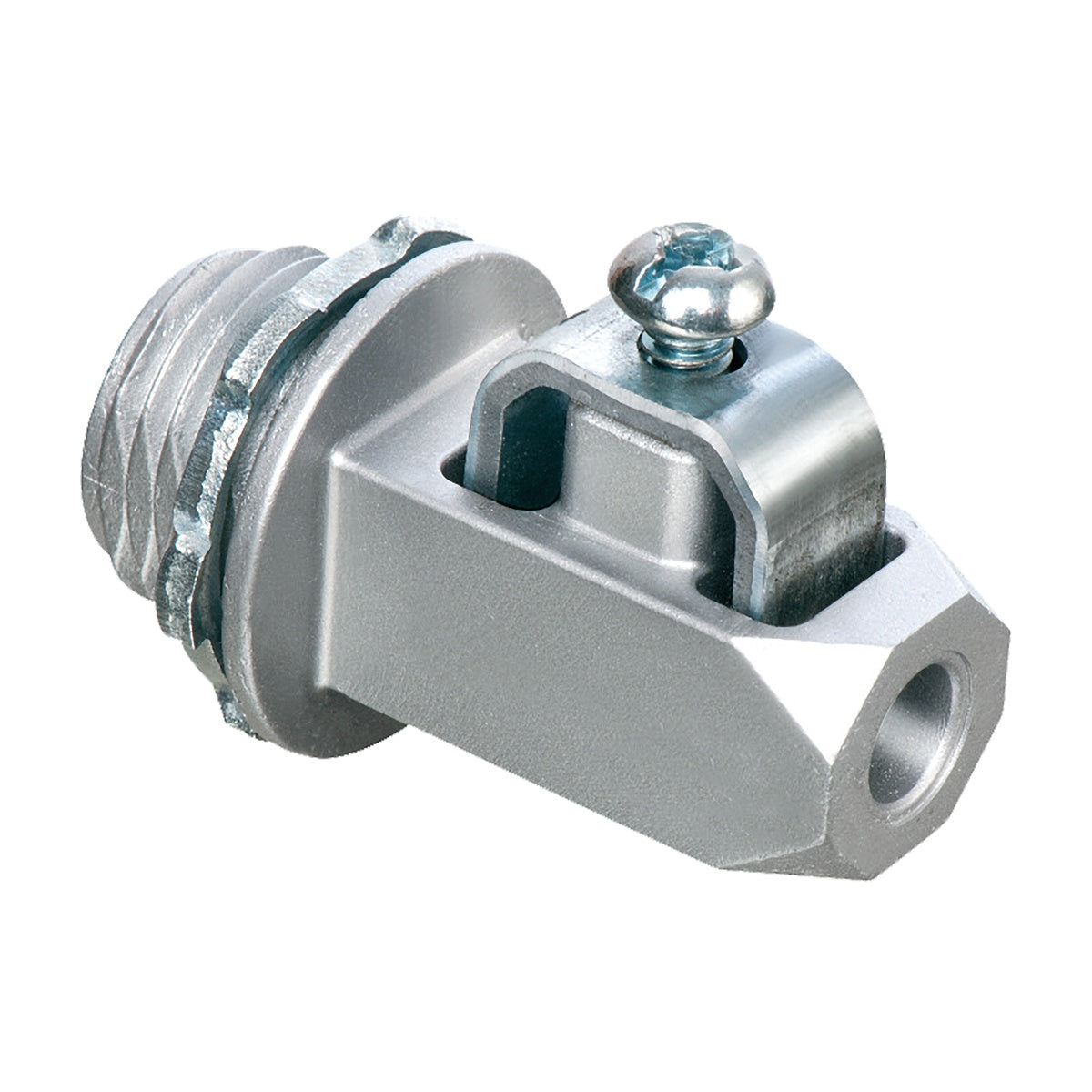

Zinc Grounding Connector for 1/2" Knockout – Grounding Electrode Connector
This zinc grounding connector is designed for terminating grounding electrode conductors in electrical installations. It installs easily from inside or outside a metal panel or enclosure through a 1/2" knockout without requiring modifications to the box. Suitable for use by electrical distributors and switchgear suppliers, it accommodates stranded and solid copper and aluminum grounding conductors, providing reliable strain relief and ensuring proper grounding in lighting solutions and wire and cable systems.
Specifications
- Material: Zinc
- Color: Silver
- Manufacturer Part #: GC50
- Cable Range: #8 to #2 stranded and solid copper and aluminum
- Knockout Size: 1/2"
- Weight: 0.1270 lbs
- Dimensions: Length 1.845", Width 0.562", Height 1.109"
- UPC: 018997097385
Features
- Installs inside or outside metal panels or enclosures through existing knockouts
- No modification needed to boxes or enclosures for installation
- Provides excellent strain relief for grounding conductors
- Listed for use with stranded and solid copper and aluminum wire
- Accommodates a wide cable range, reducing inventory needs
- Suitable for bonding and grounding separately derived systems
- Patented design (Patent pending, E225971)
- Cost-effective solution with half the cost of comparable connectors
