Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Concrete tight when taped.
SKU: #73661
Part: #SG3838
UPC: 018997173836
Zinc die-cast, 1/2" knockout saddle-type connector with spring set screw for securing aluminum and steel cable. Snaps into knockout with external spring steel clip. Concrete tight when taped.
SKU: #73661
Part: #SG3838
UPC: 018997173836
Description

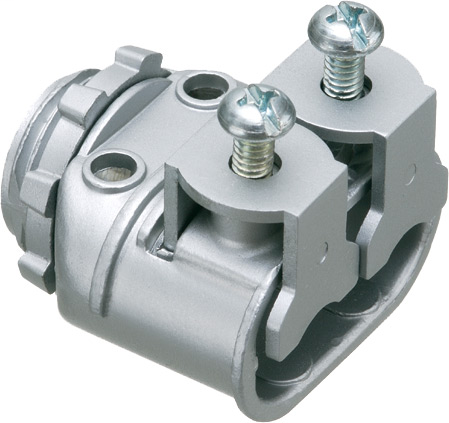

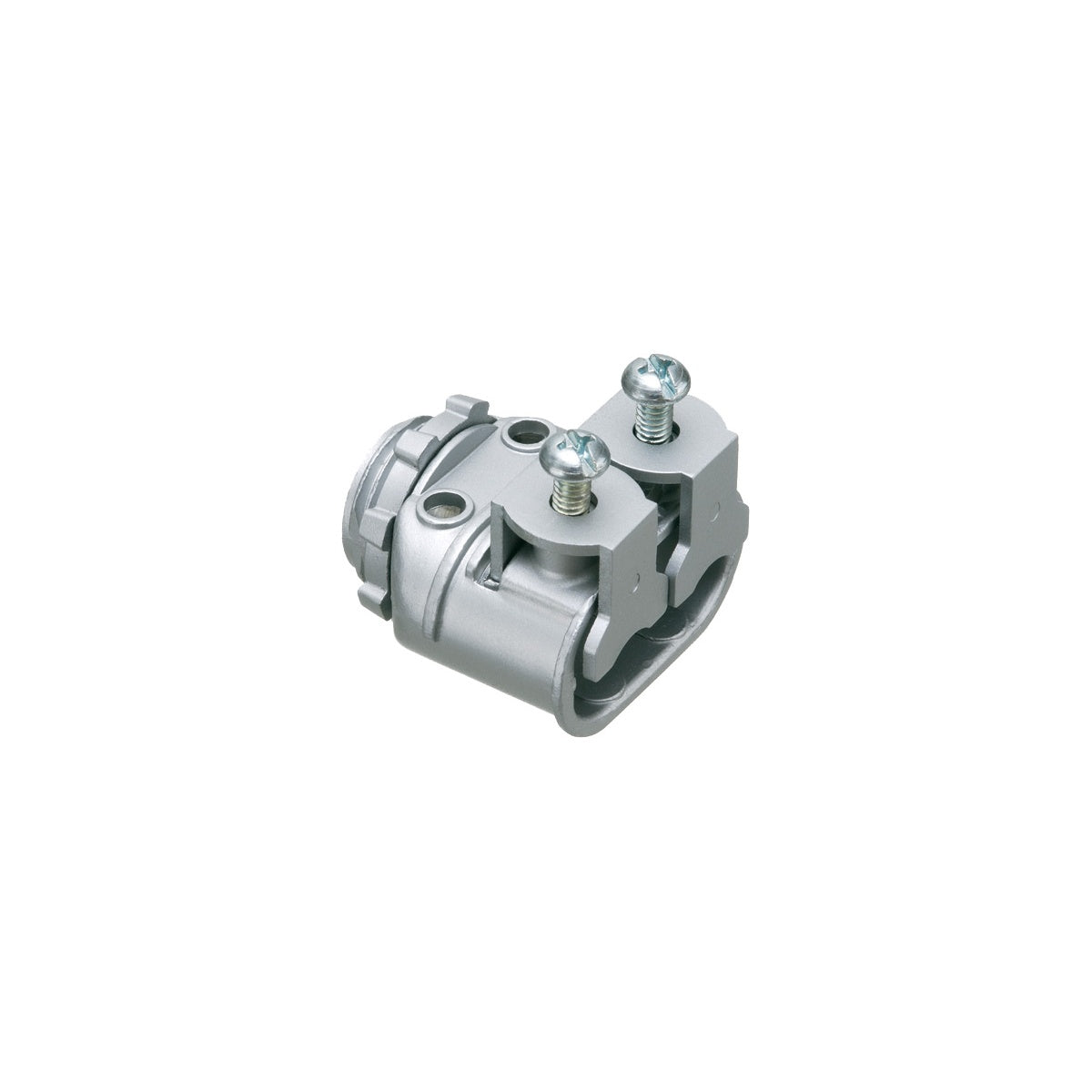

Zinc Die-Cast 1/2" Knockout Saddle-Type Connector for Aluminum and Steel Cable
This zinc die-cast saddle-type connector is designed for securing aluminum and steel Flex, AC, AC90, MCI, and MCI-A cables. It features a spring set screw and an external spring steel clip that snaps into a 1/2-inch knockout, providing a secure and concrete-tight connection when taped. Suitable for electrical distributors and switchgear suppliers requiring reliable wire and cable connectors in lighting solutions and electrical installations.
Specifications
- Material: Zinc
- Color: Silver
- Knockout Size: 1/2 inches
- Product Weight: 3.26 lbs
- Manufacturer: Arlington Industries
- Manufacturer Part #: SG3838
- UPC: 018997173836
- Dimensions (inches): A - 0.452, B - 1.526, C - 0.780
- Cable Range: Two cables, each .445 to .610 inches diameter
Features
- Independent securing of two different size cables
- Spring set screw for secure cable attachment
- Snaps into knockout with external spring steel clip for easy installation
- Concrete-tight when taped for durable and moisture-resistant connections
- Compatible with aluminum and steel Flex, AC, AC90, MCI, and MCI-A cables
