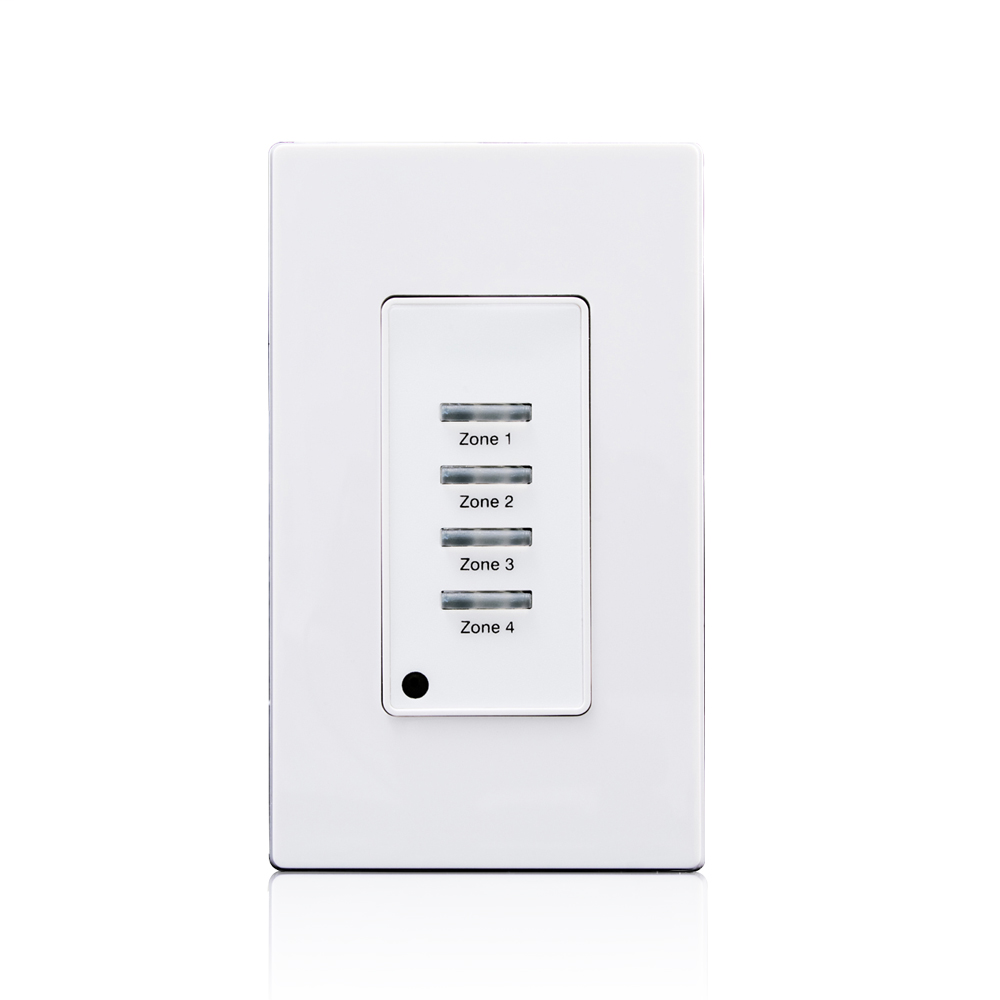

Z-MAX® Digital Pushbutton Station - Lighting Control Switch

The Z-MAX® Digital Pushbutton Station by Leviton is a 4-button, 1-gang wall-mounted control switch designed for lighting control applications. It serves as an interface for digital lighting systems, suitable for integration with relay cabinets and dimming systems. This device is ideal for electrical distributors and switchgear suppliers looking to provide precise, network-addressable control solutions for commercial lighting environments.

Specifications

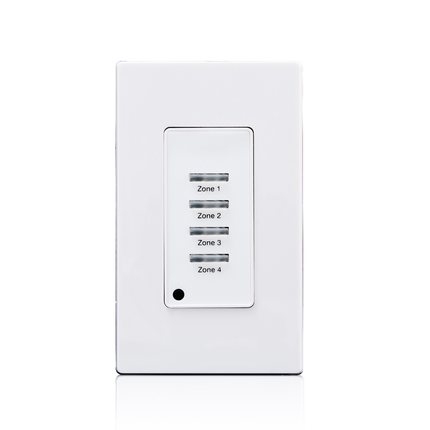

• Product Name: Z-MAX® Digital Pushbutton Station, 04 Button, 1 Gang, White
• Manufacturer: Leviton
• Manufacturer Part #: ZMDSW-4W
• Color: White
• Product Weight: 1.8125 lbs
• UPC: 078477235485

Features

• Four individual pushbuttons labeled for zone control (Zone 1 to Zone 4)
• Compact 1-gang size for standard electrical back boxes
• Compatible with Luma-Net® digital lighting control networks
• Designed for horizontal screw mounting in 1-1/2" deep back boxes (minimum 35mm preferred)
• White color finish for seamless integration with typical commercial interiors
• Supports network addressing with unique ID assignment for scalable lighting control systems
• Low power consumption compatible with 24 VDC digital control systems

Downloads & Links

• Instruction Sheet - Z-MAX Digital Switches
• Instruction Sheet - Z-MAX Digital Switches - French
• Product Specification and Data Sheet - Z-MAX Digital Switches
• Instruction Sheet - Z-MAX Digital Switches - Spanish
