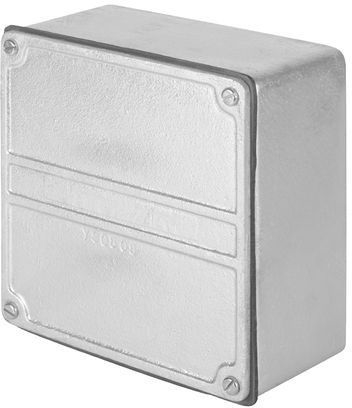

YS-080804 Junction Box - Cast Iron Electrical Junction Box

The O-Z/Gedney‚Ñ¢ YS-080804 junction box is a durable, rain-tight, watertight, and dust-tight cast iron enclosure designed for surface mounting. It serves as a protective housing for electrical devices and connections, safeguarding personnel from accidental contact and protecting enclosed components from environmental factors. Suitable for indoor and outdoor applications, including areas subject to rain, dripping, splashing, or hose-directed water, this junction box is ideal for use by electrical distributors and switchgear suppliers requiring reliable wire and cable protection and lighting solutions infrastructure.

Specifications

• Material: Iron
• Finish: Hot-Dipped Galvanized
• Mounting Type: Surface
• Dimensions (WxH): 8 in x 4 in
• Product Weight: 15.05 lbs
• UL Listed: E24824
• UL Standards: UL 514A, UL 50, UL 50E
• CSA Certified: 020945
• CSA Standards: C22.2 No. 18.1, 94.1, 94.2, 25

Features

• Cast iron construction for strength and durability
• Hot dip galvanized finish for corrosion resistance
• Neoprene gasket between cover and box ensures watertight seal
• Standard mounting lugs for secure surface installation
• Post in each corner to support cover; conduit entrances must account for corner posts
• Wide selection of sizes and locations for drilled-and-tapped and slip-hole conduit entrances
• Suitable for use in environments exposed to rain, dripping, splashing, or hose-directed water
• Listed and certified to meet NEC/CEC and NEMA/CSA Type 1, 2, 3, 3R, 3S, 4, 5, 12, 12K, 13 standards
